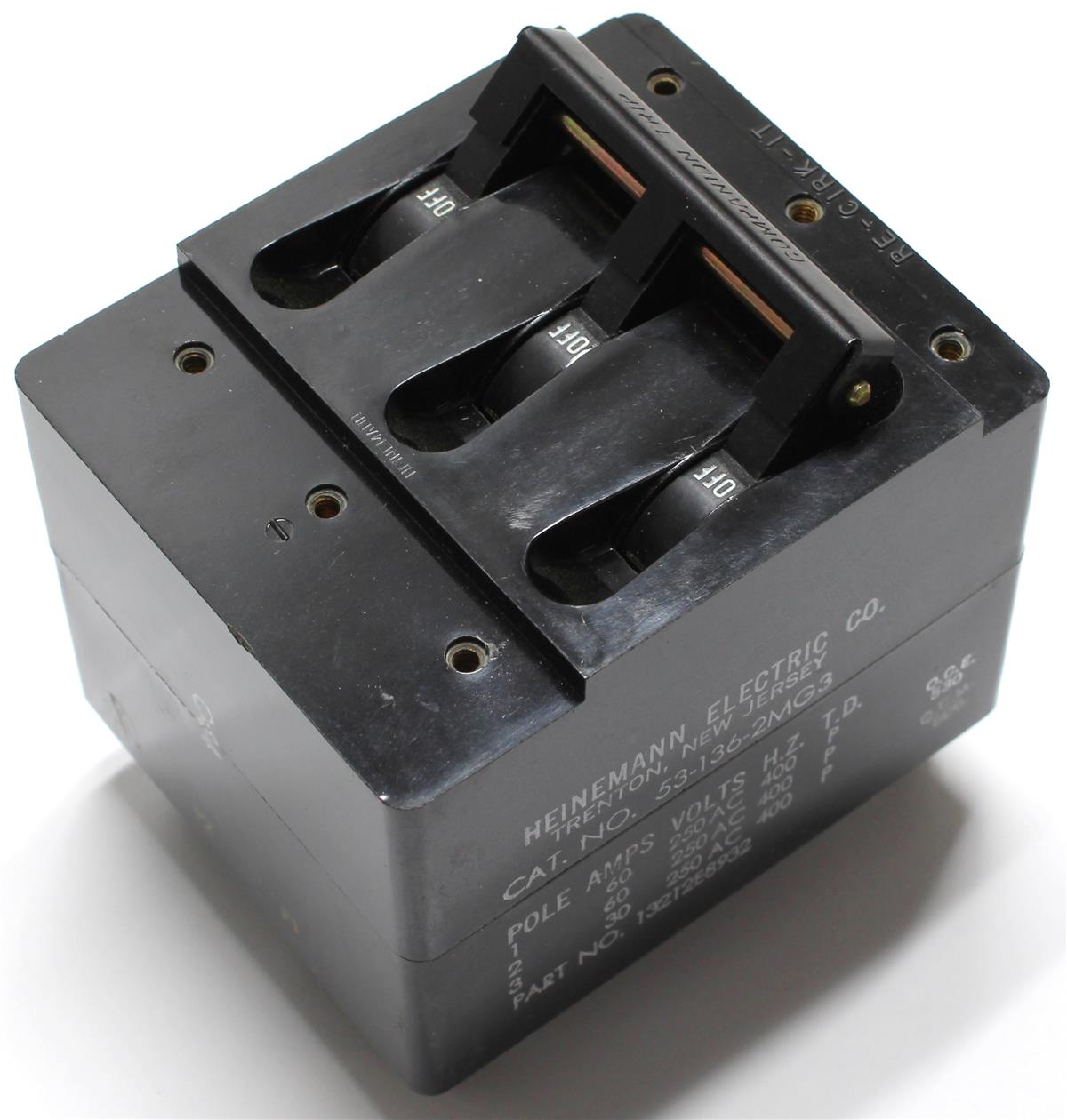

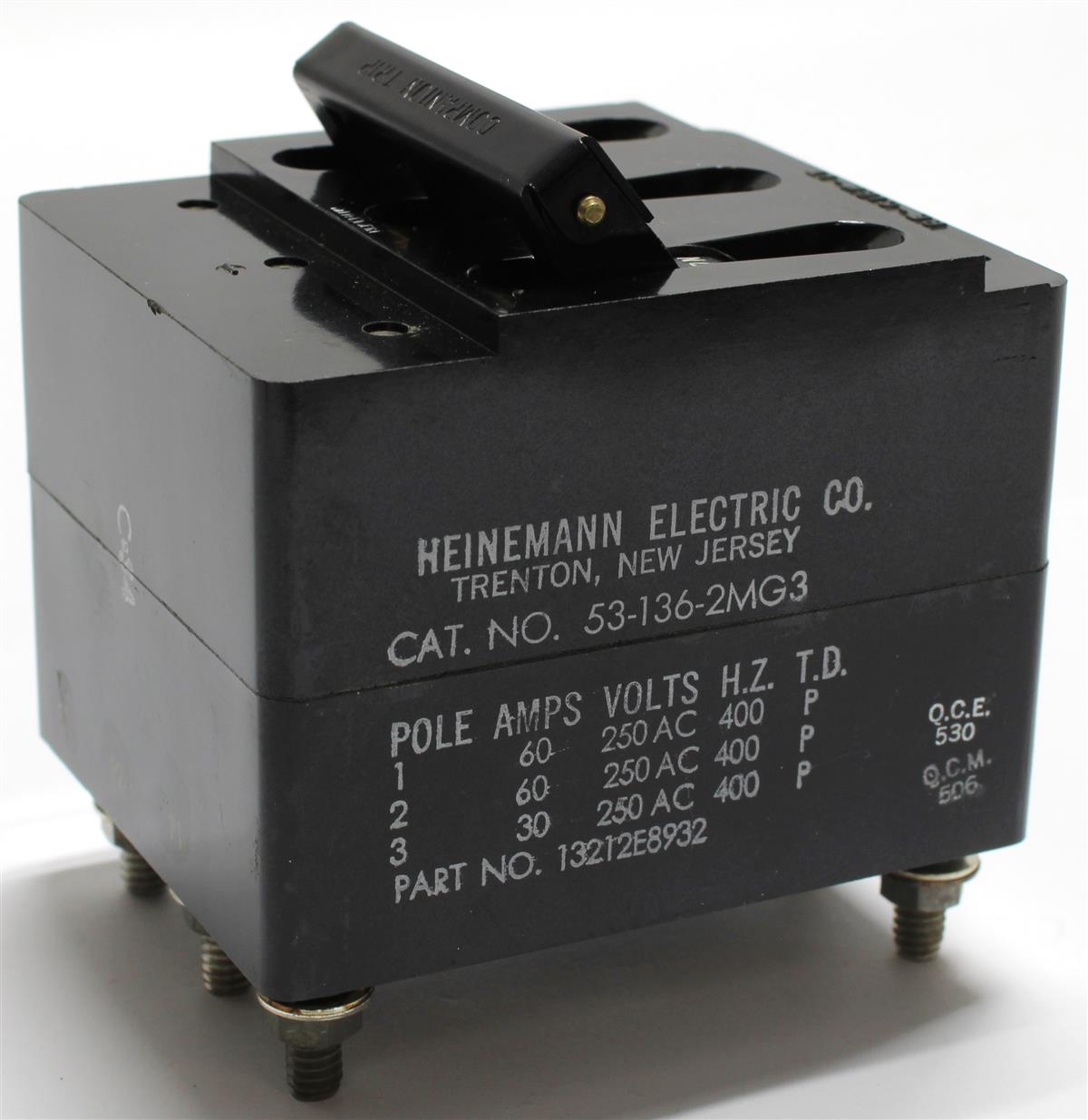

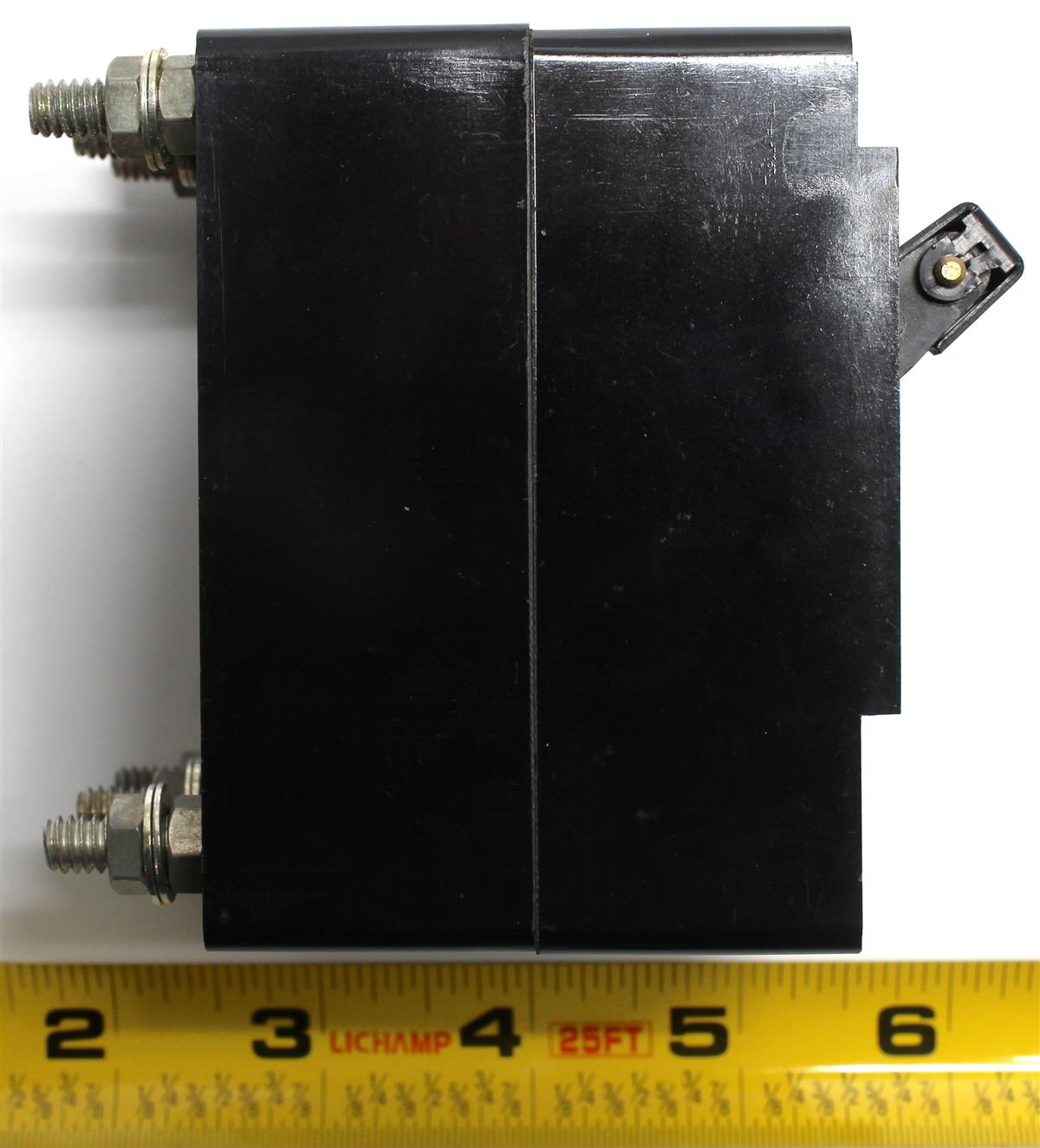

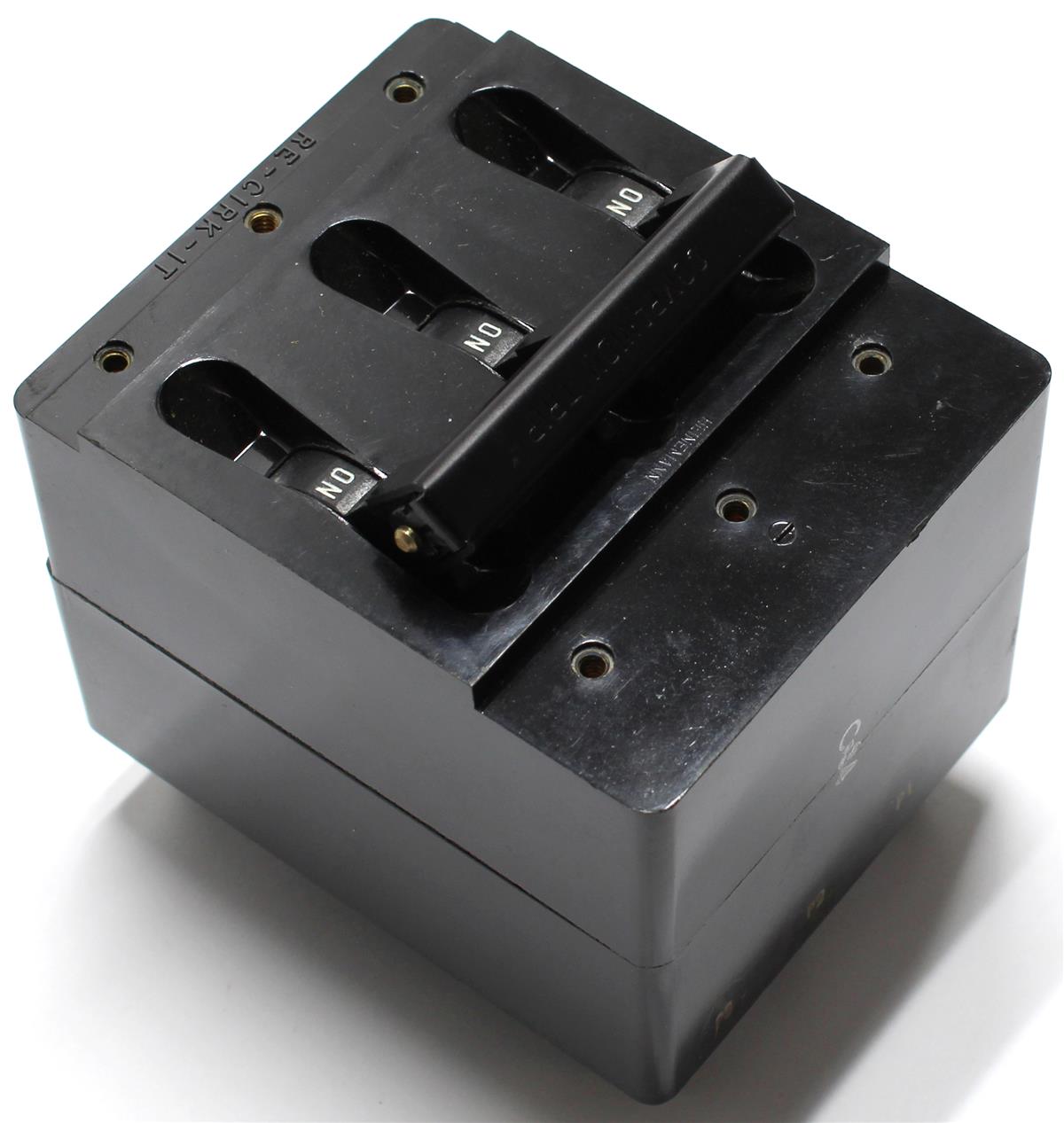

Circuit Breaker Military Standard Gasoline Engine 2A042 5KW
- Body Style - Multipole-Multiple Actuator Type
- Body Length - 3.709 Inches Minimum And 3.042 Inches Minimum And 3.062 Inches Maximum
- Center To Center Distance Between Terminals Parallel to Length - 3.053 Inches Minimum And 3.073 Inches Maximum
- Center To Center Distance Between Terminals Parallel to Width - 1.021 Inches Minimum And 1.041 Inches Maximum
- Distance Between Centerlines of Mounting Facilities Parallel to Body Length - 2.740 Inches Minimum And 2.760 Inches Maximum
- Distance Between Centerlines of Mounting Facilities Parallel to Body Width - 1.021 Inches Minimum And 1.041 Inches Maximum
- Boss Height - 0.146 Inches Minimum And 0.166 Inches Maximum
- Mounting Surface to Terminal End Distance - 3.239 Inches Nominal
- Pole Quantity - 3
- Arc Quenching Method - Magnetic Blowout
- Mounting Facility Type and Quantity - 6 Threaded Hole

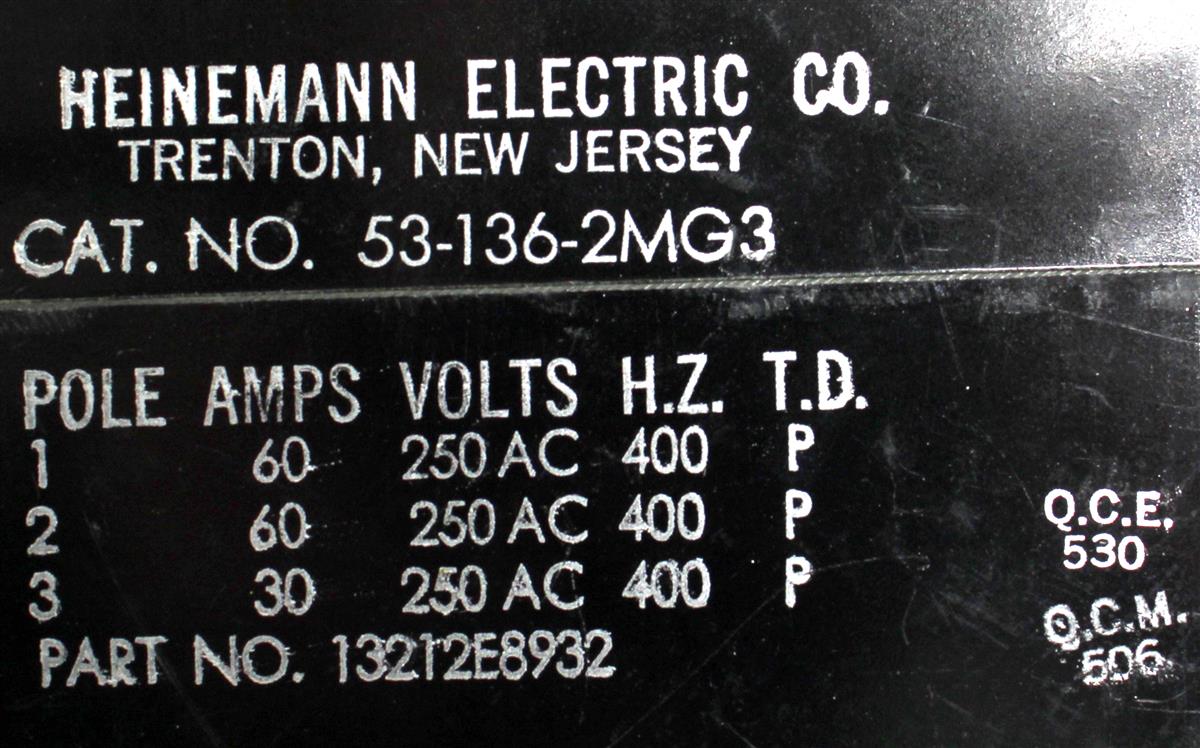

- Maximum Continuous Load Current Rating Per Pole - 30.0 Amperes Ac Third Location
- Maximum Continuous Load Current Rating Per Pole - 60.0 Amperes Ac First Location
- Maximum Continuous Load Current Rating Per Pole - 60.0 Amperes Ac Second Location
- Operating Voltage Type and Rating Per Pole in Volts - 250.0 Ac All Locations
- Maximum Interrupting Capacity Current Type and Rating Per Pole in Amps - 1500.0 Ac All Locations
- Circuit Protection Type - Overcurrent All Locations
- Trip Release Method Magnetic-Hydraulic - All Locations
- Trip Release Characteristic Instantaneous - All Locations
- Ultimate Trip Rating of Continuous Current Rating Per Pole in Percent - 125.0 All Locations
- Reset Method - Manual

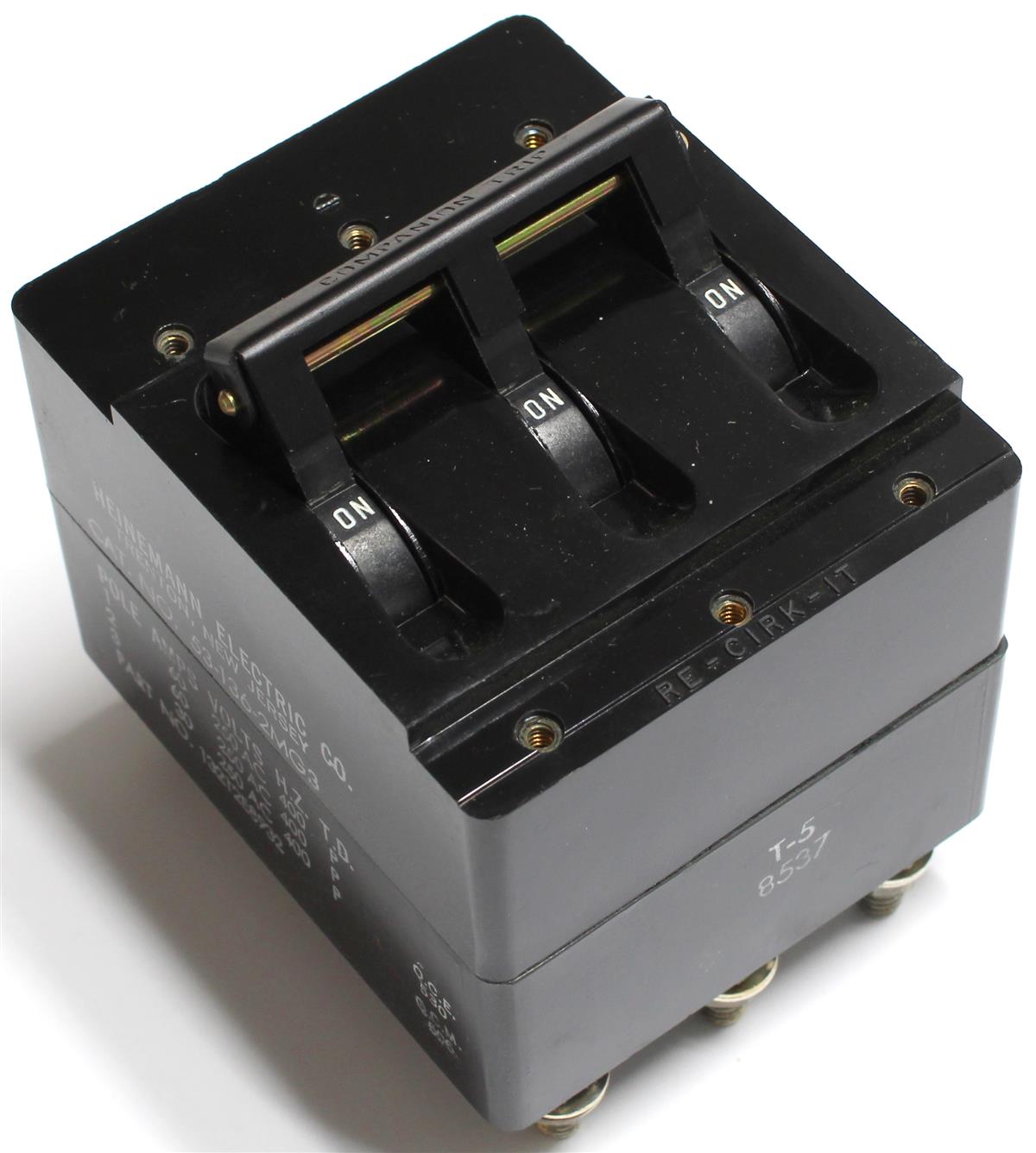

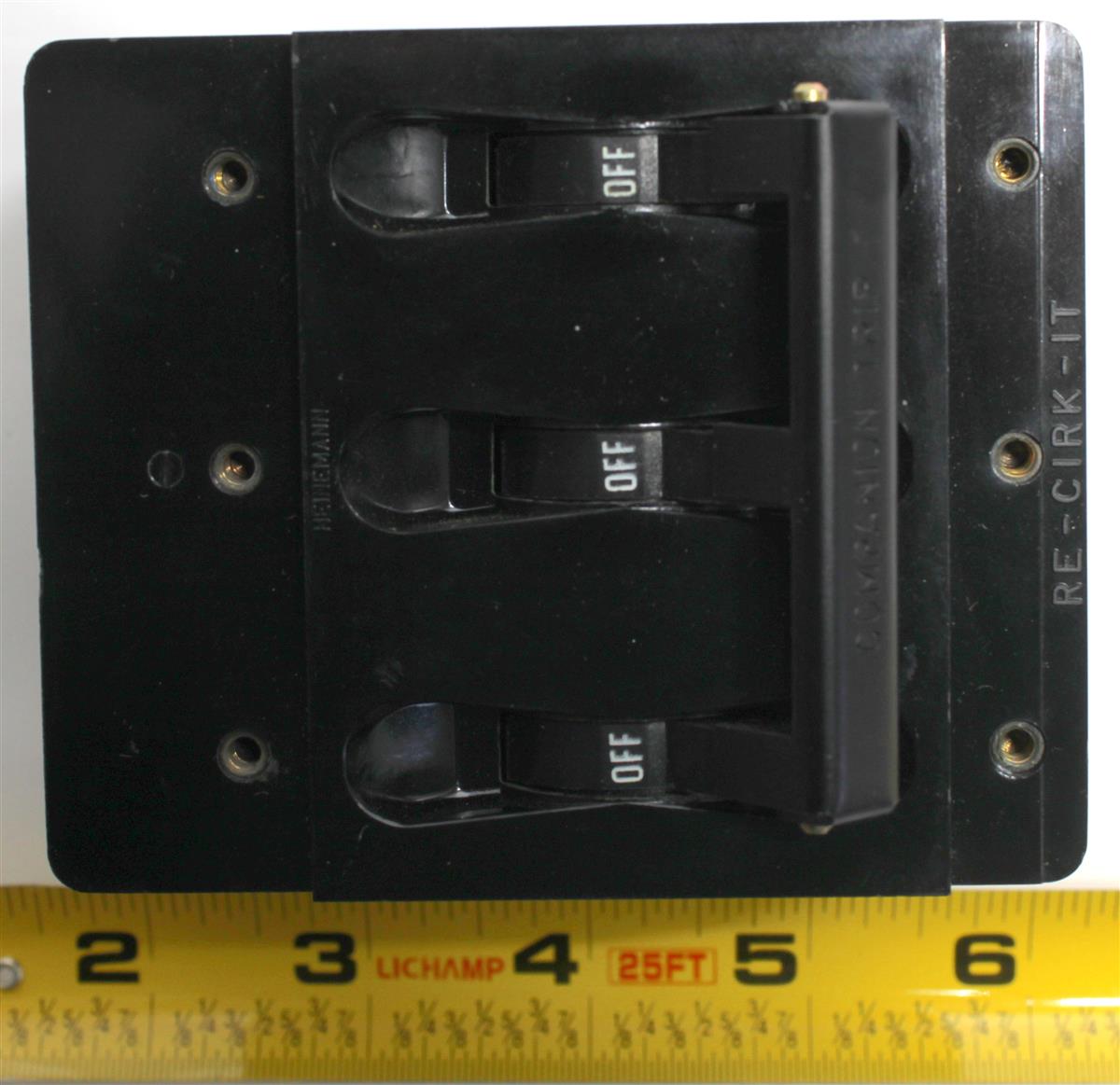

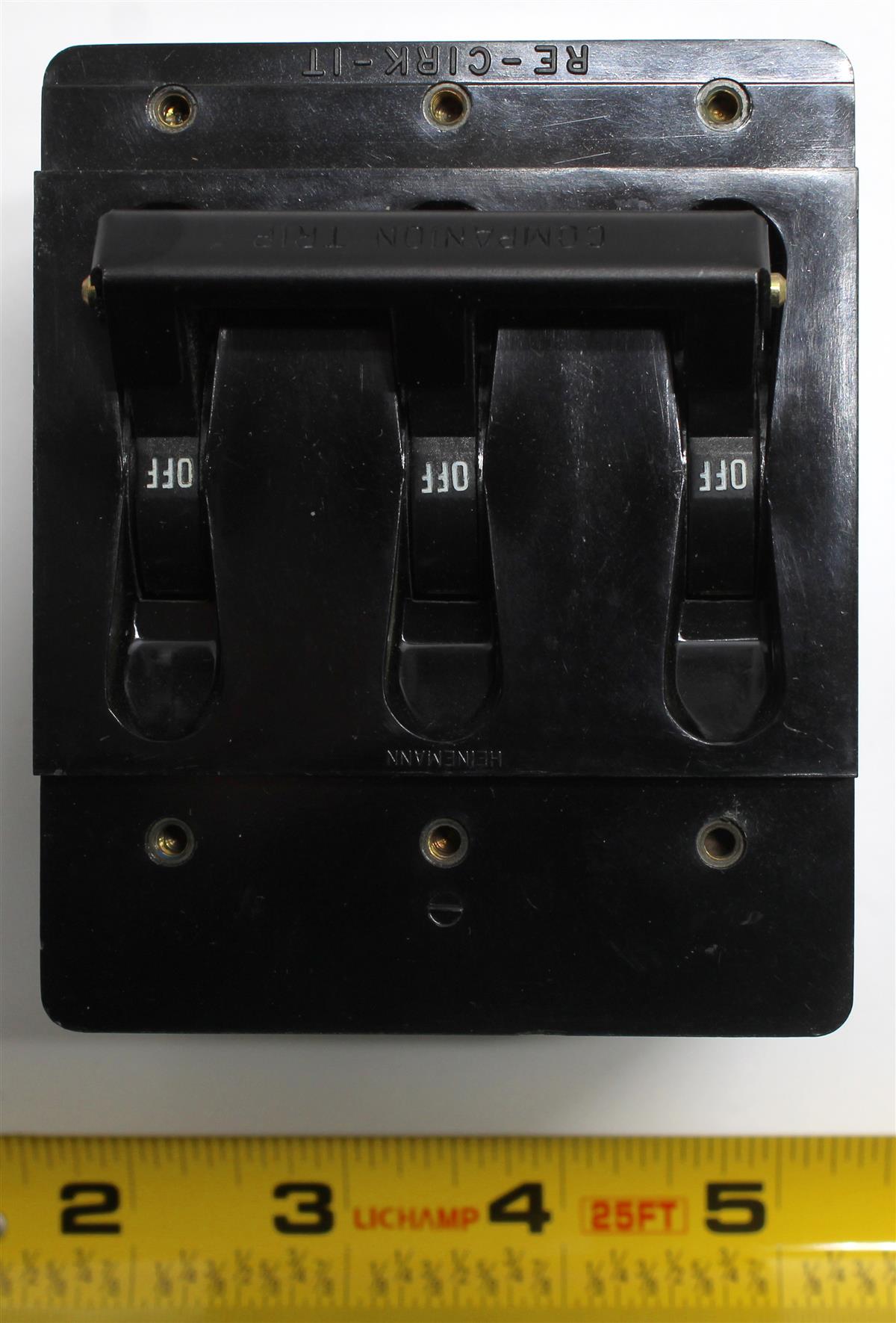

- Manual Actuator Type and Quantity - 3 Toggle
- Nominal Thread Size - 0.138 Inches
- Enclosure Protection Type for Which Designed - Fungus Resistant and Moisture Resistant
- Case Material - Plastic
- Frequency In Hertz - 400.0 All Locations

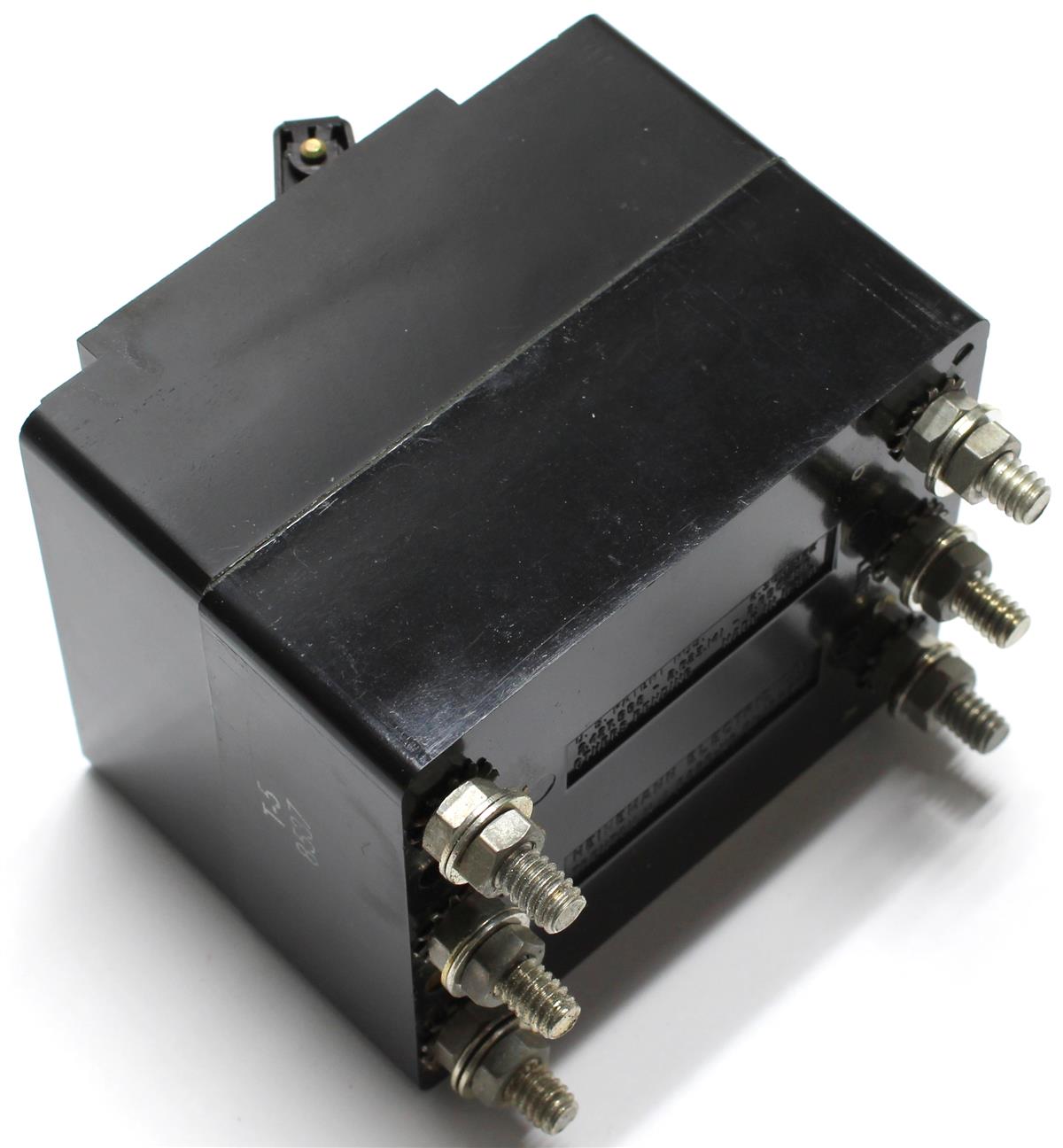

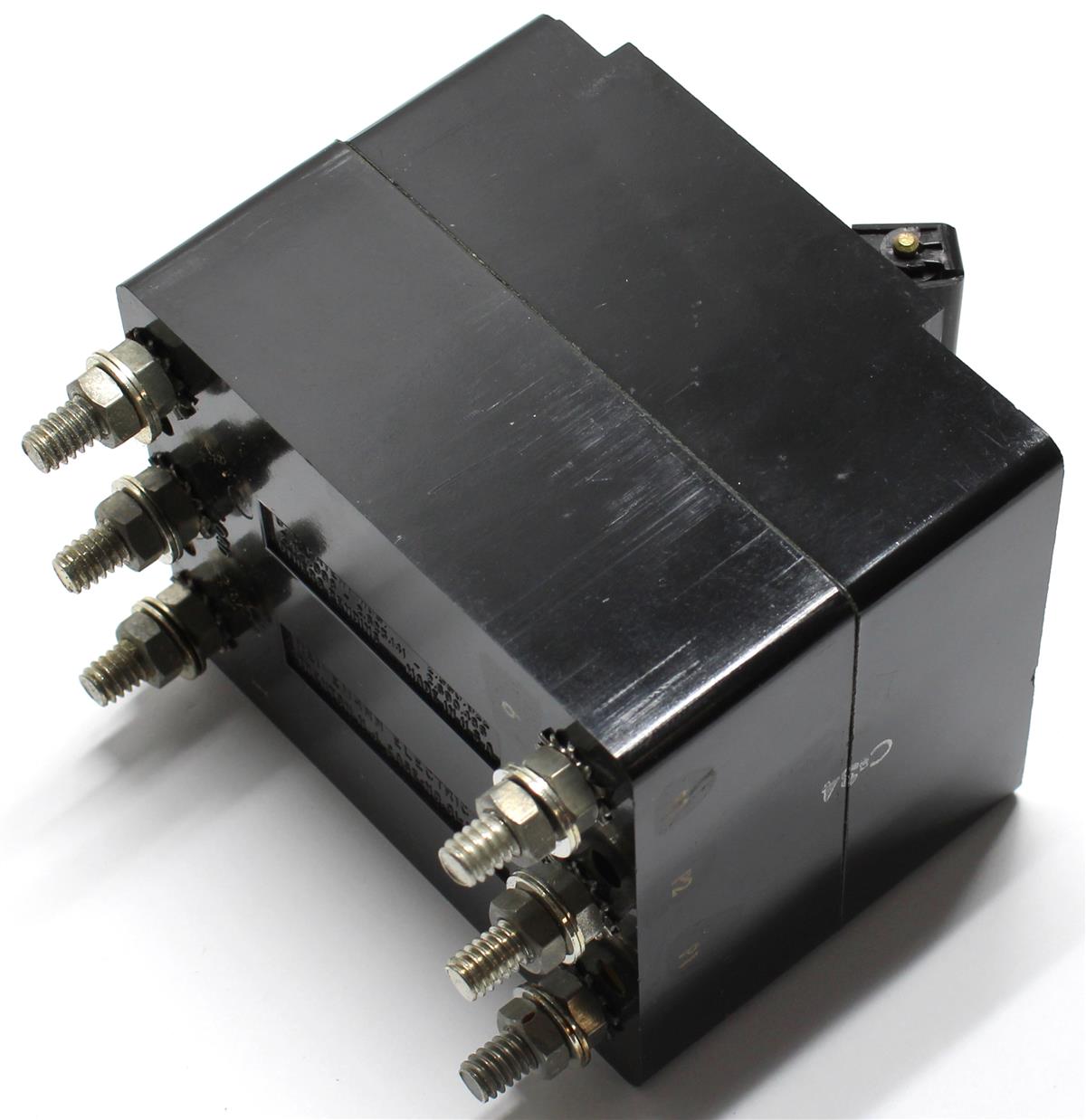

- Terminal Type and Quantity - 6 Threaded Stud
Click Here for Circuit Breaker 55 Amp 32 DC Heinemann 52-137-1MG3 2 Pole Gen Set 5 KW
Click Here for Circuit Breaker 3 Pole 3KW MEP Generator
Click Here for Circuit Breaker Military Standard Gasoline Engine for Gen-Set
Fits
Gen-Set Model 2A042 - 5 KW Generator Gen-Set
MEP-017A - 60 HZ - Gasoline Engine Driven
MEP-002A - 60 HZ - Diesel Engine Driven
MEP-022A - 400 HZ - Gasoline Engine Driven
