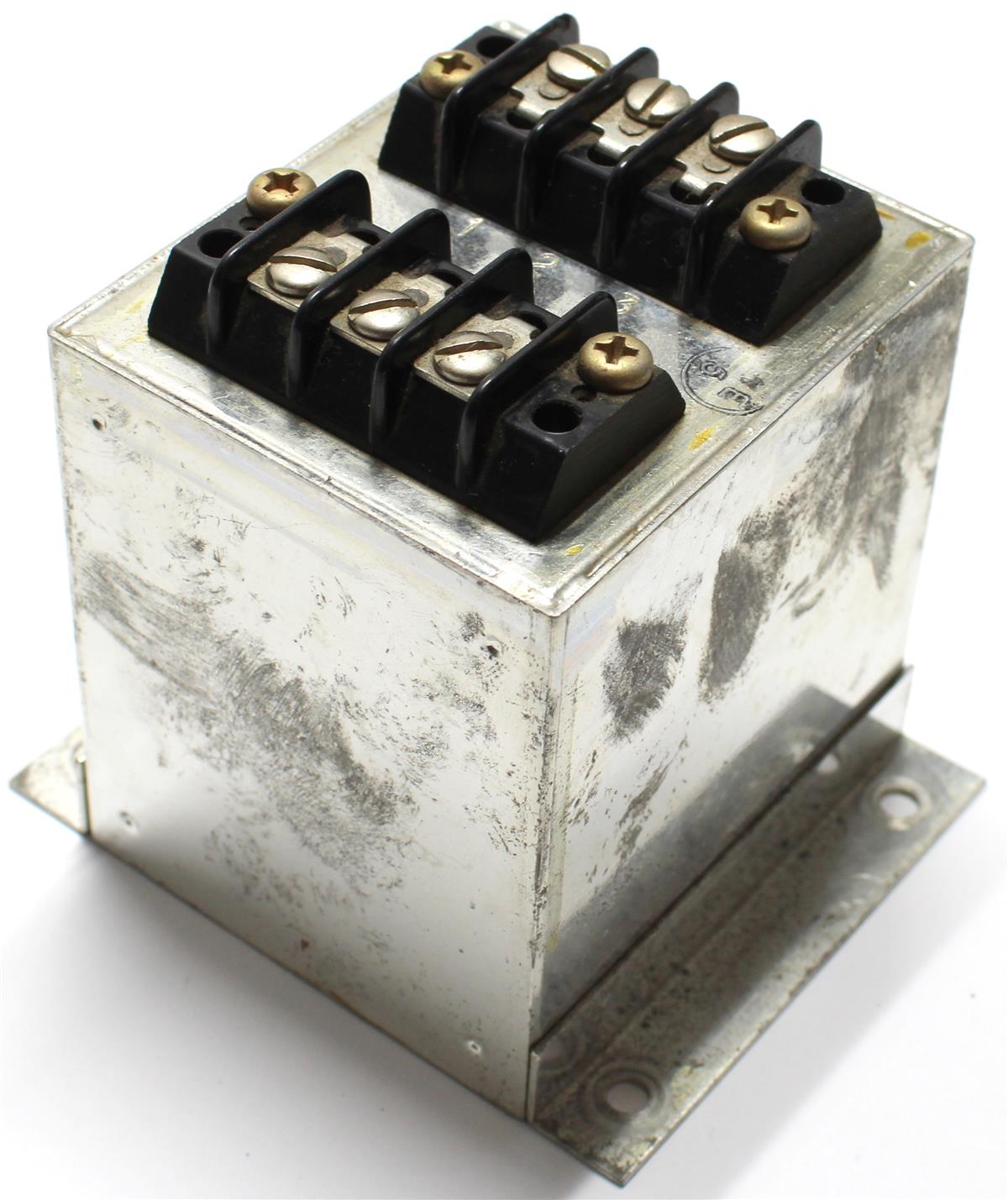

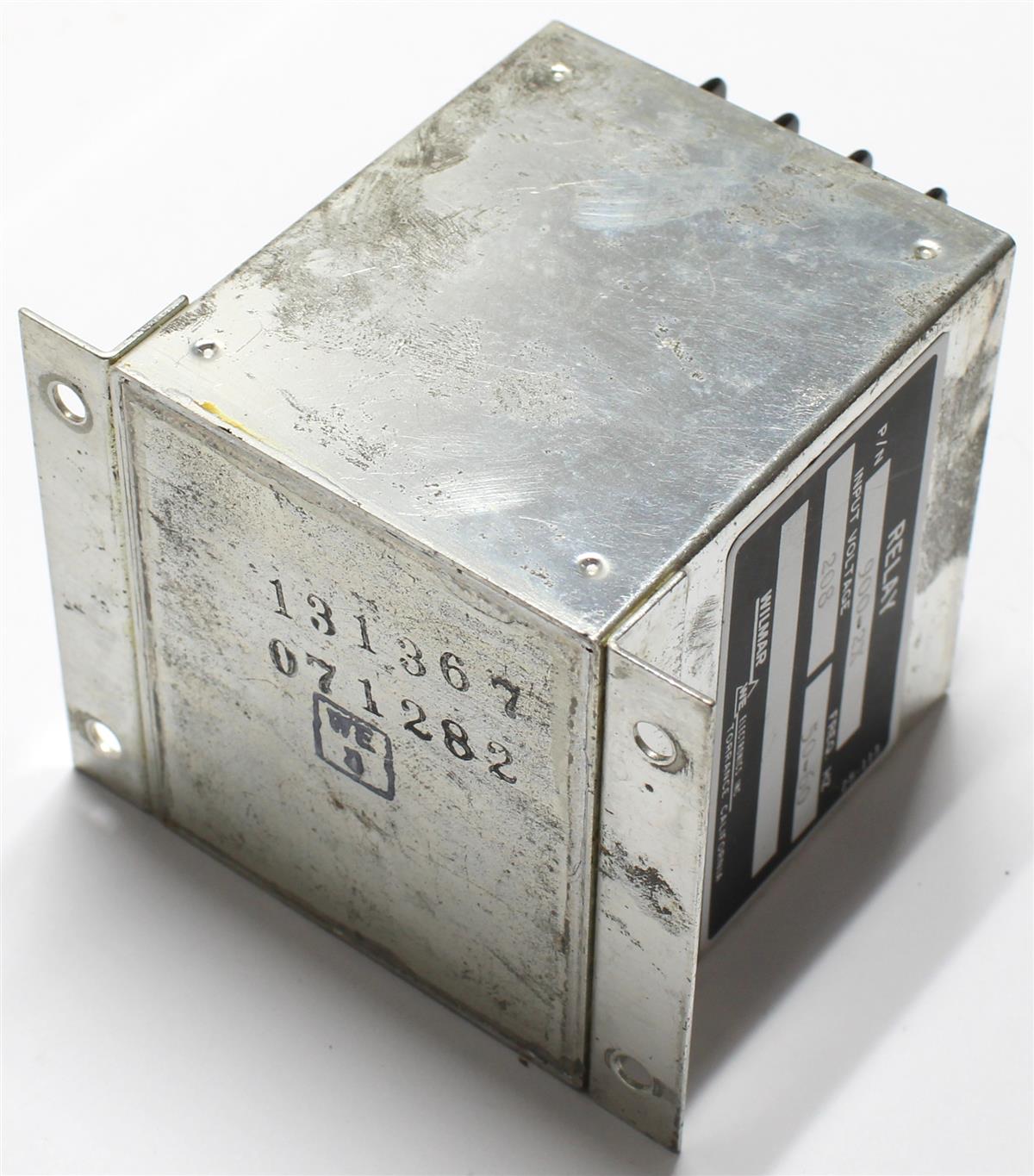

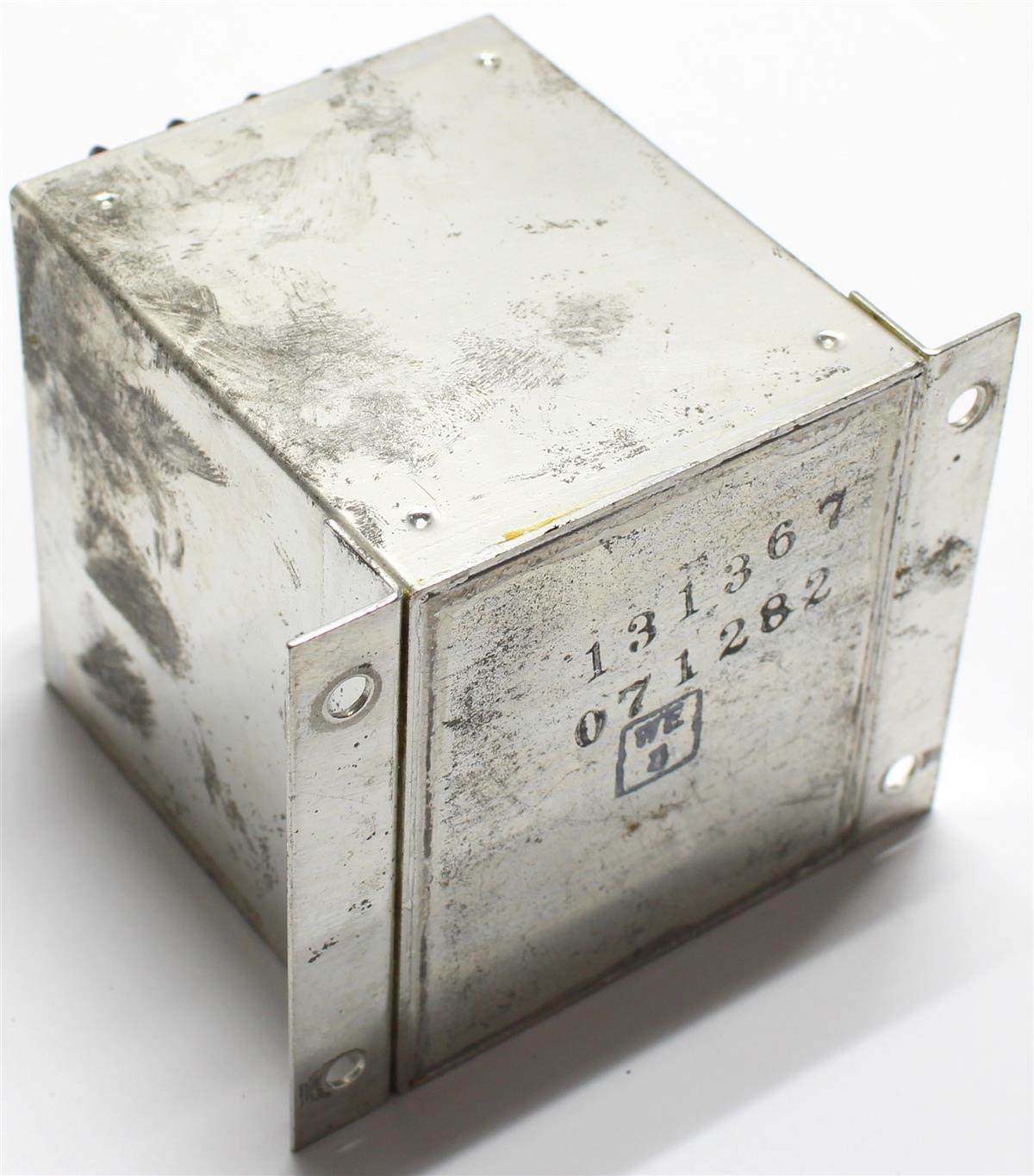

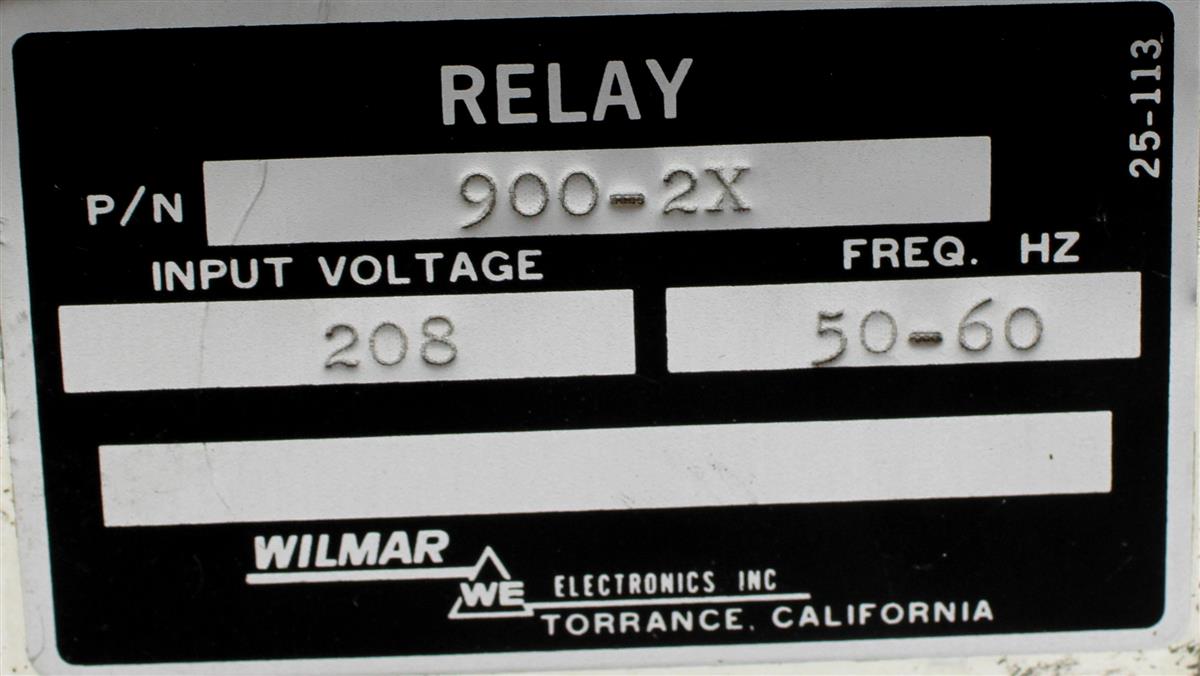

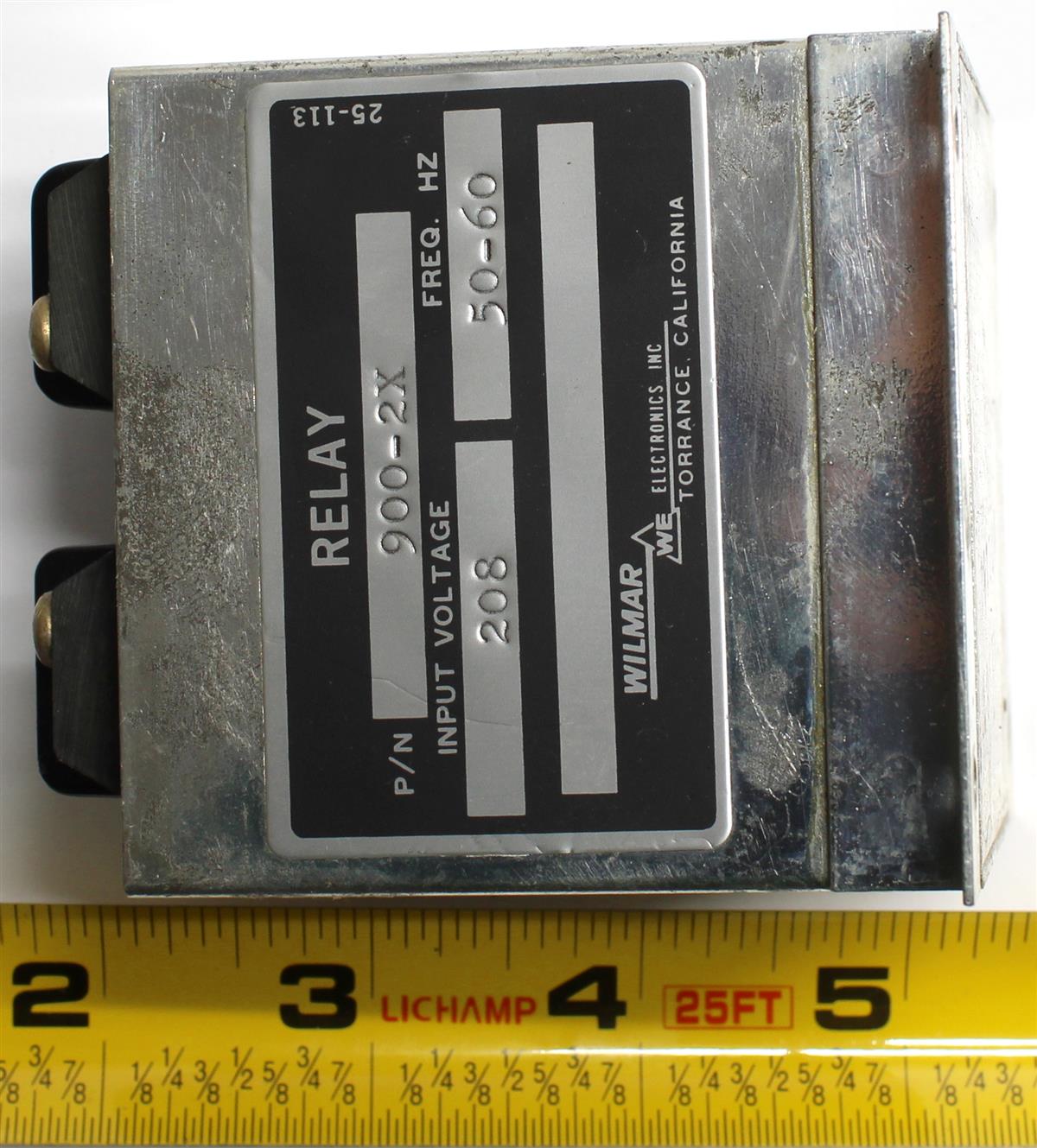

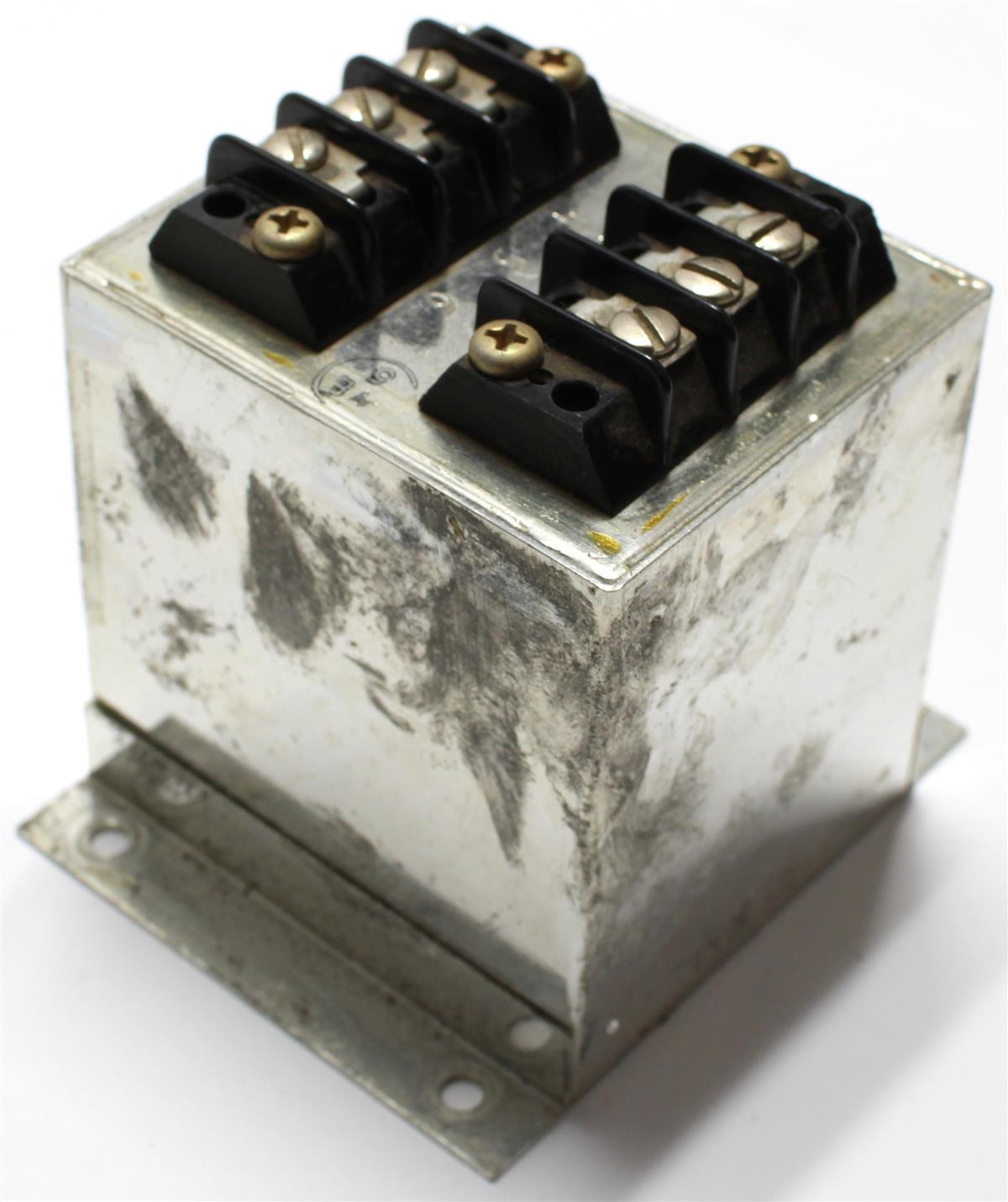

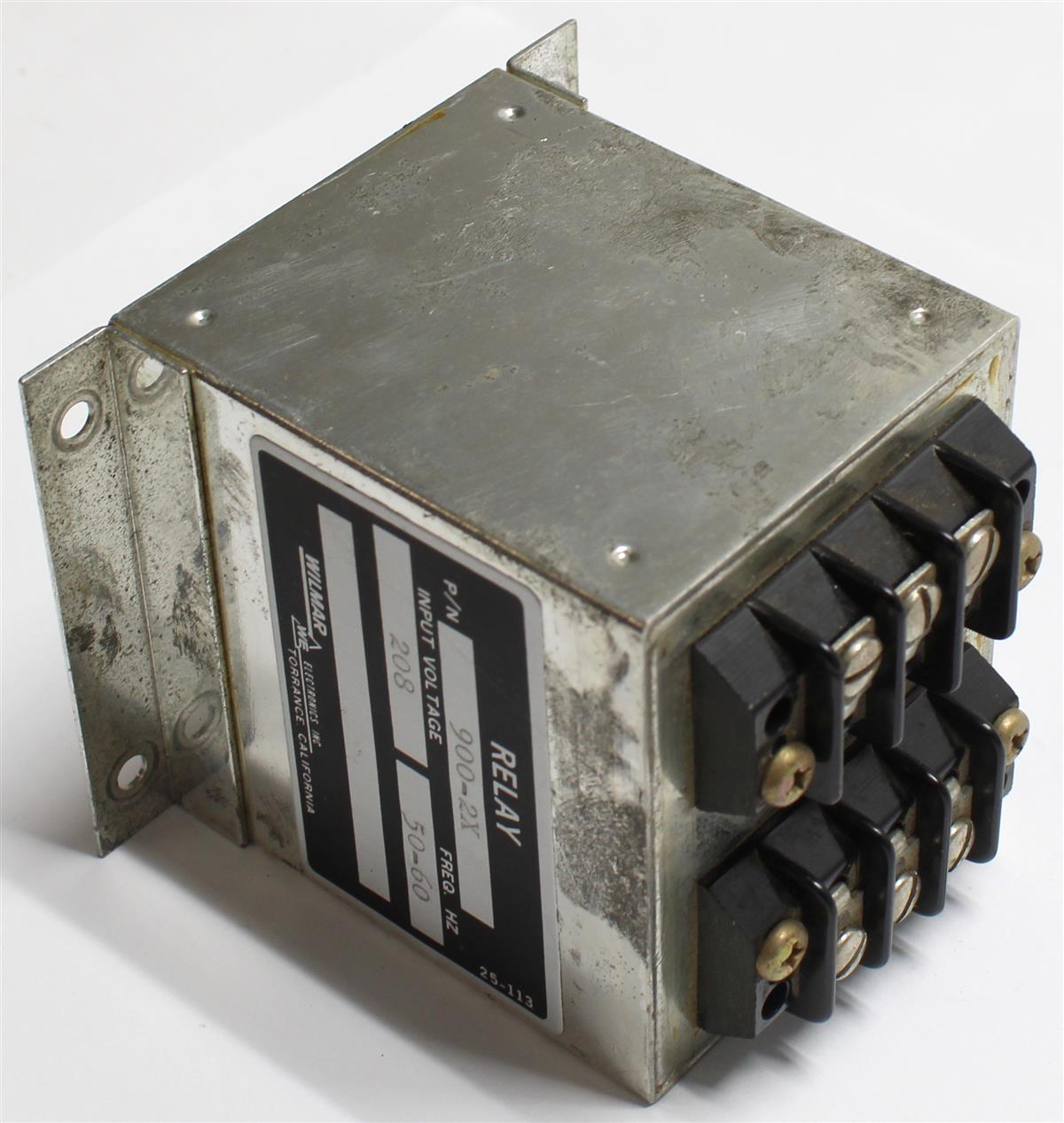

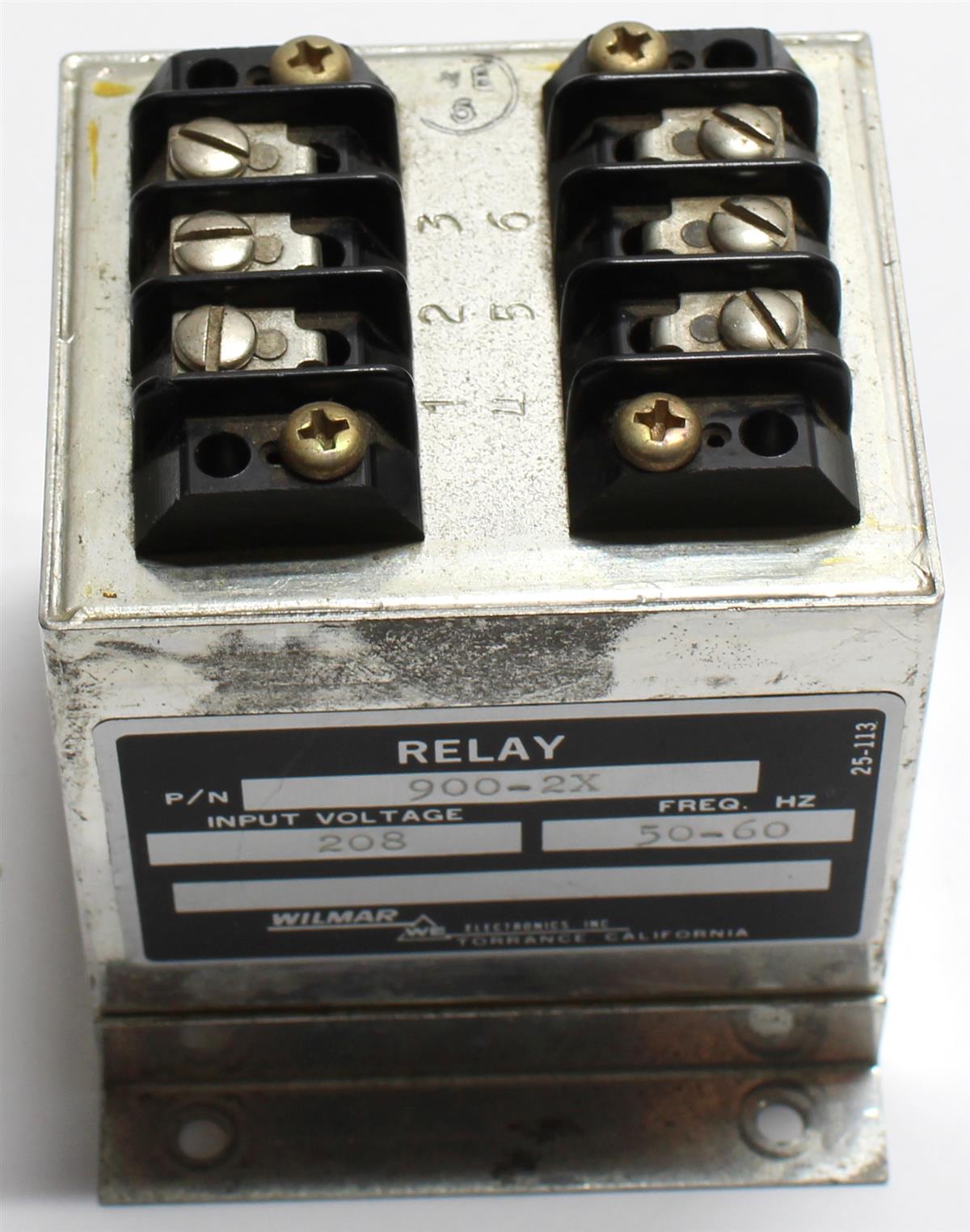

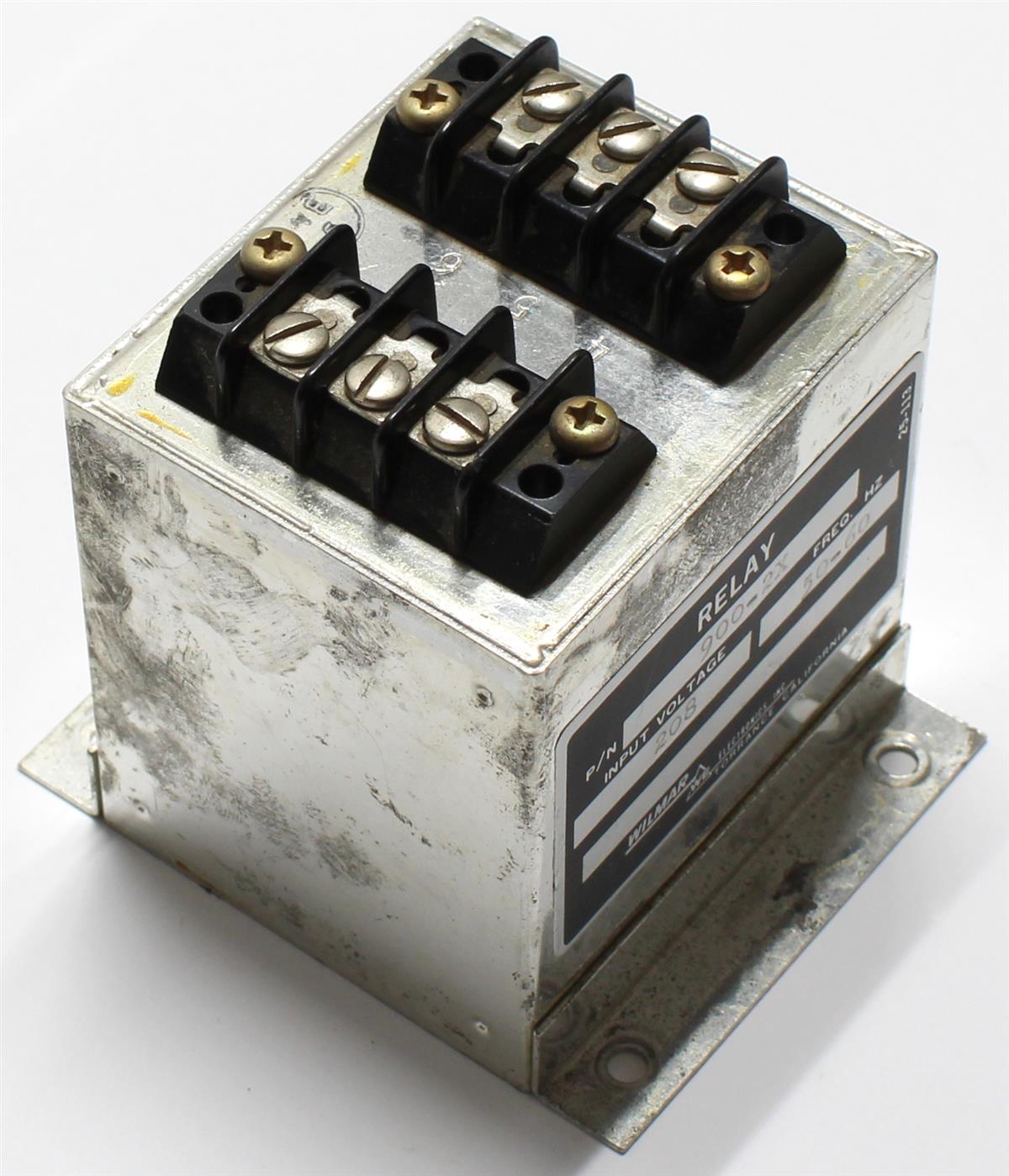

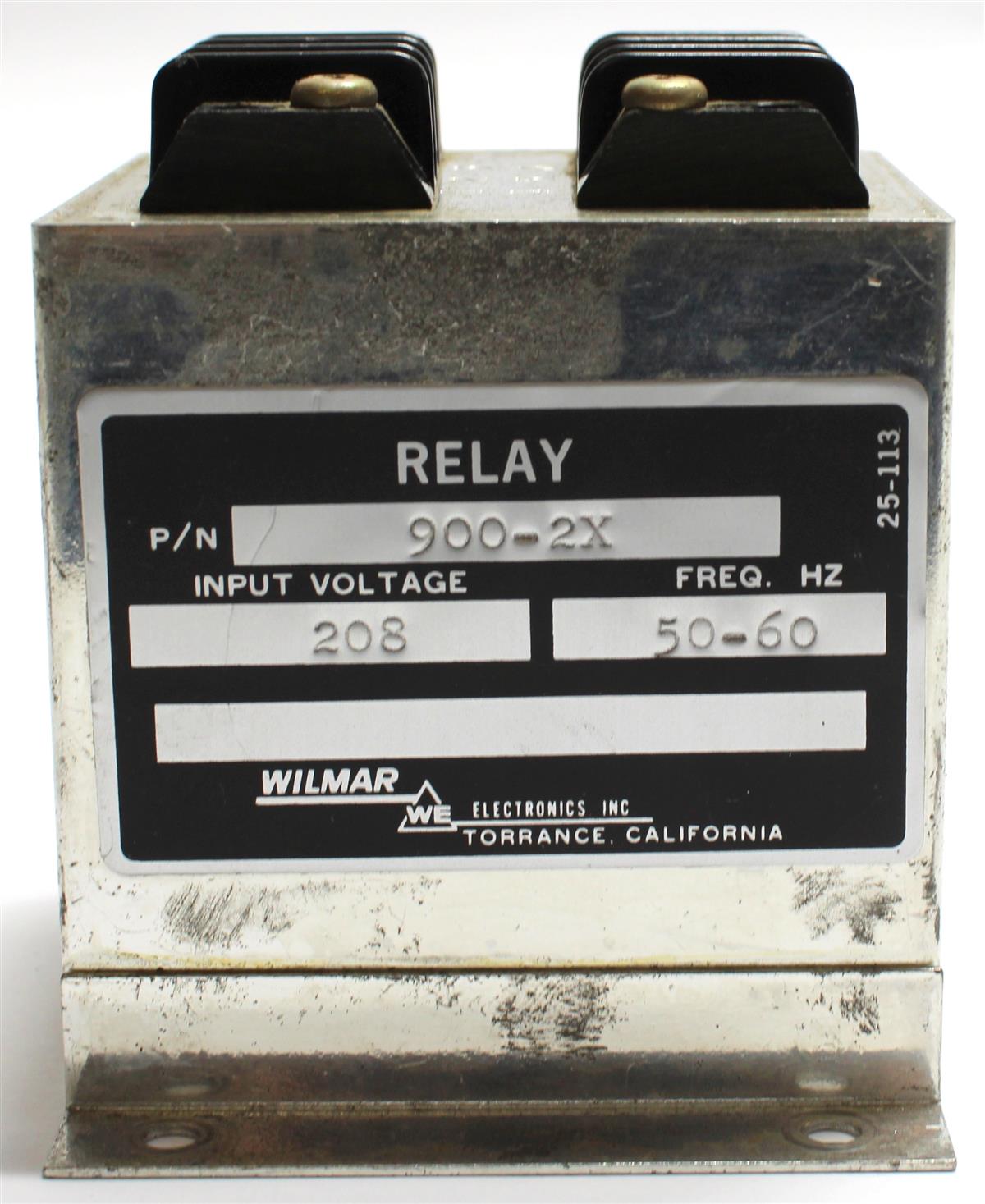

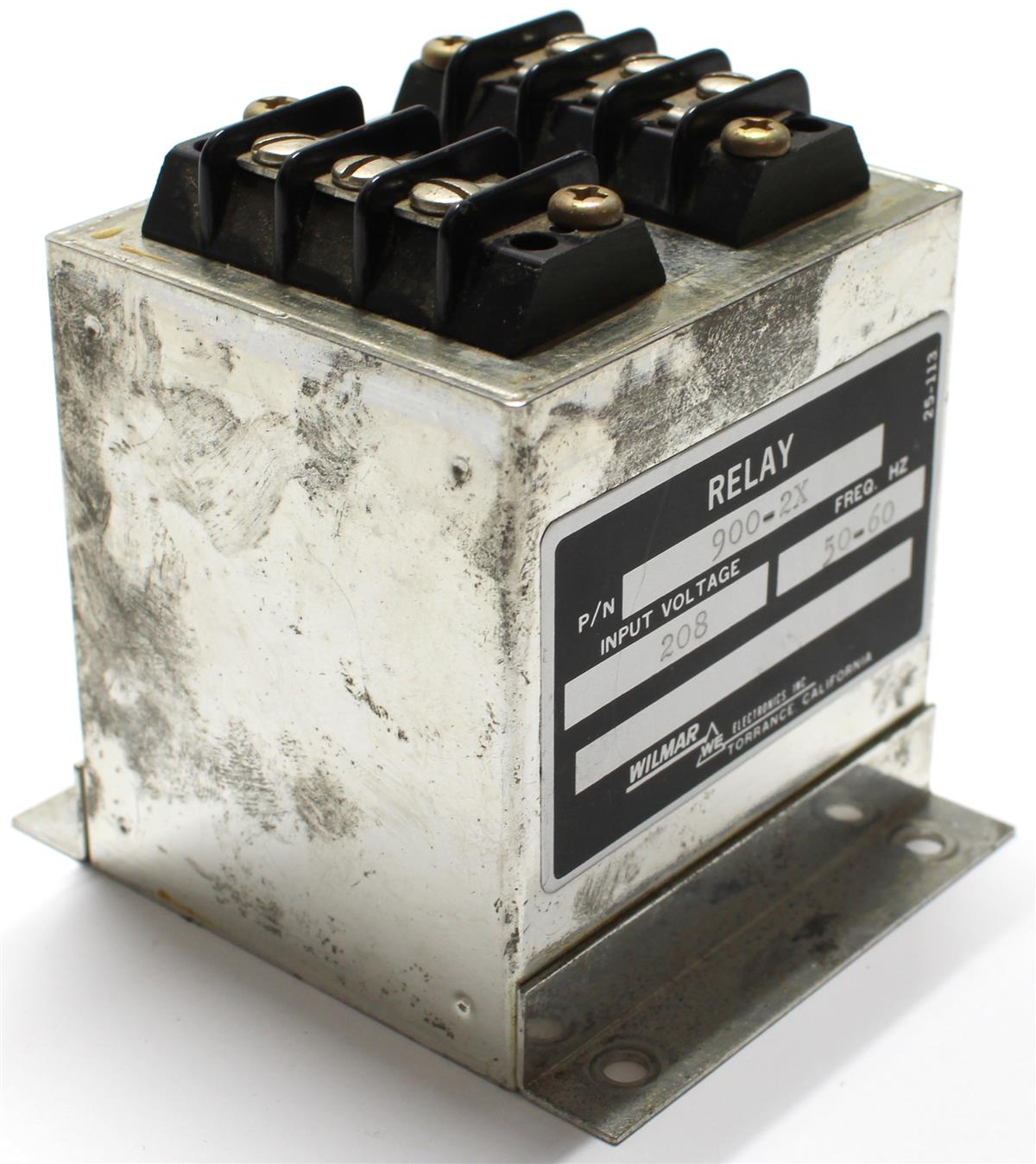

Electromagnetic Relay Military Standard Gasoline Engine for Gen-Set
- Overall Length - 3.220 Inches Minimum And 3.280 Inches Maximum
- Center To Center Distance Between Mounting Facilities Parallel to Length - 2.800 Inches Minimum Single Mounting Facility And 2.830 Inches
- Center To Center Distance Between Mounting Facilities Parallel to Width - 1.970 Inches Minimum Single Mounting Facility And 2.030 Inches
- Overall Height - 3.100 Inches Minimum And 3.220 Inches Maximum
- Overall Width - 2.280 Inches Minimum And 2.340 Inches Maximum
- Case Material - Metal
- Unthreaded Mounting Hole Diameter - 0.140 Inches Minimum Single Mounting Facility And 0.200 Inches Maximum Single Mounting Facility
- Mounting Facility Type and Quantity - 4 Unthreaded Hole Single Mounting Facility
- Cubic Measure - 24.714 Cubic Inches
- Main Contact Load Current Rating at Maximum Rated Voltage - 5.0 Amperes Ac Resistive Load And 5.0 Amperes Dc Resistive Load
- Main Contact Maximum Voltage Rating in Volts - 120.0 Ac And 28.0 Dc

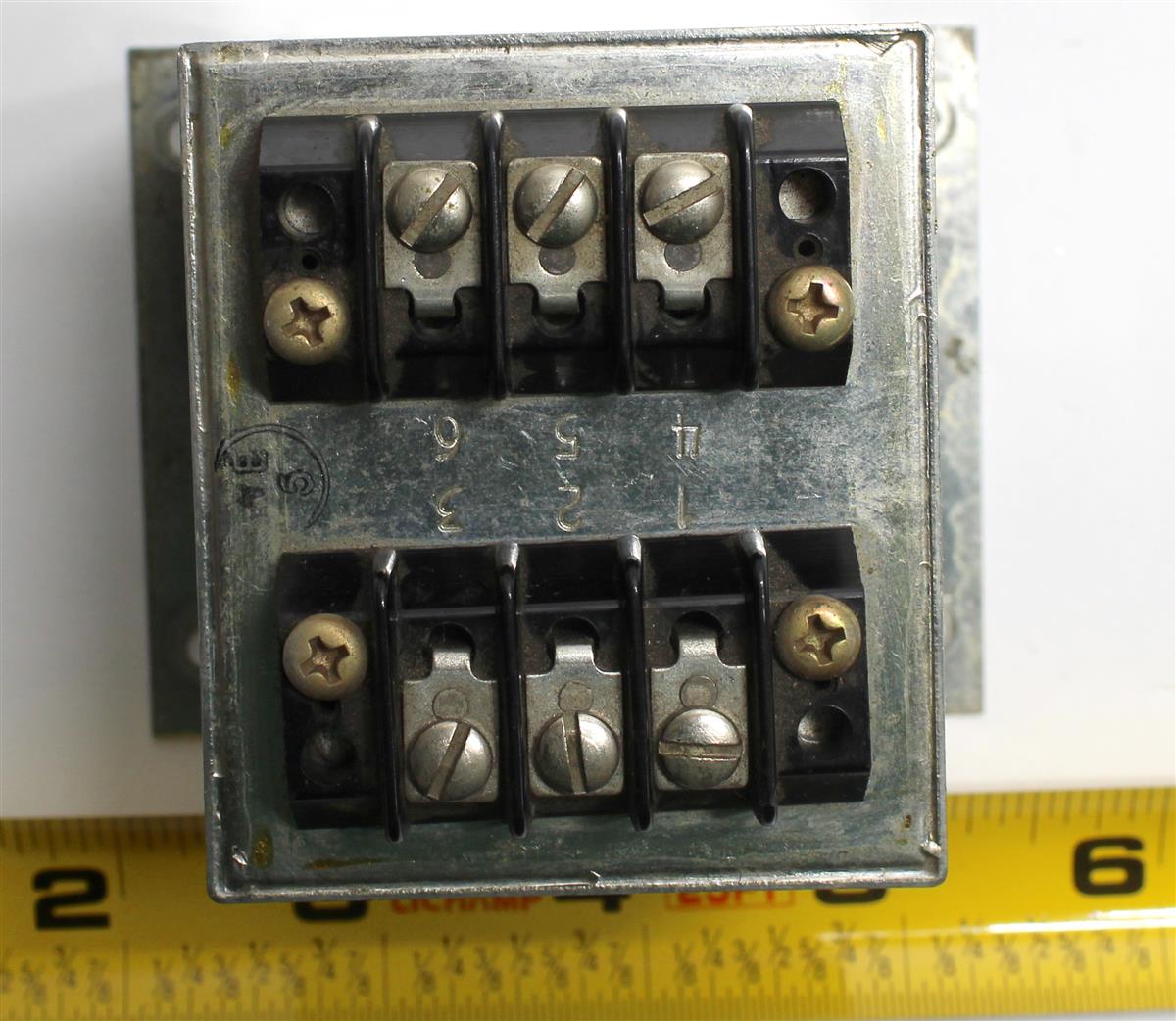

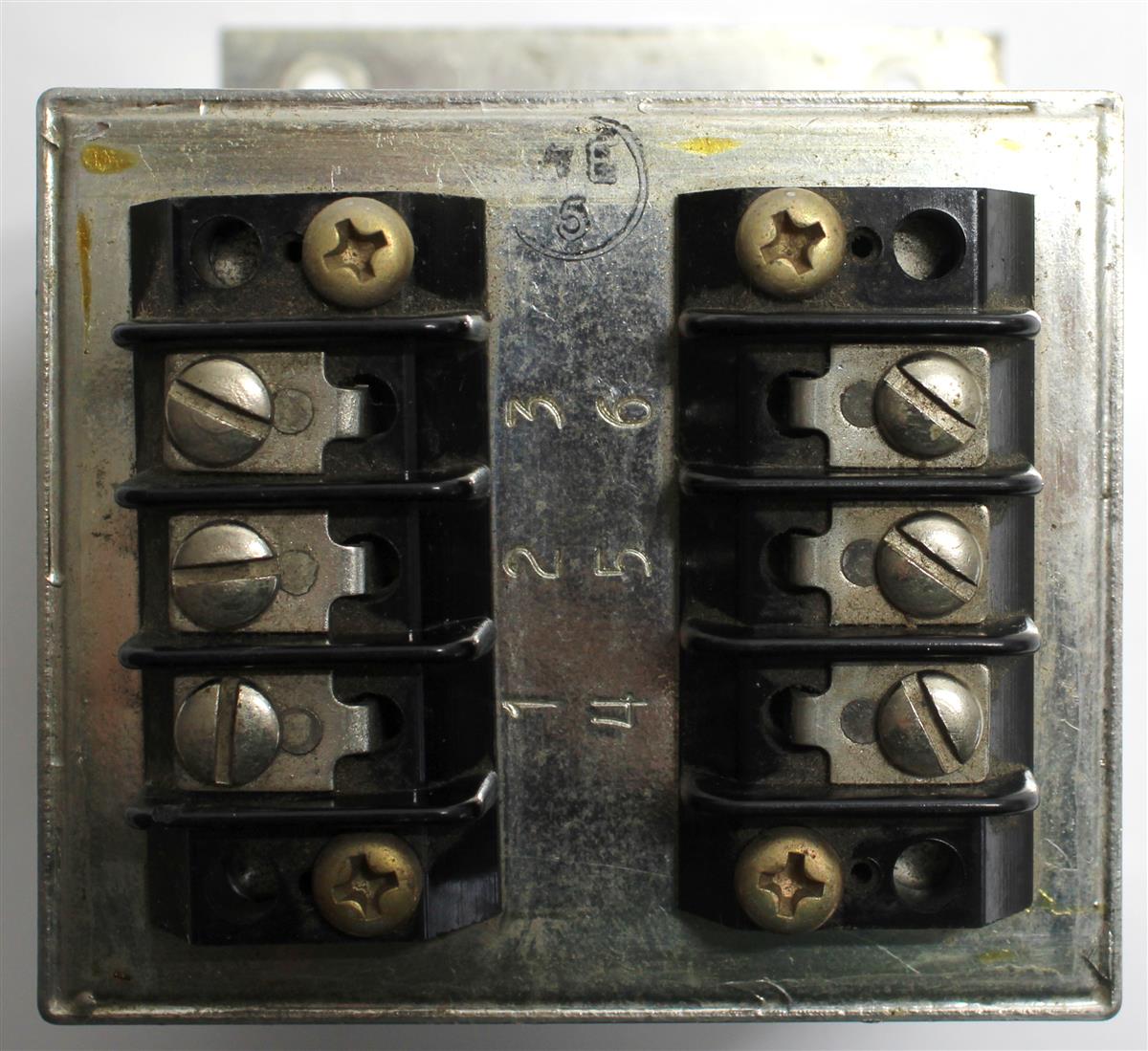

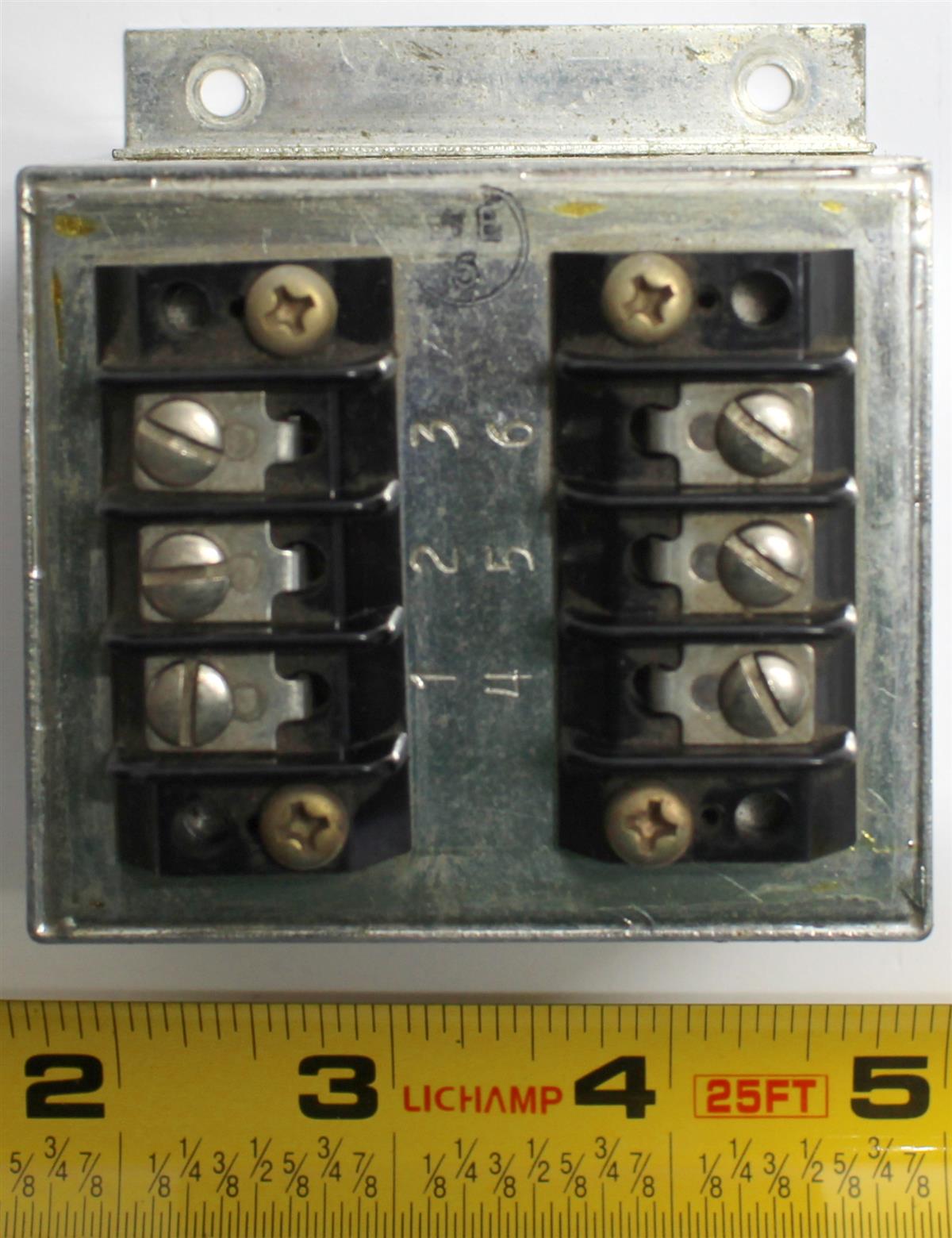

- Terminal Type and Quantity - 6 Screw All Functions
Fits:
Generator Models
