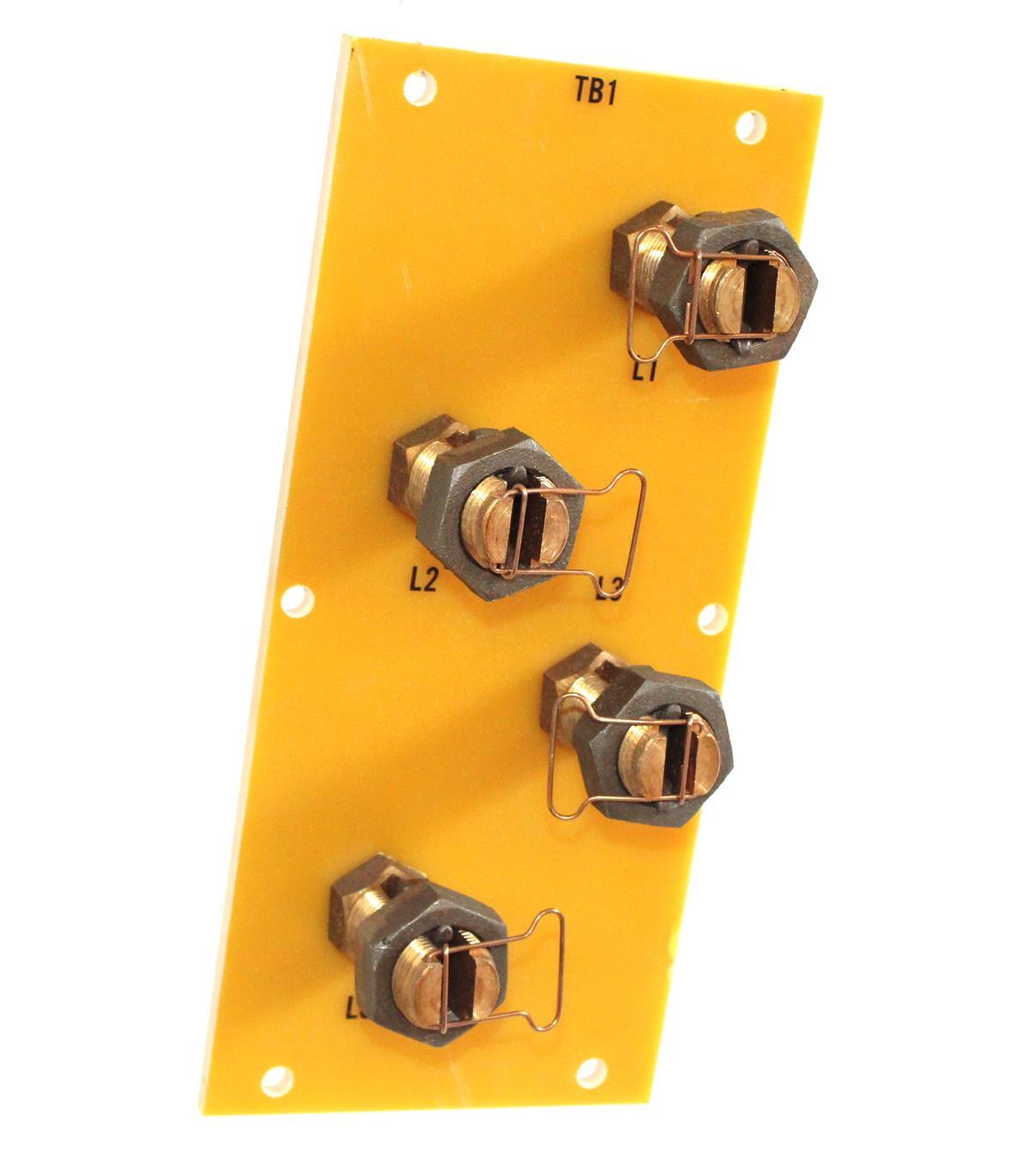

Terminal Stud Lug Panel Board Military Standard Gasoline Engine 4A084
- Mounting Hole Diameter is 0.292 inches
- Terminal Row Quantity is 2
- Center to Center Distance between Terminals is 4.500 inches
- Distance between Terminal Row Center sis 2 inches
- Board Overall Length is 10.750 inches
- Board Overall Width is 5 inches
- Board Overall Height is 0.250 inches
- Material is Glass Fiber and Plastic Epoxy Board
Click Here For Ground Grounding Terminal Stud Lug 2A042 4A084 5 KW 10 KW Generator Military Standard Engine
Click Here For Ground Grounding Terminal Stud Lug 4A032 3 KW Generator Military Standard Engine
Click Here For Ground Terminal Data Plate
Click Here For Ground Terminal Stud Lug 2A042 4A084 5 KW 10 KW Generator Grounding
Click Here For Ground Terminal Stud Lug 2A042 4A084 5 KW 10 KW Generator Grounding
Click Here For Terminal Board Assembly Generator Model 4A084 10 KW Gen-Set
Fits
Gen-Set Model 4A084 - 10 KW Generator Gen-Set
MEP-018A - 60 HZ - Gasoline Engine Driven
MEP-003A - 60 HZ - Diesel Engine Driven
MEP-412A - 60 HZ - Gasoline Turbine Engine Driven
MEP-112A - 400 HZ - Diesel Engine Driven
MEP-414A - DC - Gasoline Turbine Engine Driven
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
