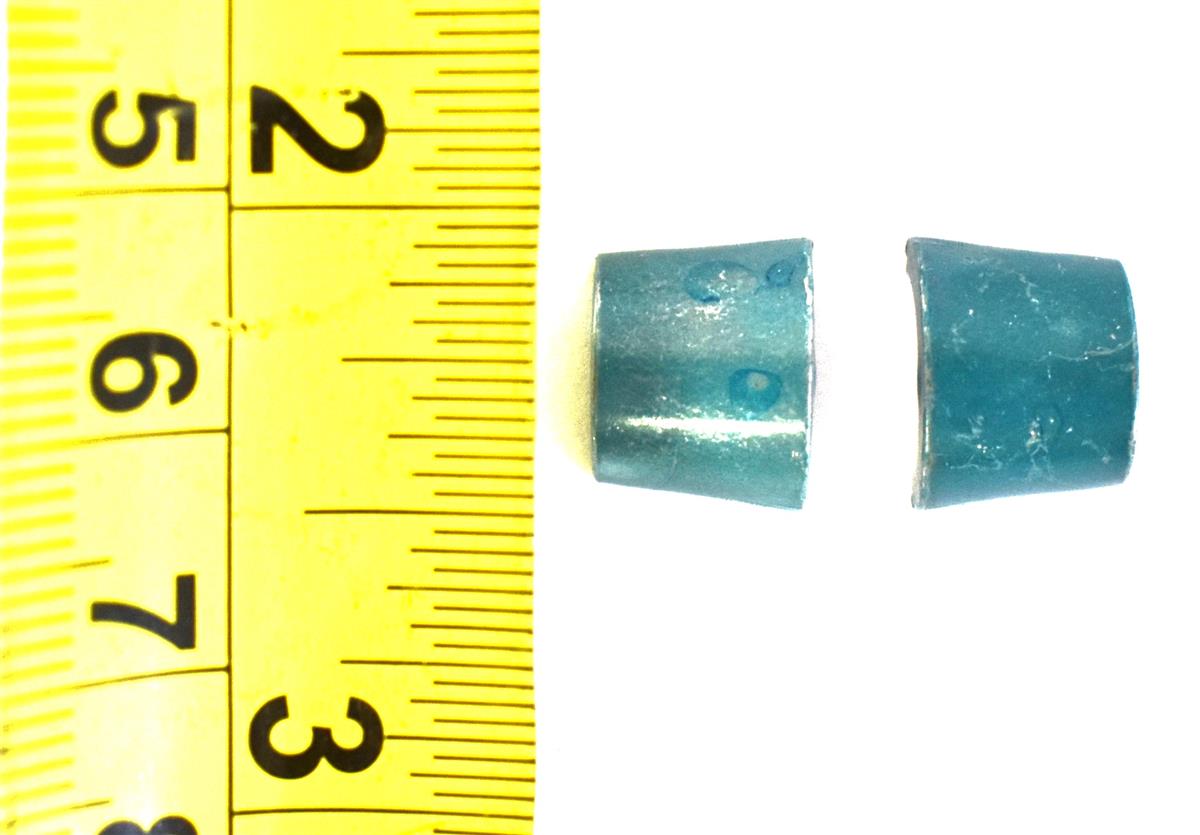

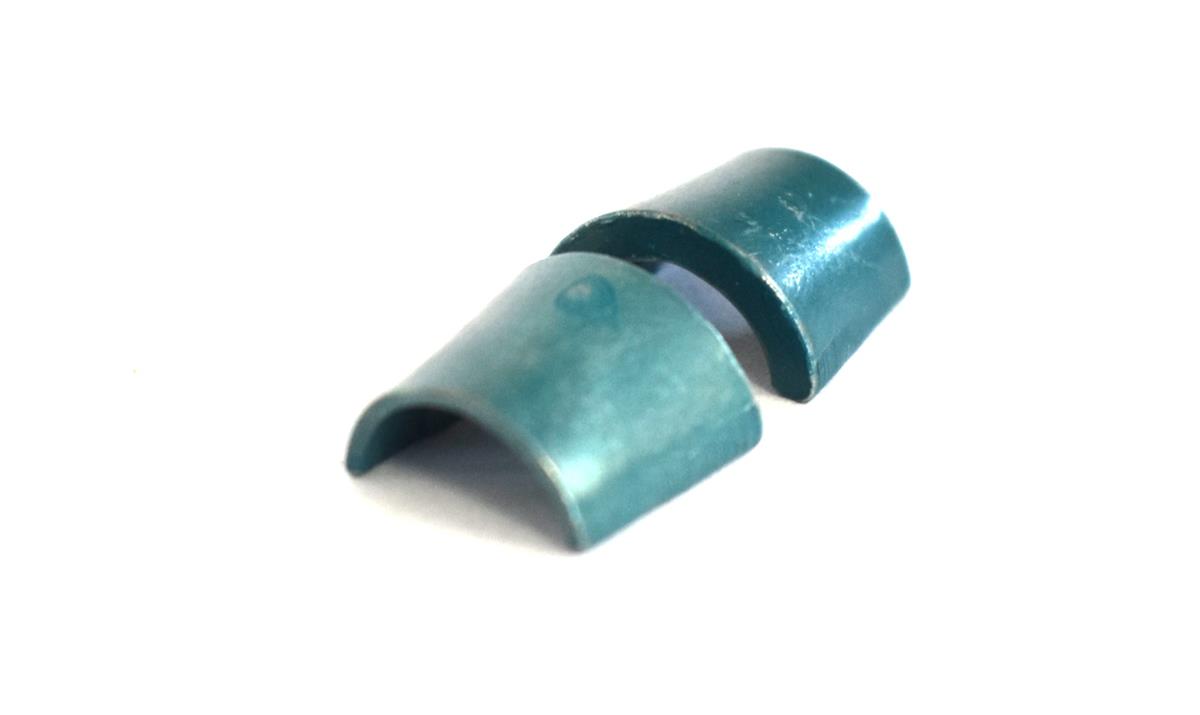

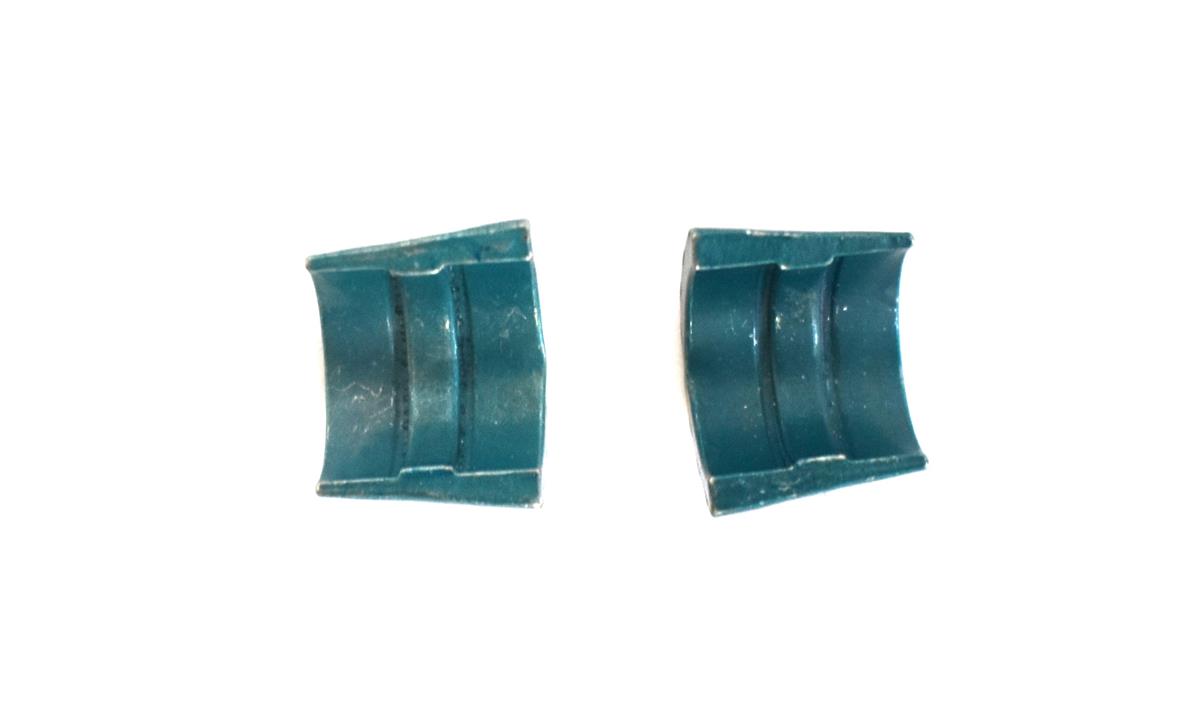

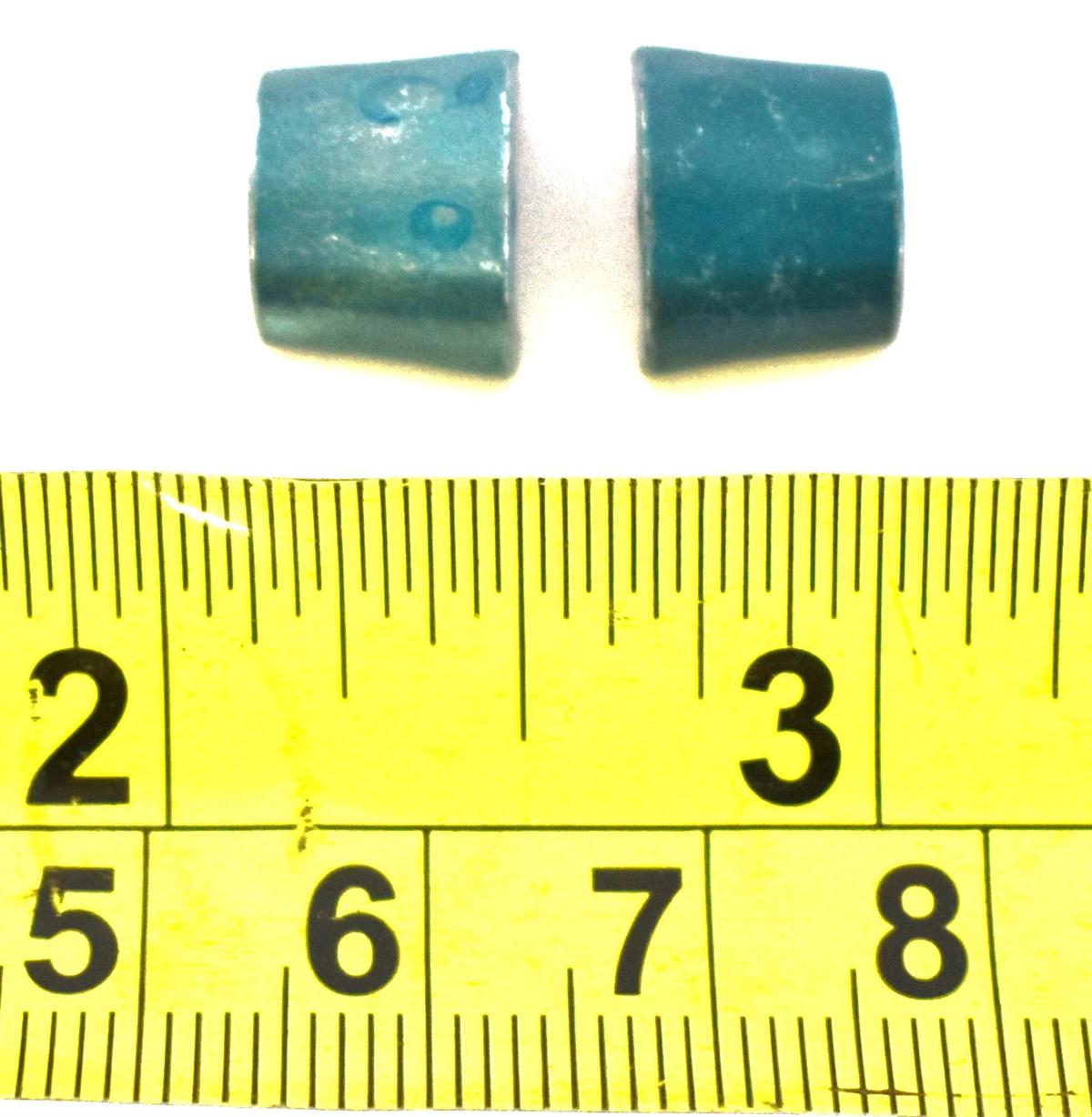

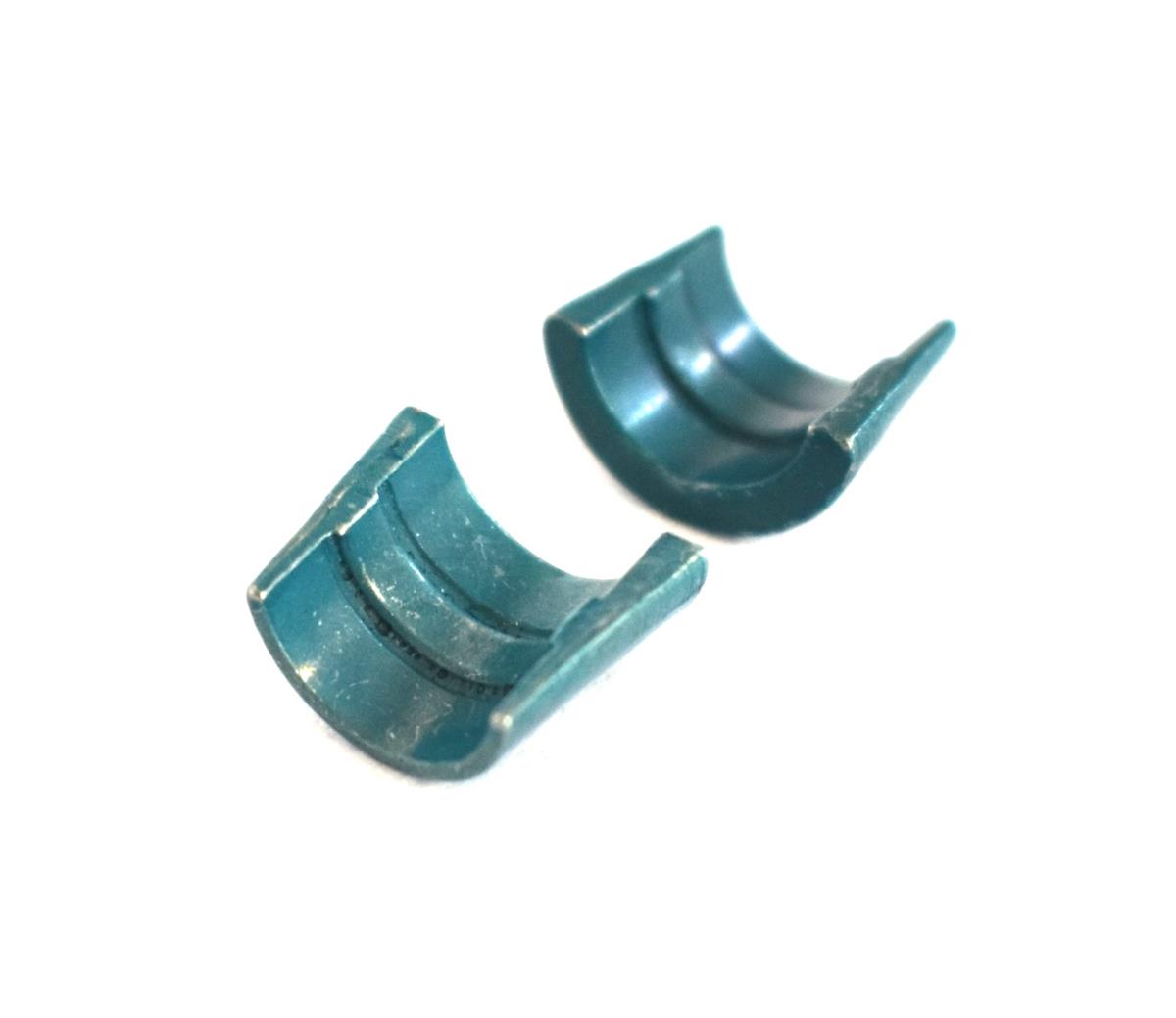

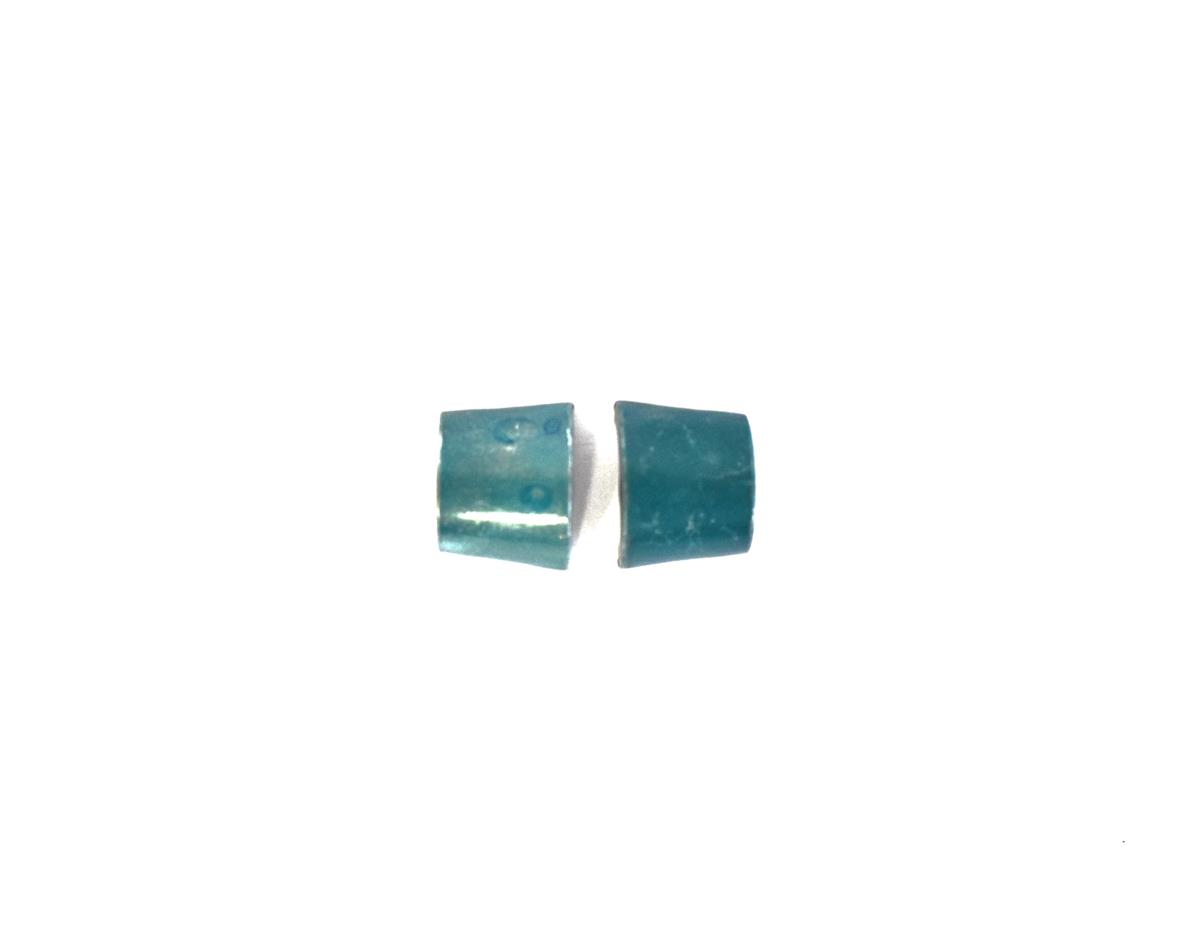

Lock Valve Spring Retainer To The Engine Poppet Rotor Cylinder Head Assembly Military Gas Stan Engine 2A042 4A084
- Overall Height - 0.372 inches Min. and 0.382 inches Max.
- Thead Provision - Unthreaded
- Largest Inside Diameter - 0.339 inches Min. and 0.343 inches Max.
- Largest Outside Diameter - 0.499 inches Min. and 0.503 inches Max.
- First Groove Width - 0.020 inches Min. and 0.025 inches Max.
- Second Groove Width - 0.020 inches Min. and 0.025 inches Max.
- Min. Inside Diameter - 0.326 inches
- Outside Included Angle - 14.25 Degrees
- Material - Steel Comp 1010

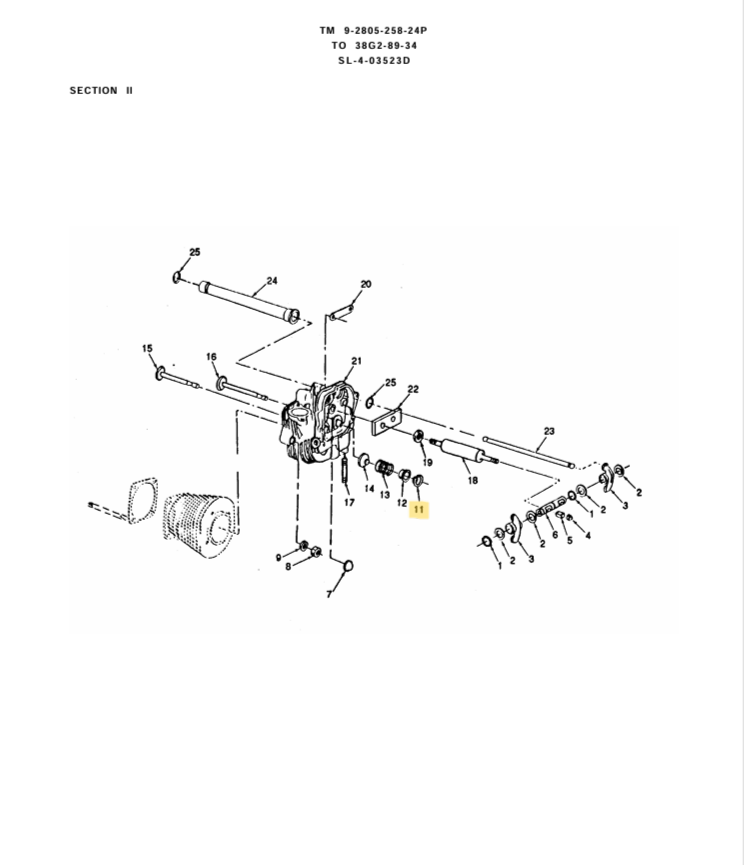

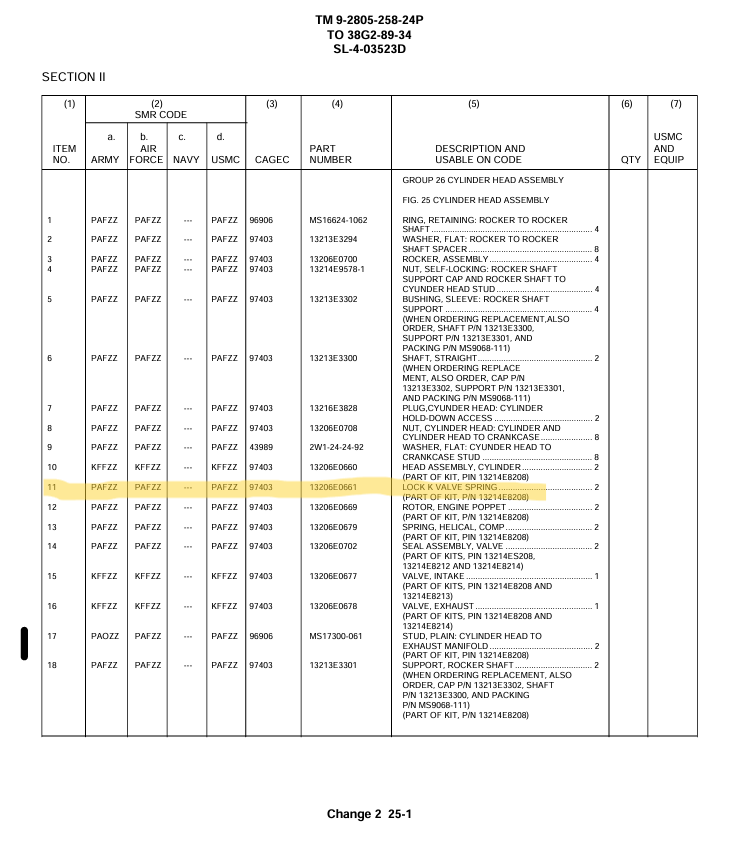

- Item #11 In Diagram
Fits
Gen-Set Model 2A042 - 5 KW Generator Gen-Set
MEP-017A - 60 HZ - Gasoline Engine Driven
MEP-002A - 60 HZ - Diesel Engine Driven
MEP-022A - 400 HZ - Gasoline Engine Driven
Gen-Set Model 4A084 - 10 KW Generator Gen-Set
MEP-018A - 60 HZ - Gasoline Engine Driven
MEP-003A - 60 HZ - Diesel Engine Driven
MEP-412A - 60 HZ - Gasoline Turbine Engine Driven
MEP-112A - 400 HZ - Diesel Engine Driven
MEP-414A - DC - Gasoline Turbine Engine Driven
MEP-803A
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
