Piston Wrist Pin Military Standard Gasoline Engine 2A042 4A084
- Radius is 0.030 inches
- Outside Diameter is 0.85910 inches Minimum and 0.85930 inches Maximum
- Bore Diameter is 0.5750 inches Minimum and 0.5800 inches Maximum
- Body Length is 2.4850 inches Minimum and 2.5000 inches Maximum
- Steel Material

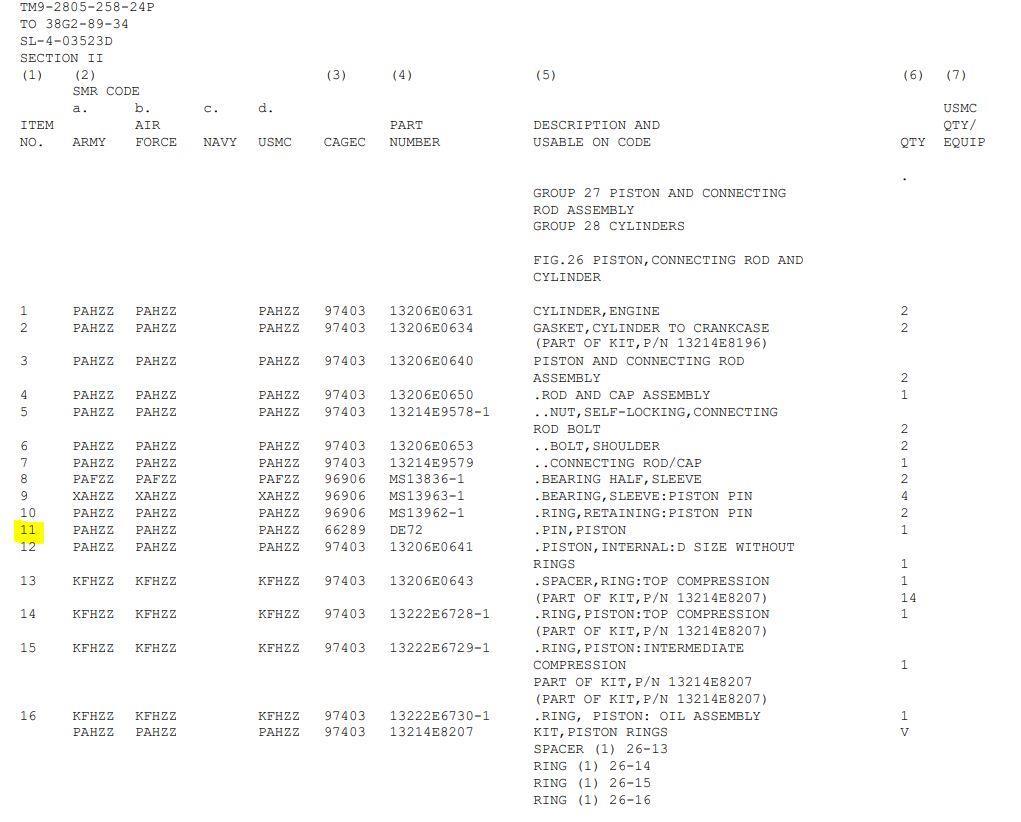

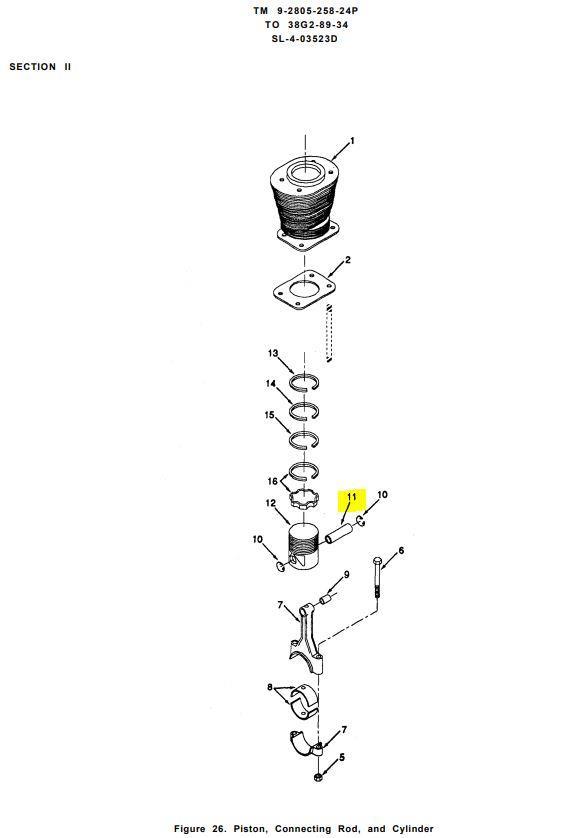

- Diagram shown in Pictures
Fits
Gen-Set Model 2A042 - 5 KW Generator Gen-Set
MEP-017A - 60 HZ - Gasoline Engine Driven
MEP-002A - 60 HZ - Diesel Engine Driven
MEP-022A - 400 HZ - Gasoline Engine Driven
Gen-Set Model 4A084 - 10 KW Generator Gen-Set
MEP-018A - 60 HZ - Gasoline Engine Driven
MEP-003A - 60 HZ - Diesel Engine Driven
MEP-412A - 60 HZ - Gasoline Turbine Engine Driven
MEP-112A - 400 HZ - Diesel Engine Driven
MEP-414A - DC - Gasoline Turbine Engine Driven
MEP-803A
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
