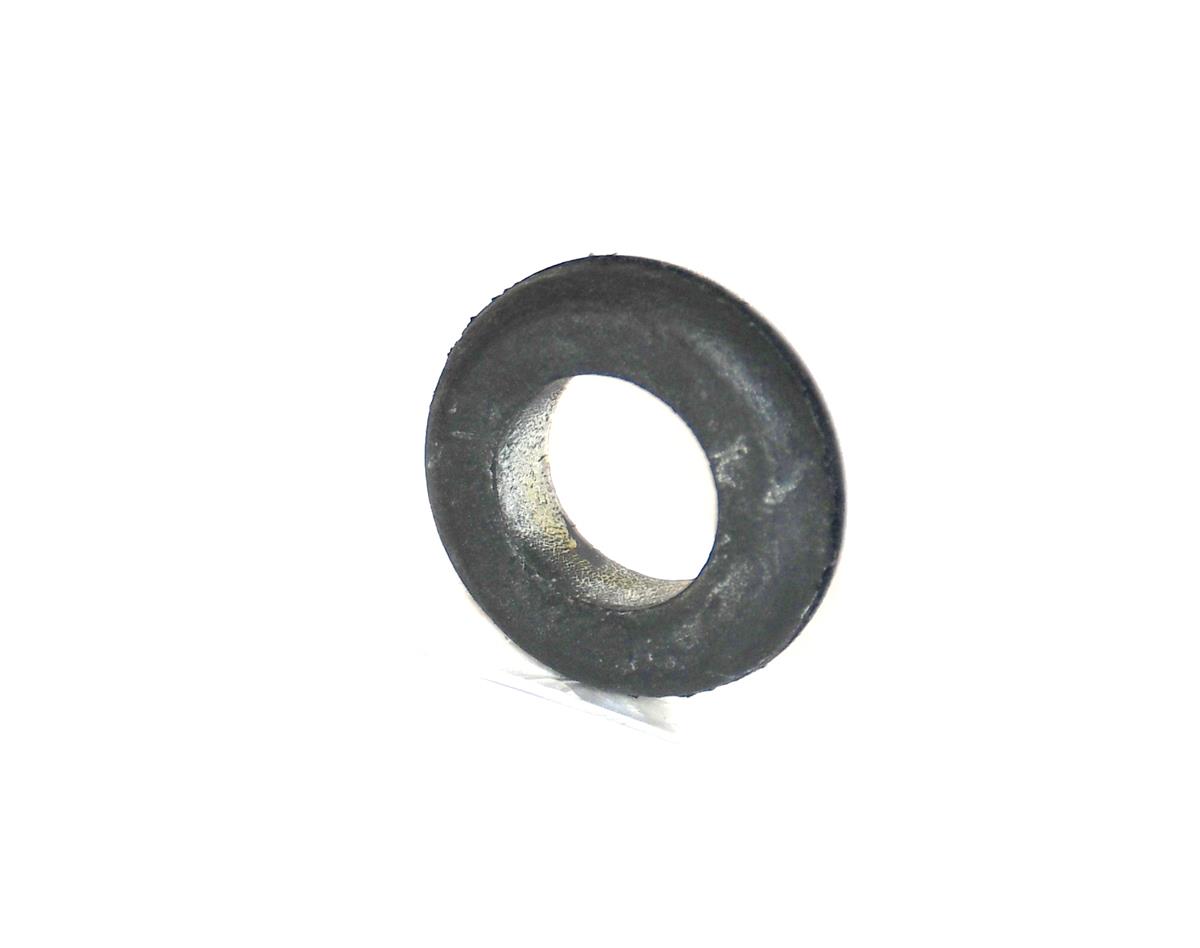

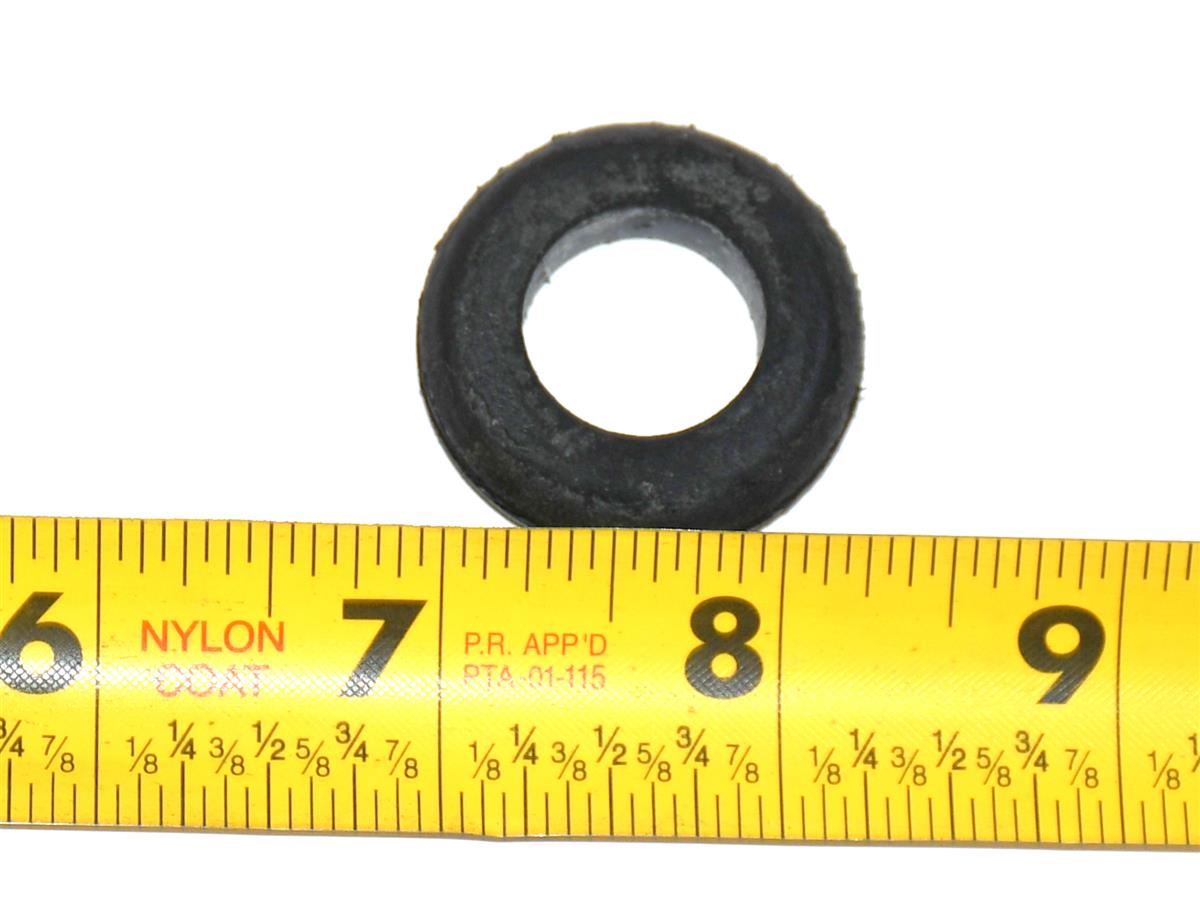

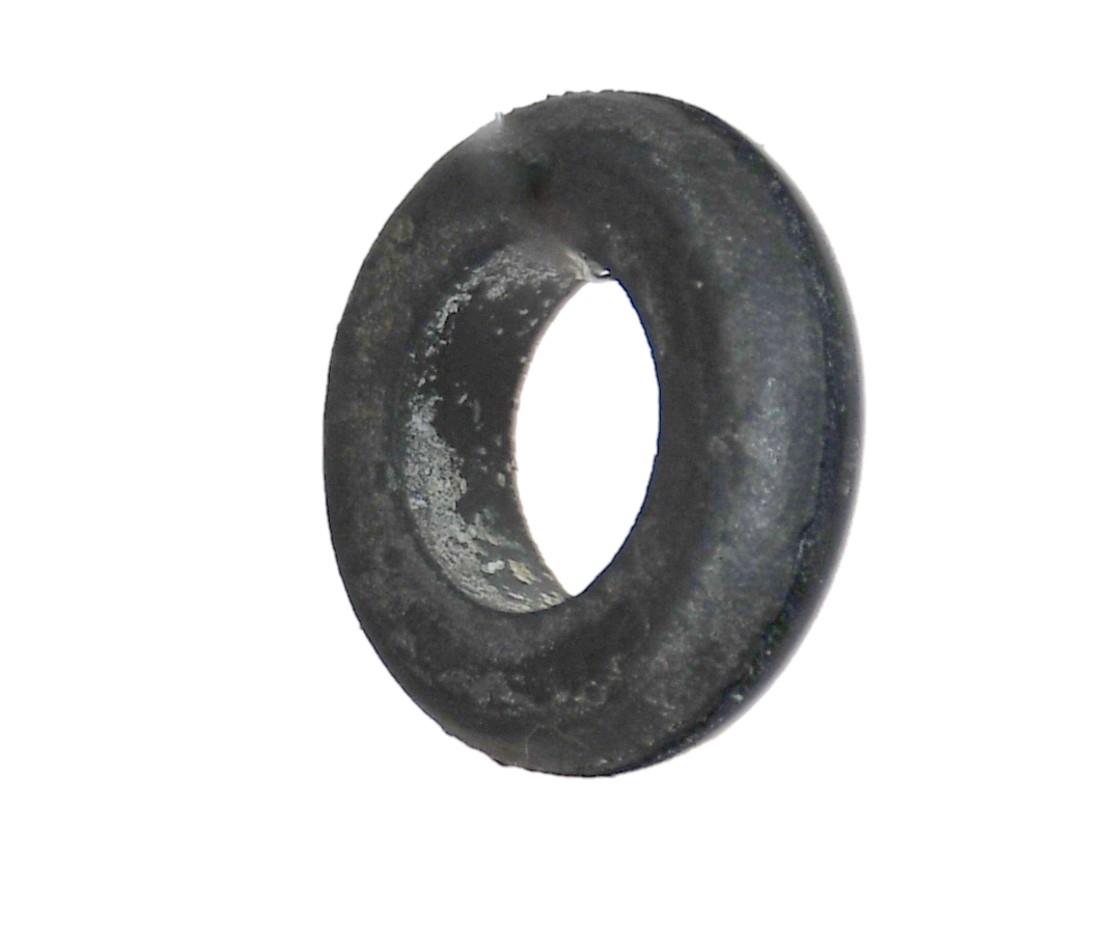

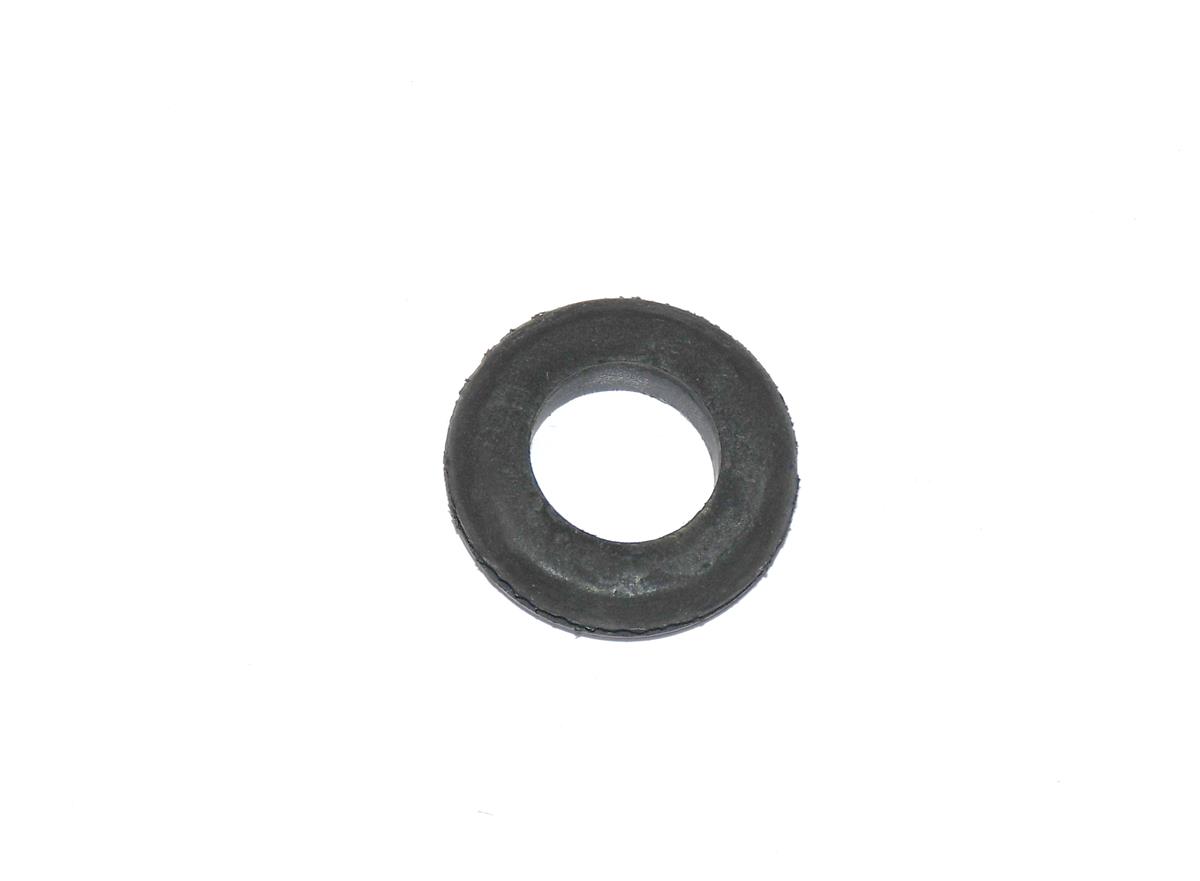

Grommet for Shroud Cooling System Assembly Military Standard Gasoline Engine 2A042
- Hole Diameter is 0.750 inches
- Groove Width is 0.062 inches
- Flange Thickness is 0.156 inches
- Overall Height is 0.375 inches
- Large Flange Outside Diameter is 1.375 inches
- Groove Outside Diameter is 1.062 inches

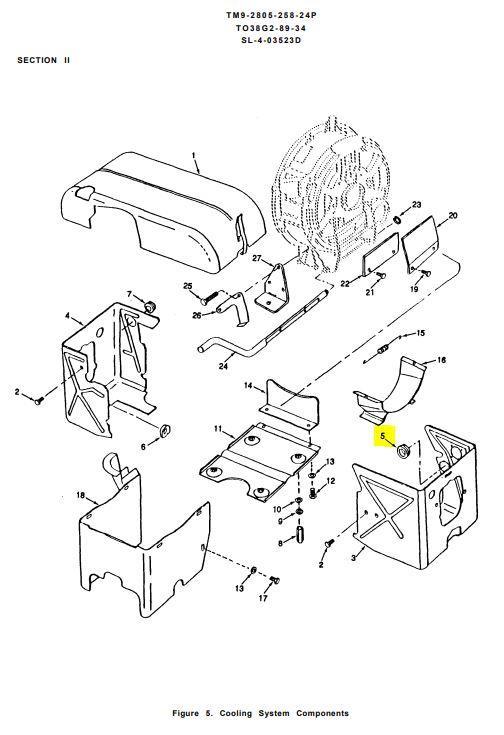

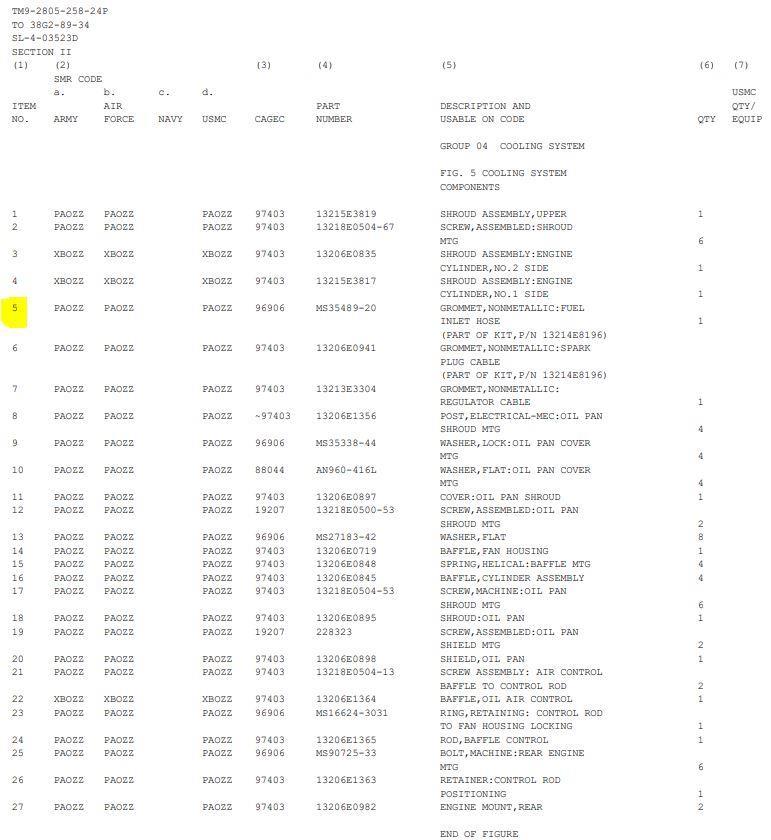

- Diagram Shown in Pictures
Click Here For Shroud Cooling System Military Standard Gasoline Engine 2A042
Fits
Engine Model 2A042 – 5 KW
MEP-017A – 60 HZ – Gasoline Engine Driven
MEP-002A – 60 HZ – Diesel Engine Driven
MEP-022A – 400 HZ – Gasoline Engine Driven
