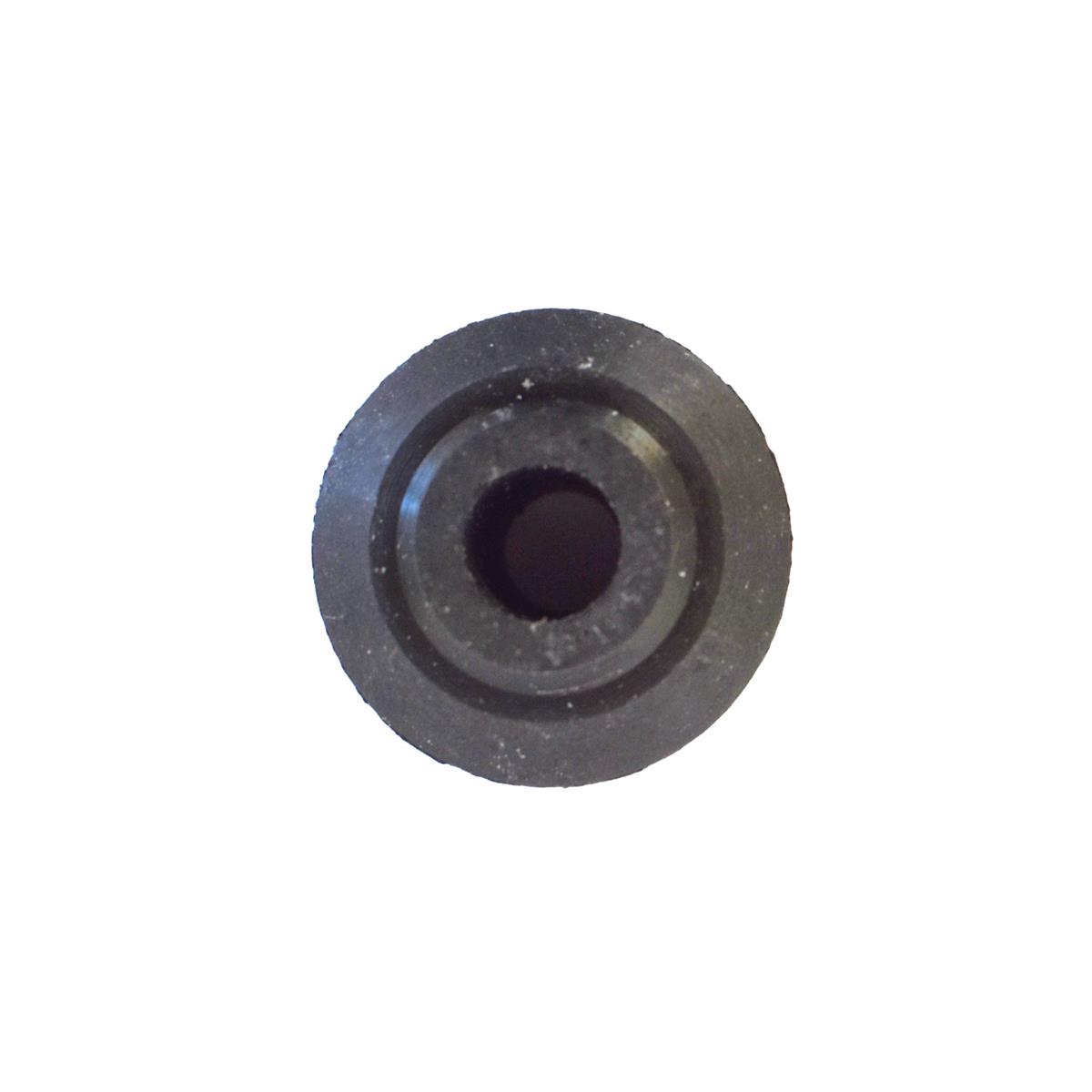

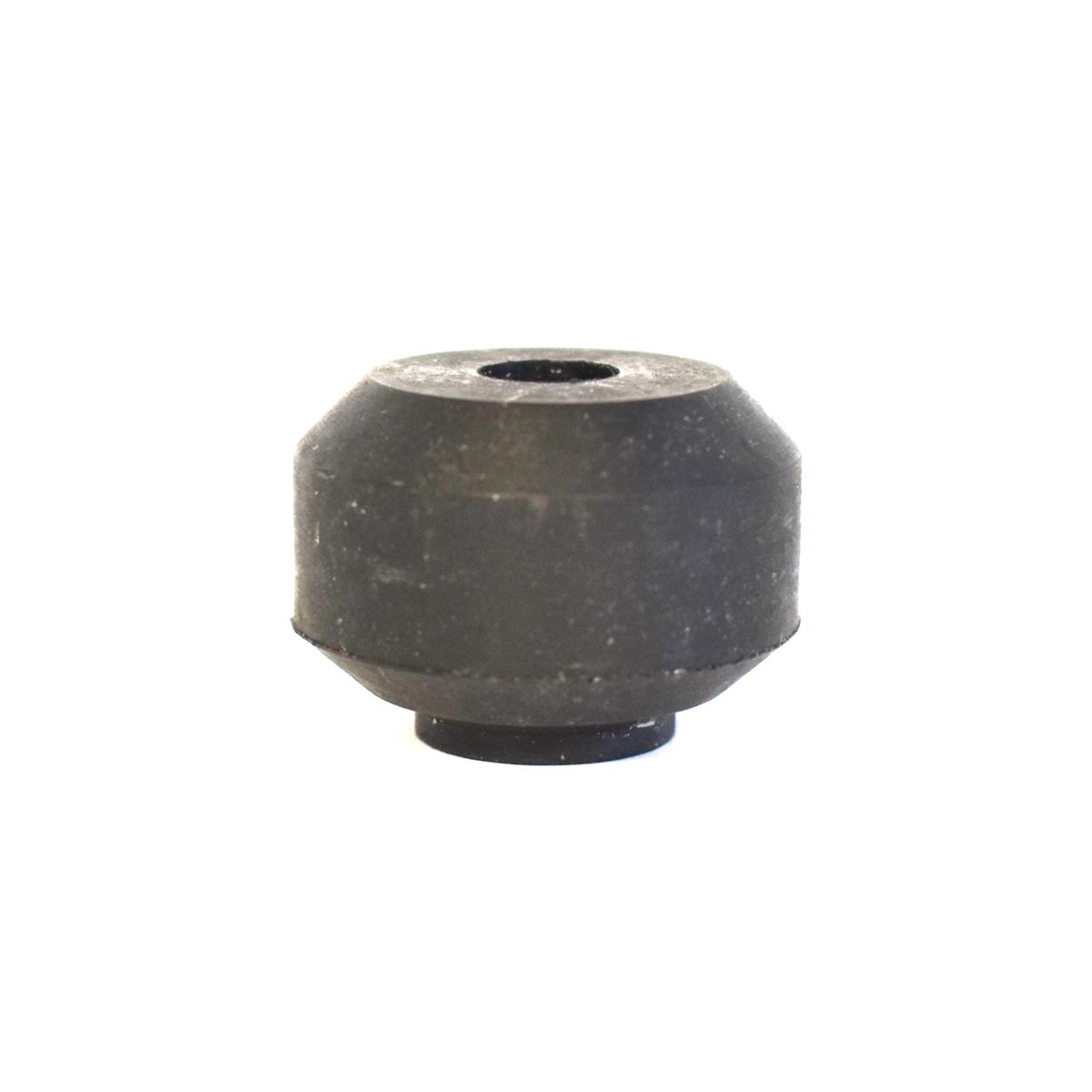

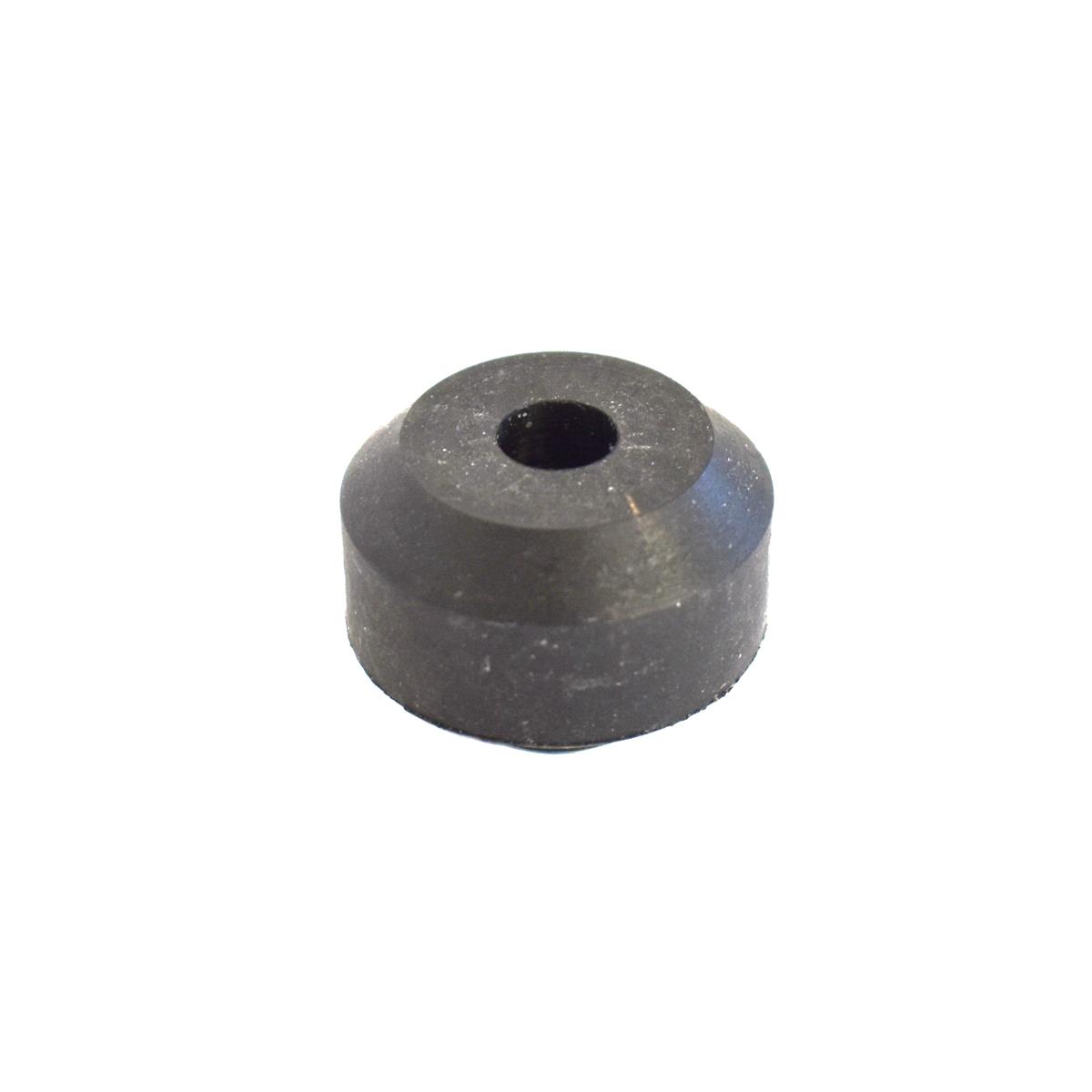

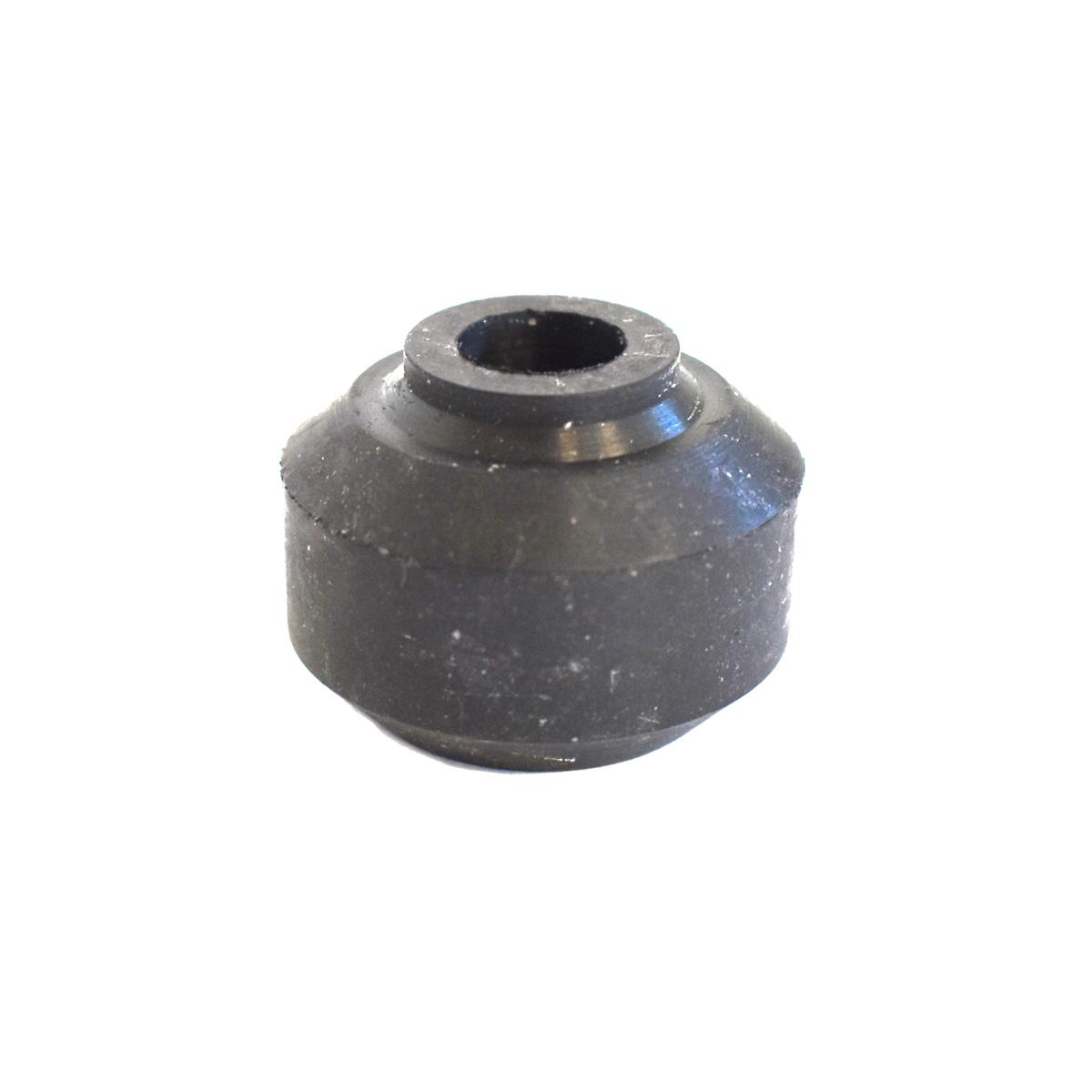

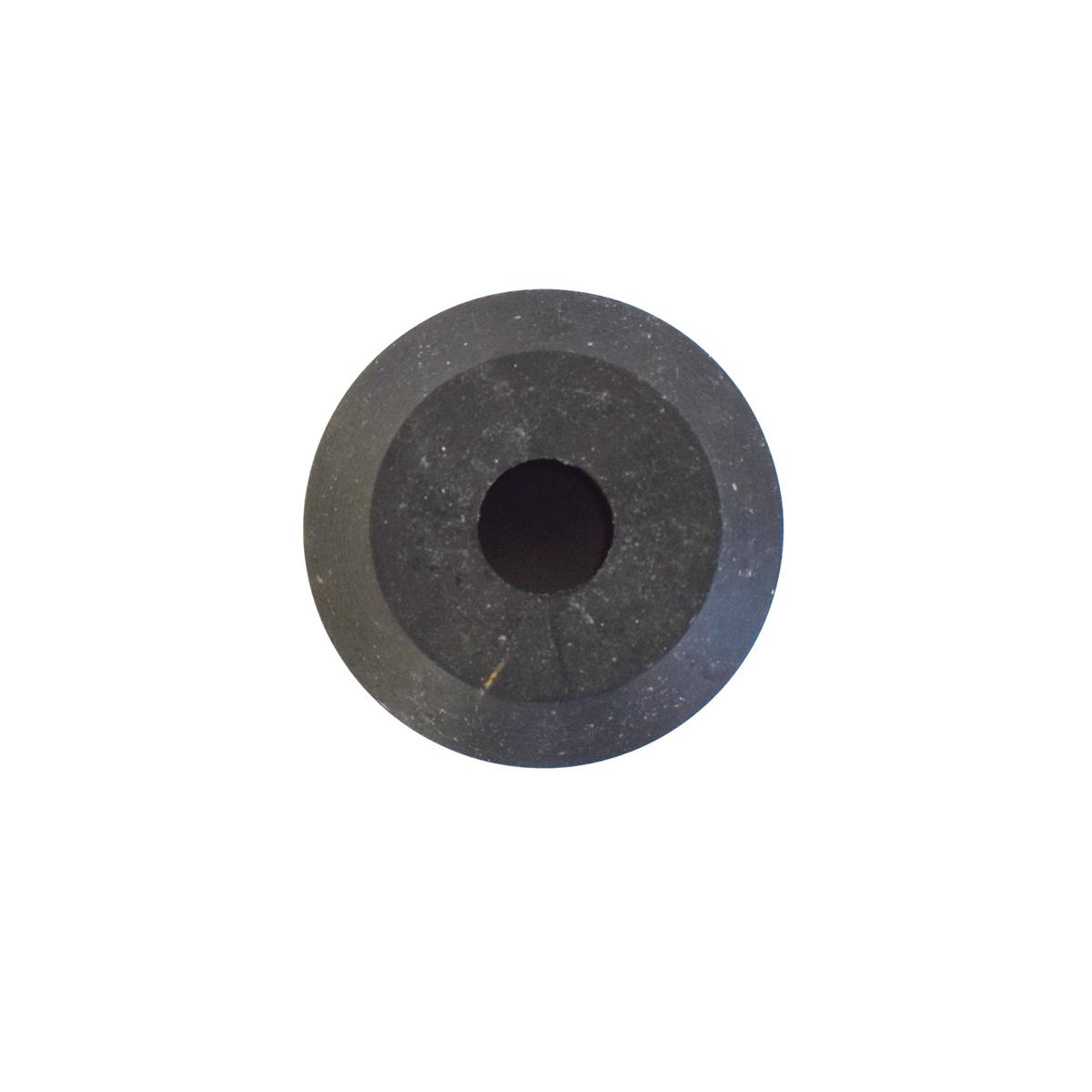

Grommet Muffler Heat Shield Rubber MRAP FMTV LMTV

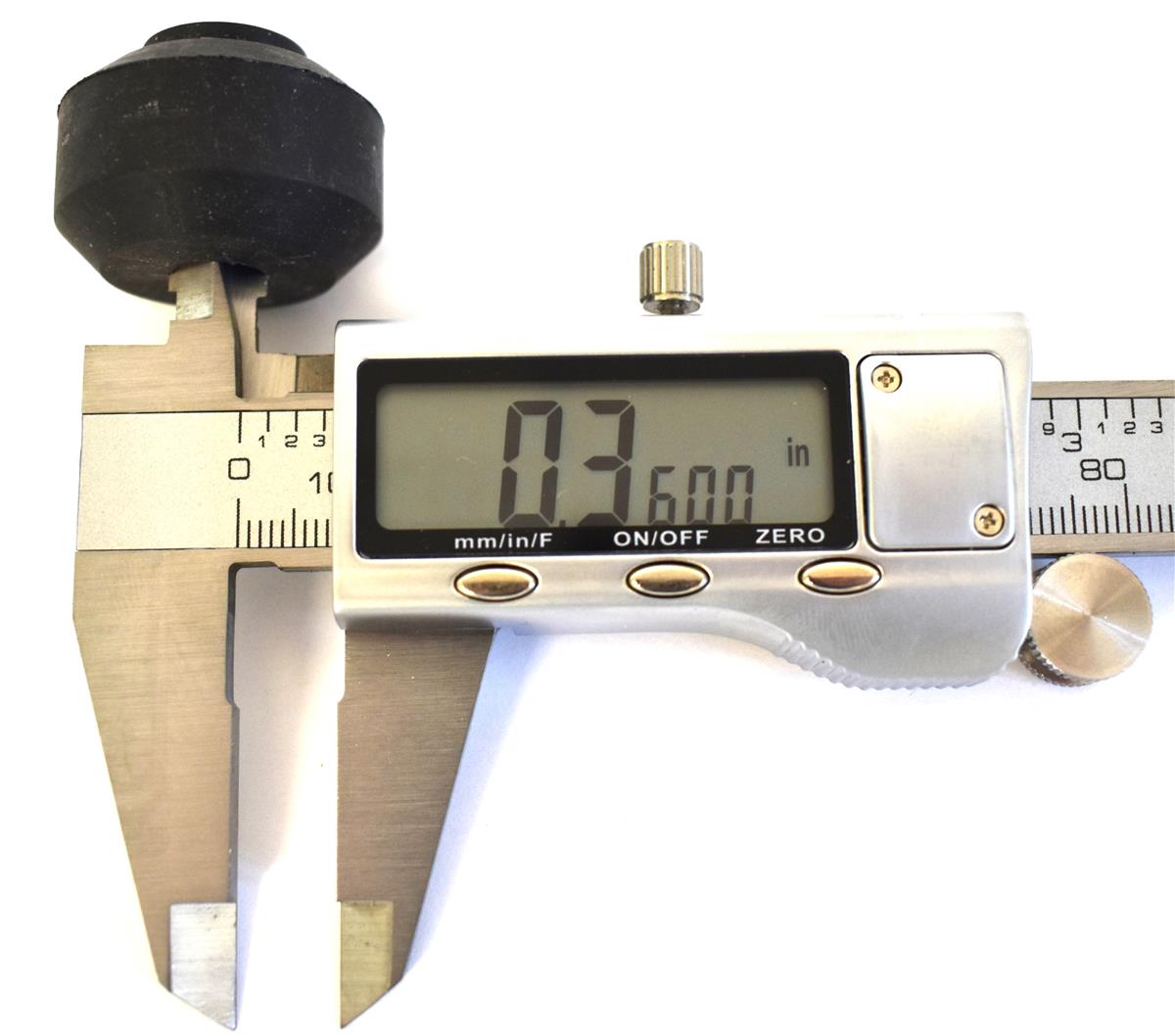

- Groove Width - 0.120 Inches Min - 0.140 Inches Max

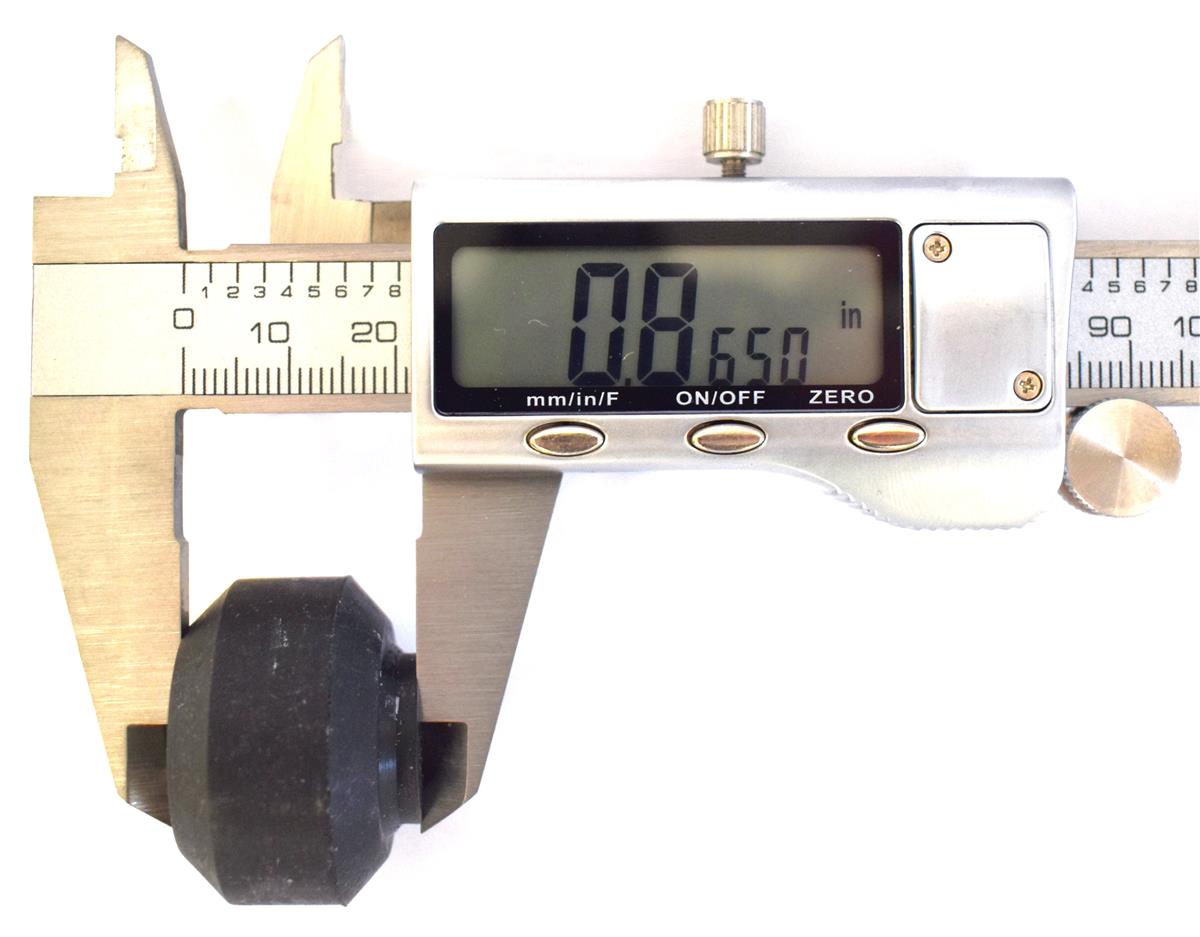

- Overall Height - 0.870 Inches Min - 0.890 Inches Max

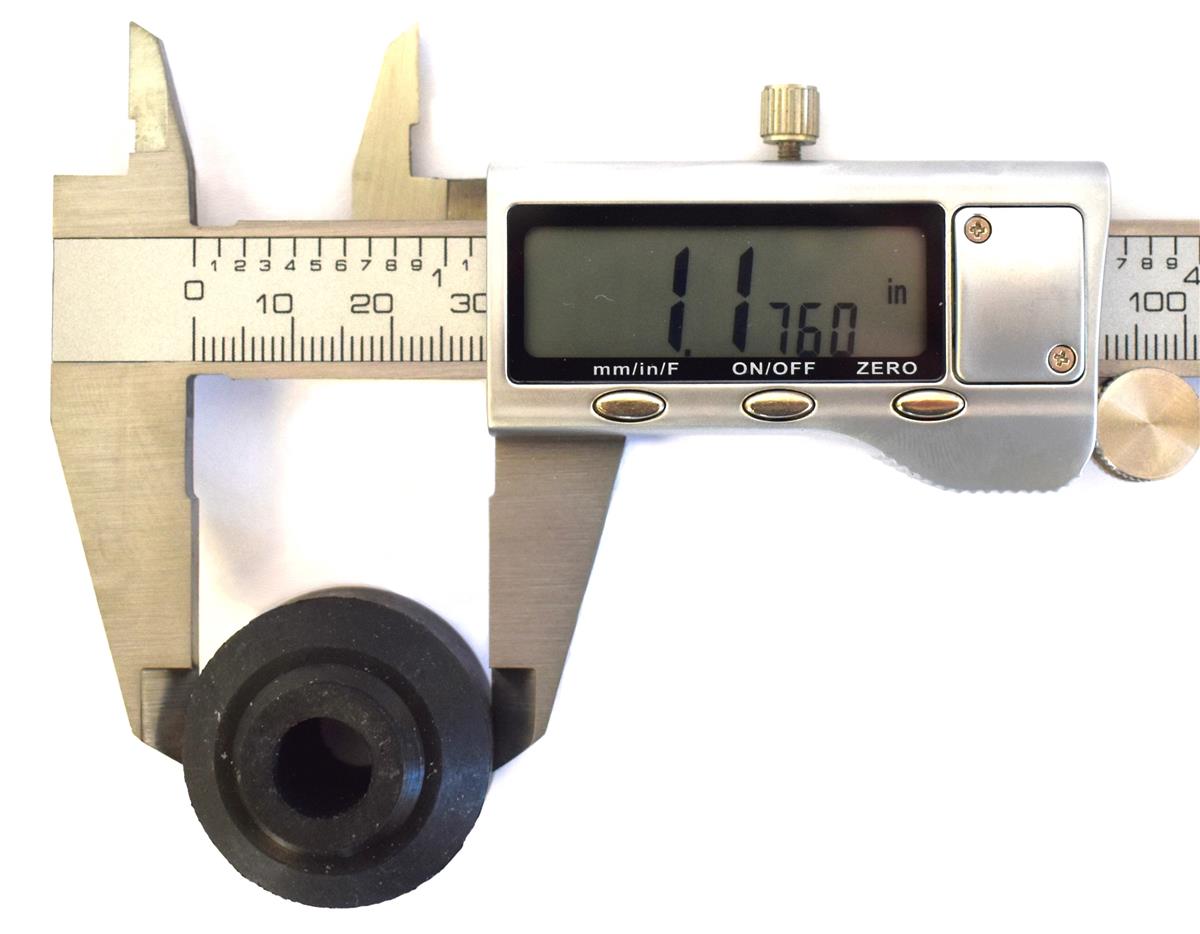

- Large Flange Outside Diameter - 1.210 Inches Min - 1.230 Inches Max
- Small Flange Outside Diameter - 0.860 Inches Min - 0.880 Inches Max
- Groove Outside Diameter - 0.620 Inches Min - 0.640 Inches Max
- Material - Rubber

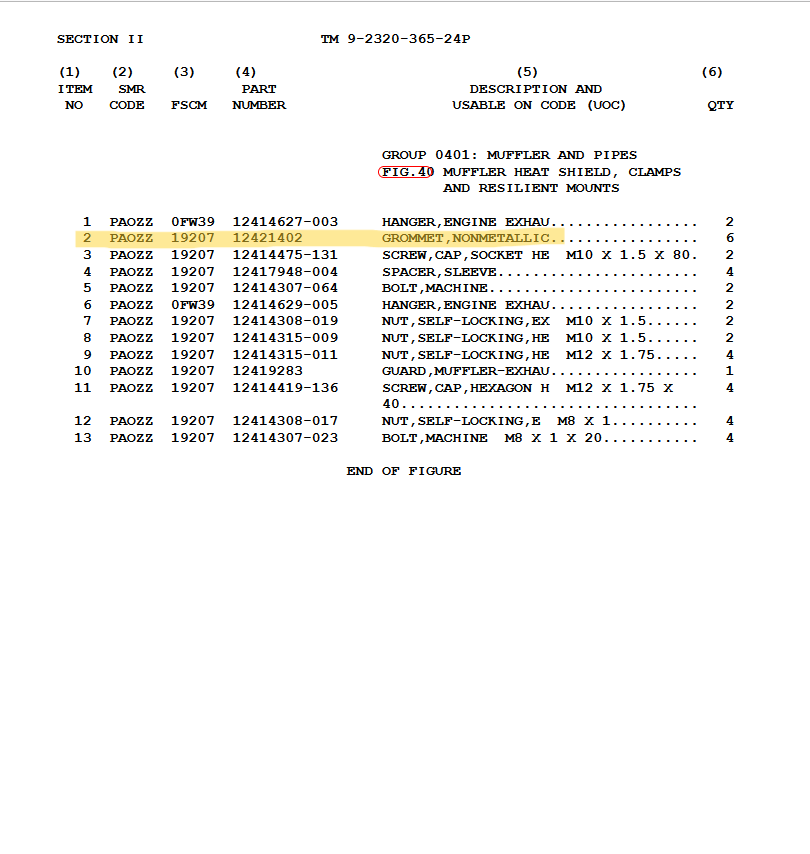

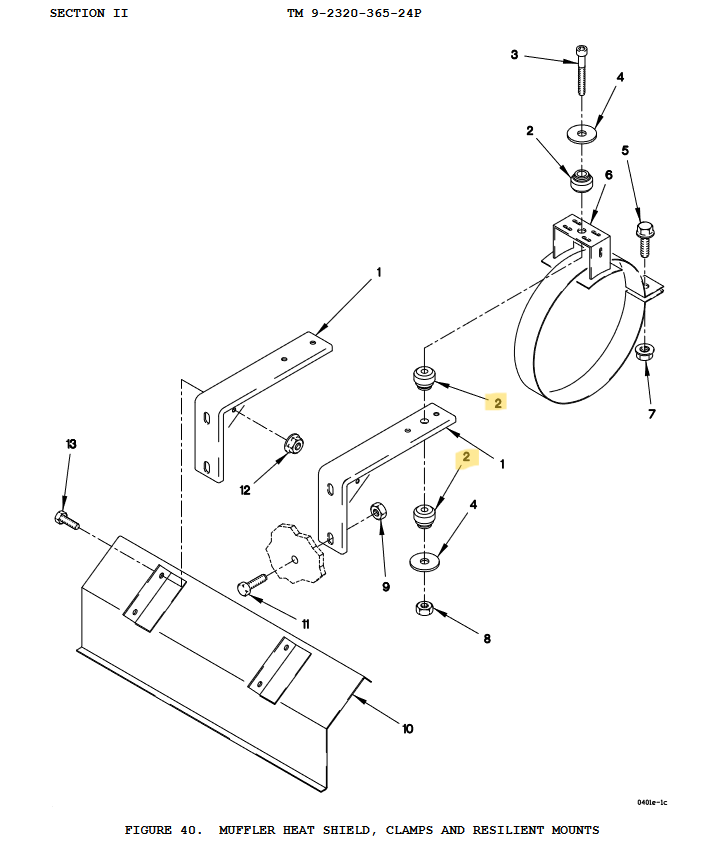

- Item #2 In Diagram
Fits: MRAP Military Truck, FMTV / LMTV ( Medium Tactical Vehicle Variants ) 2 ½ Ton Military Truck, 5 Ton Military Truck
BAE/AH-CAT 1 (MRAP LRIP10)
BAE/AH CAT 1 (MRAP)
BAE/AH CAT 2 (MRAP)
2 ½ Ton Trucks --- M1078 M1079 M1080
5-Ton Trucks --- M1083 M1084 M1085 M1086 M1087 M1088 M1089 M1090 M1091 M1095 M109
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
