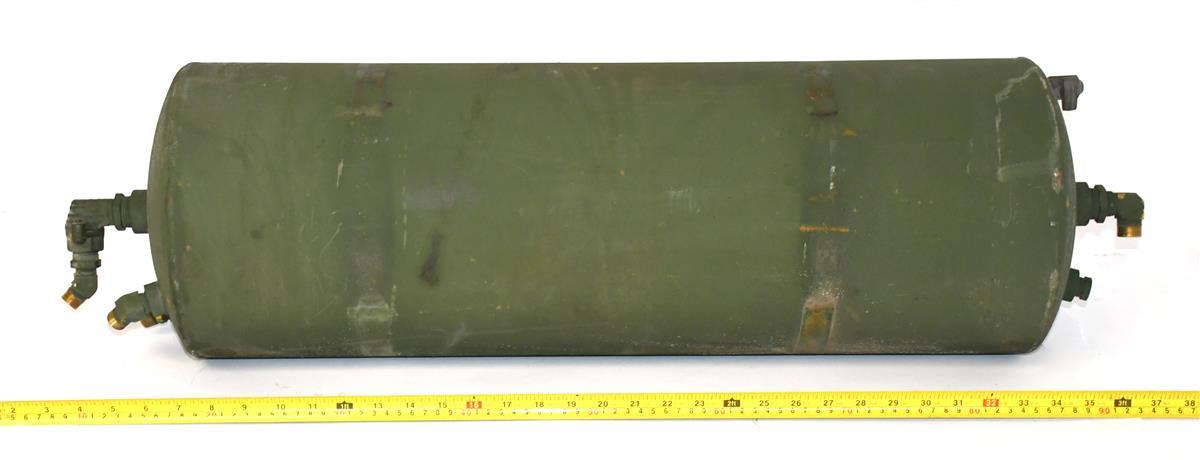

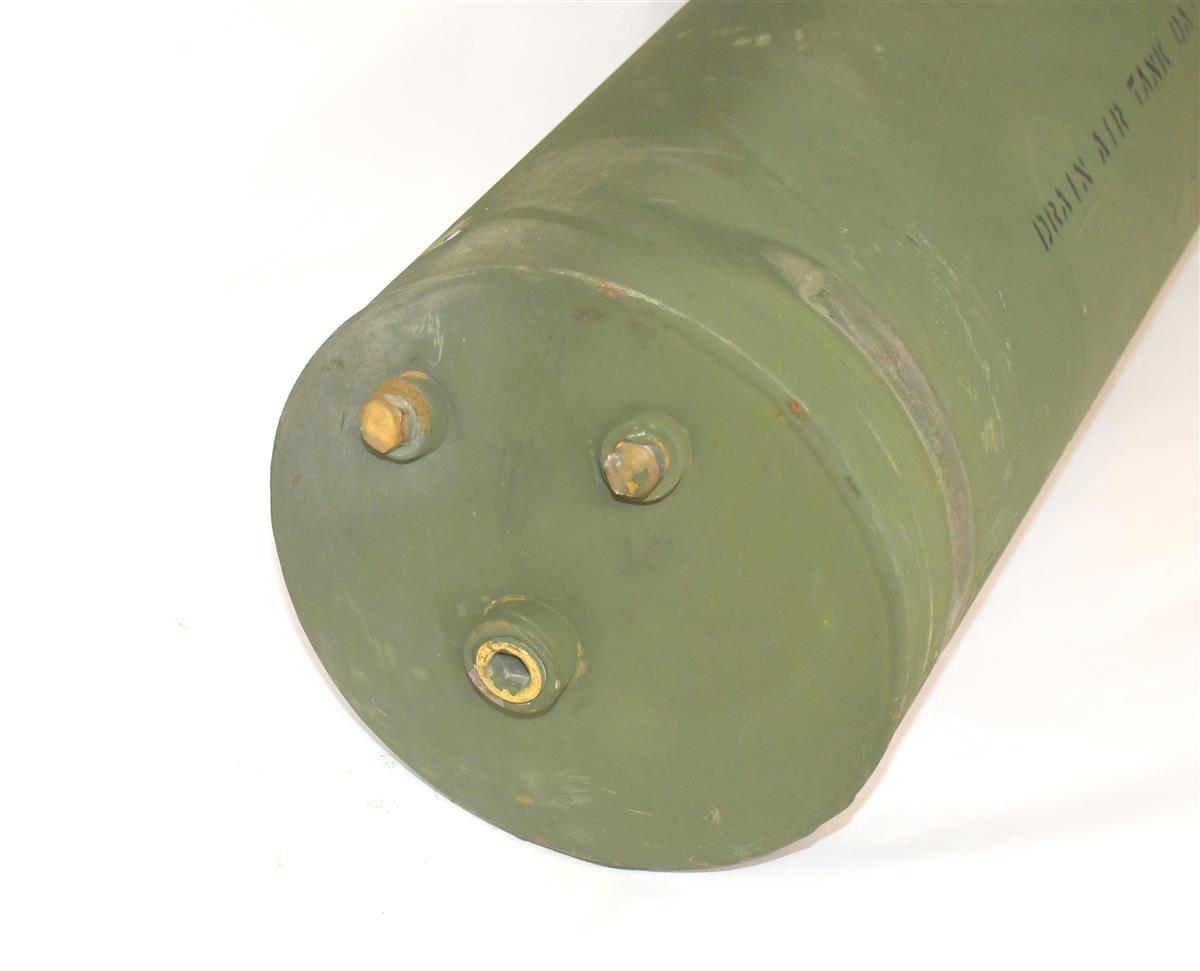

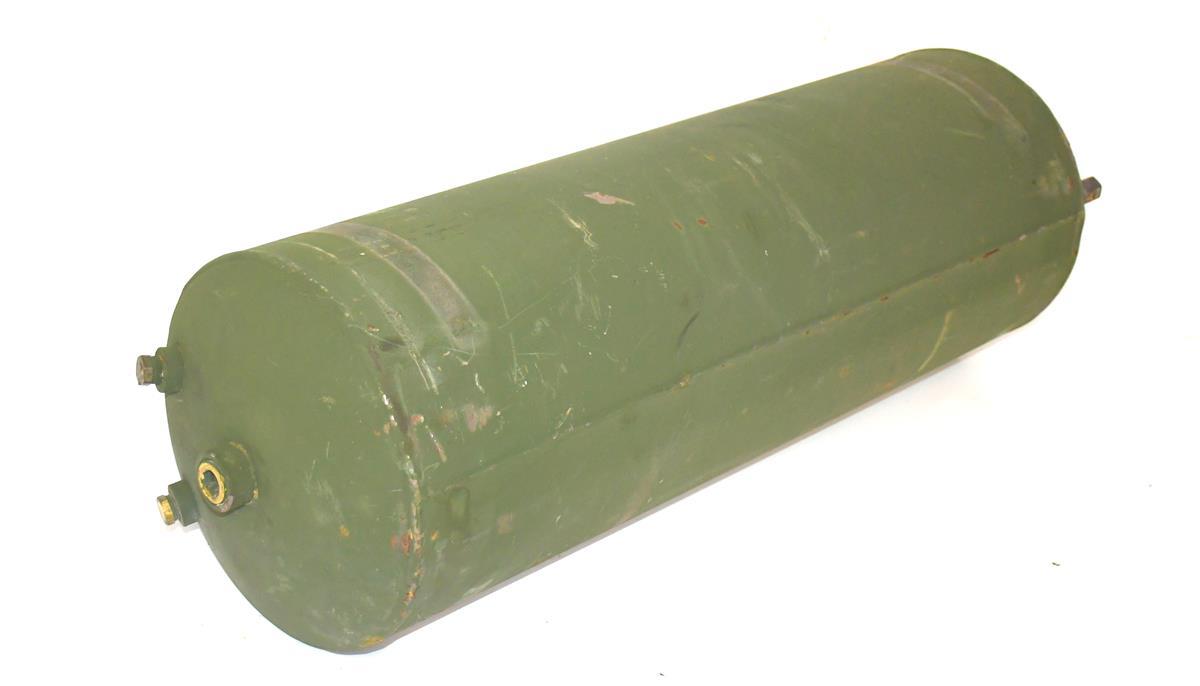

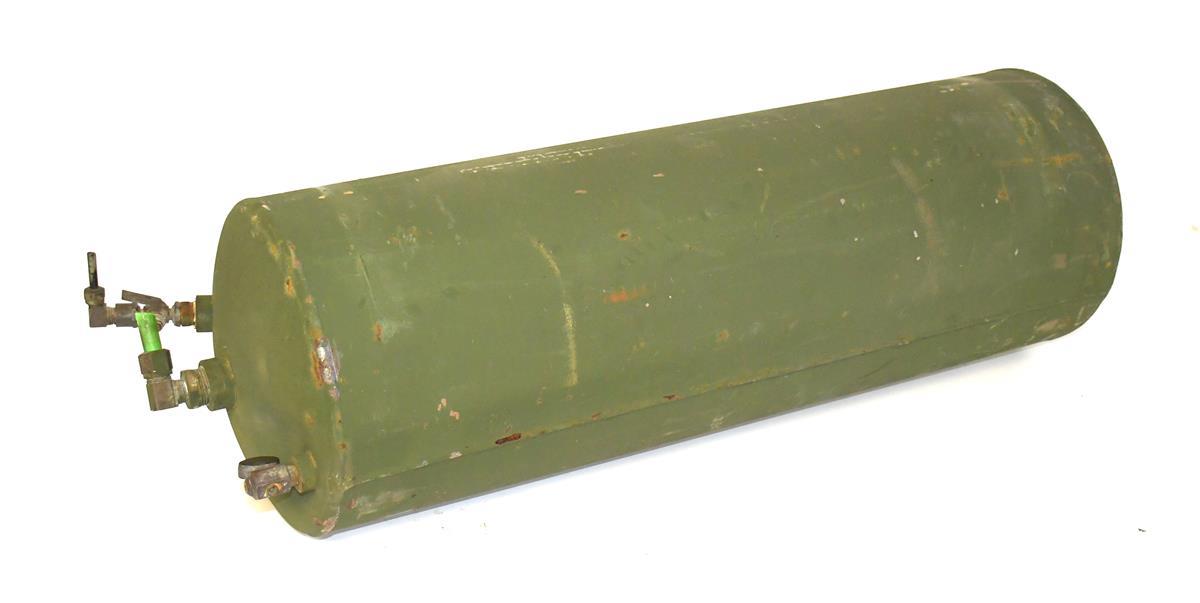

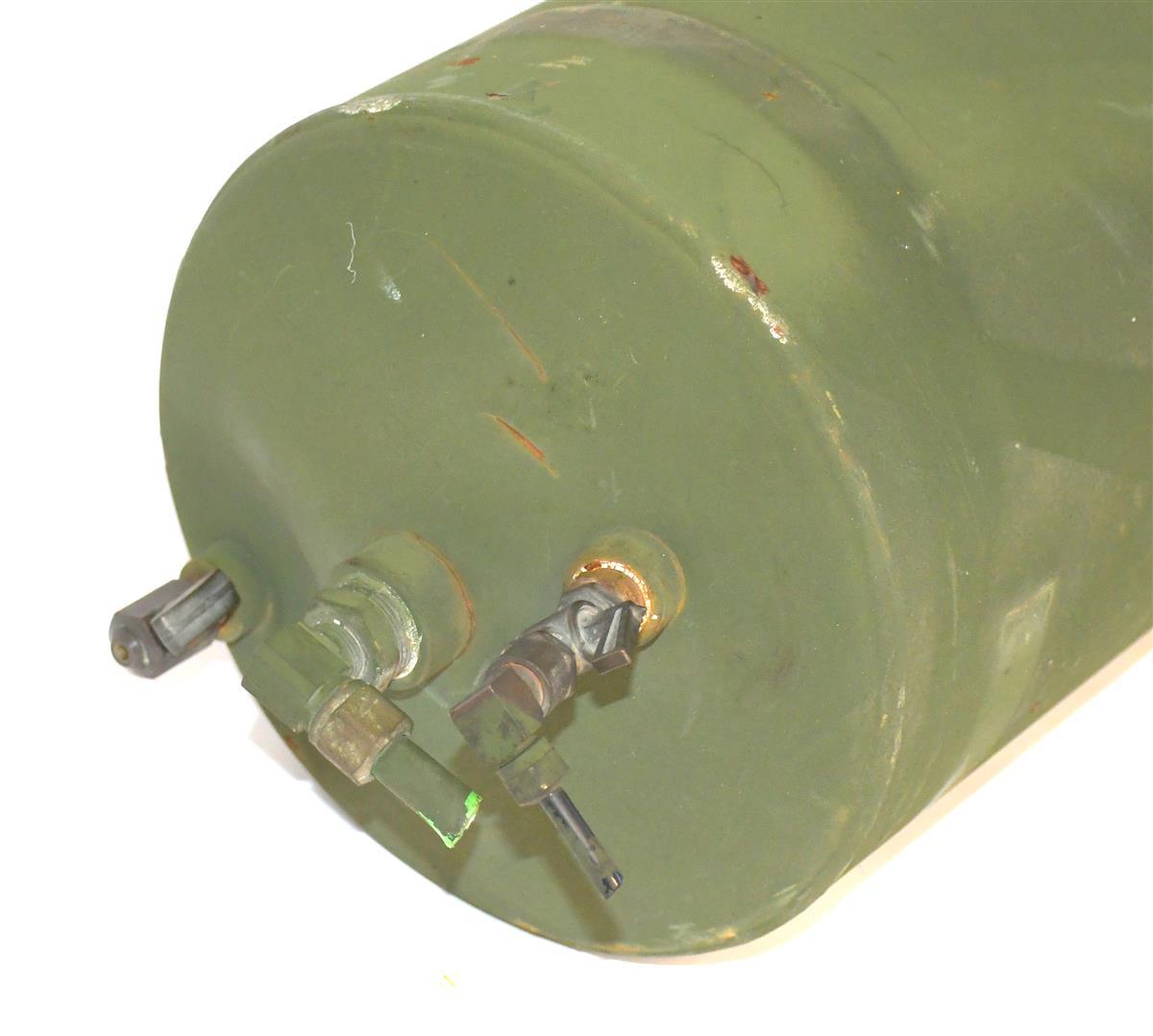

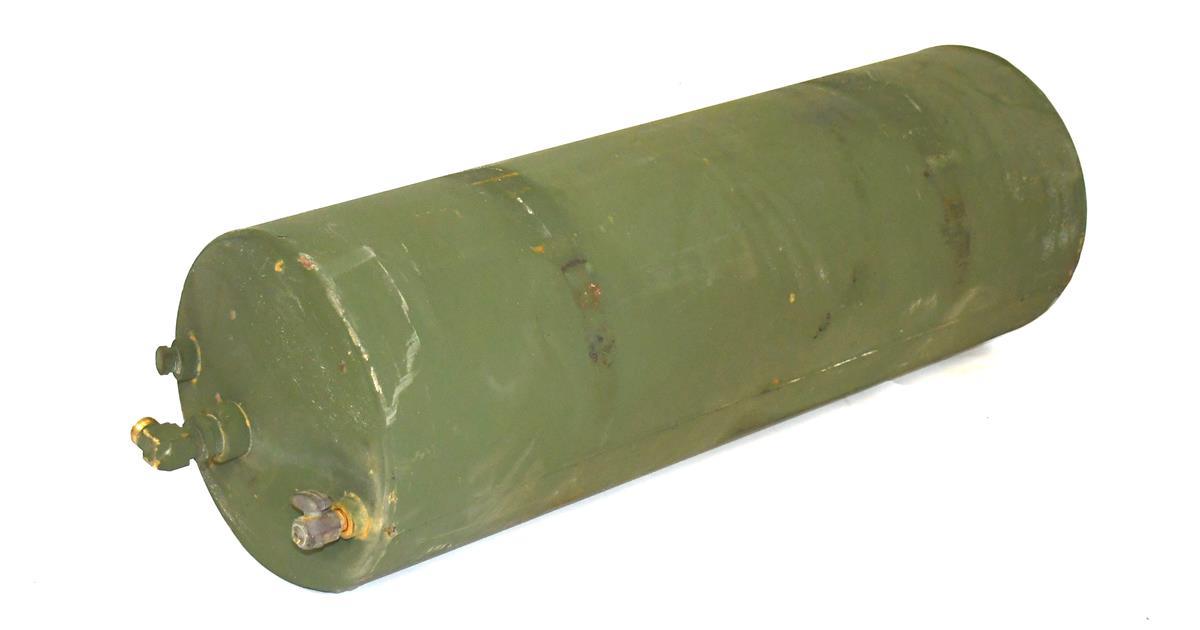

M9-1828 | Primary Air Pressure Reservoir Tank M915 M916

Primary Air Pressure Reservoir Tank M915 M916

• Overall Length is 30 inches
• Thread Size is 0.705-14 and 0.250-18
• Overall Diameter is 9.500 inches
• Opening Size is 0.750 inches and 0.250 inches

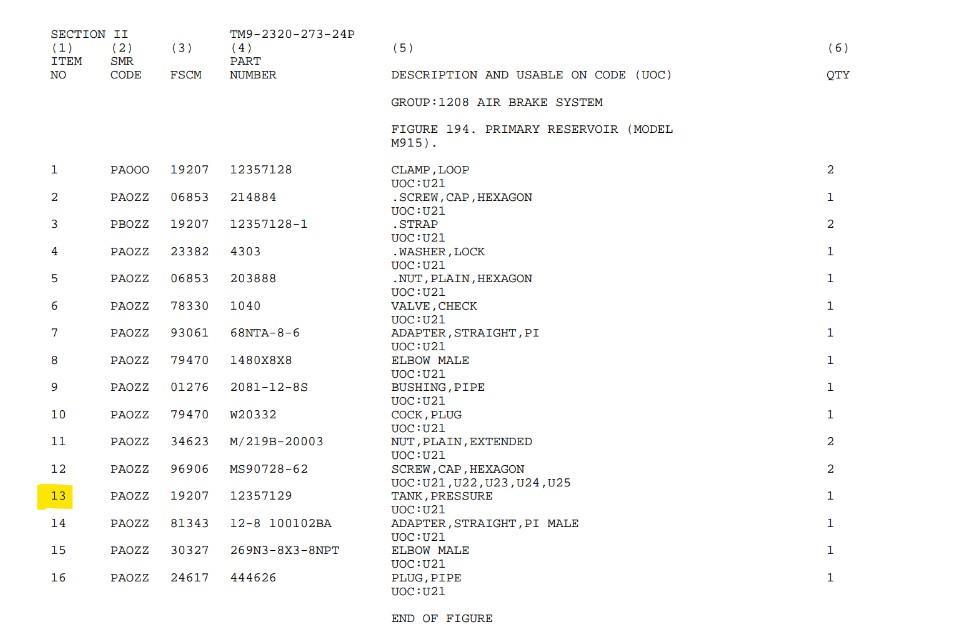

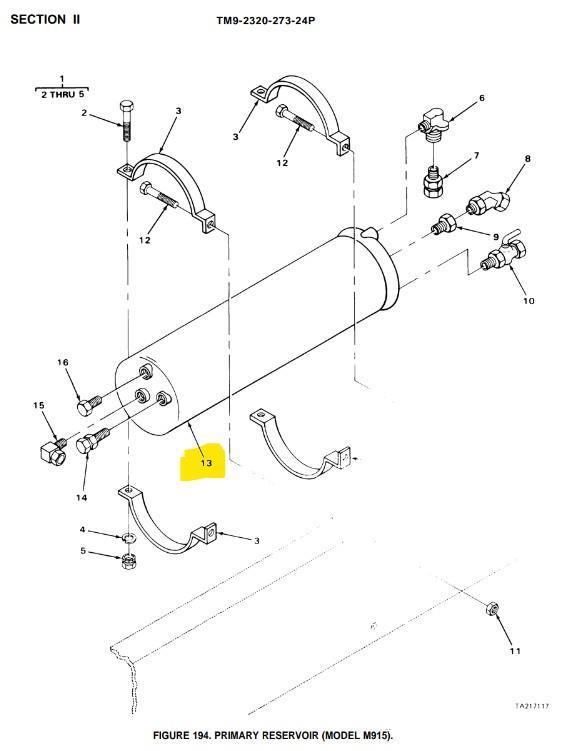

• Diagram Shown in Pictures

Fits:

M915, M916, M917, M918, M919, M920 Series Trucks

Parts we offer for sale can be exported.  Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.

We can provide container loads of parts, loaded and shipped from our facility.
