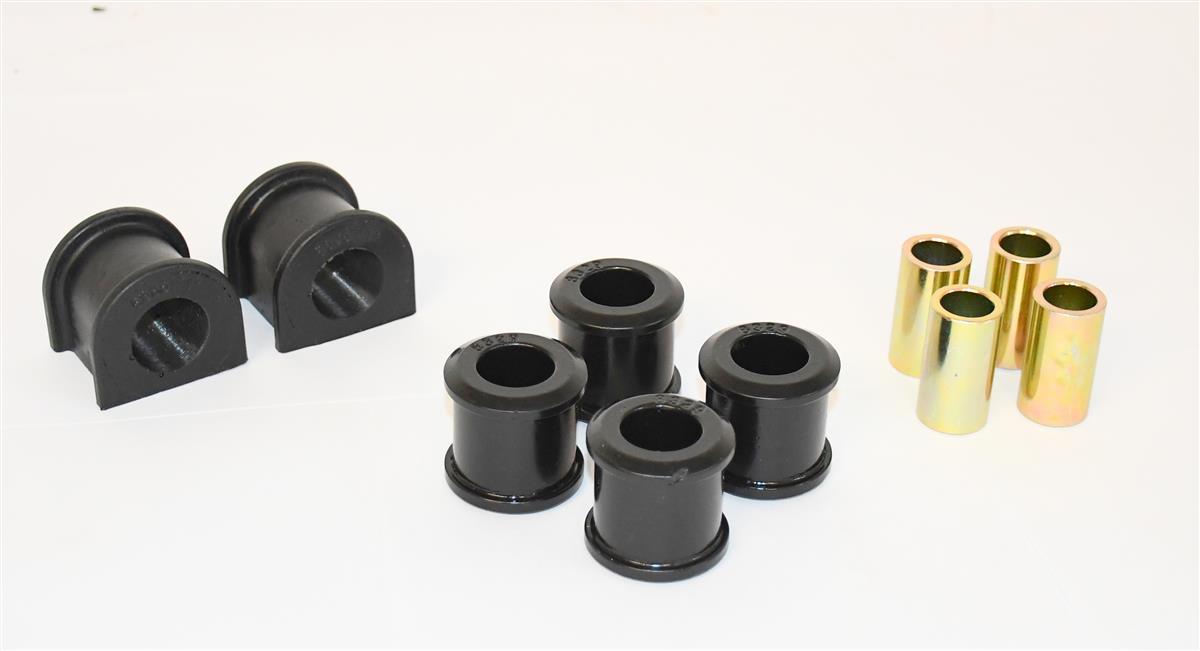

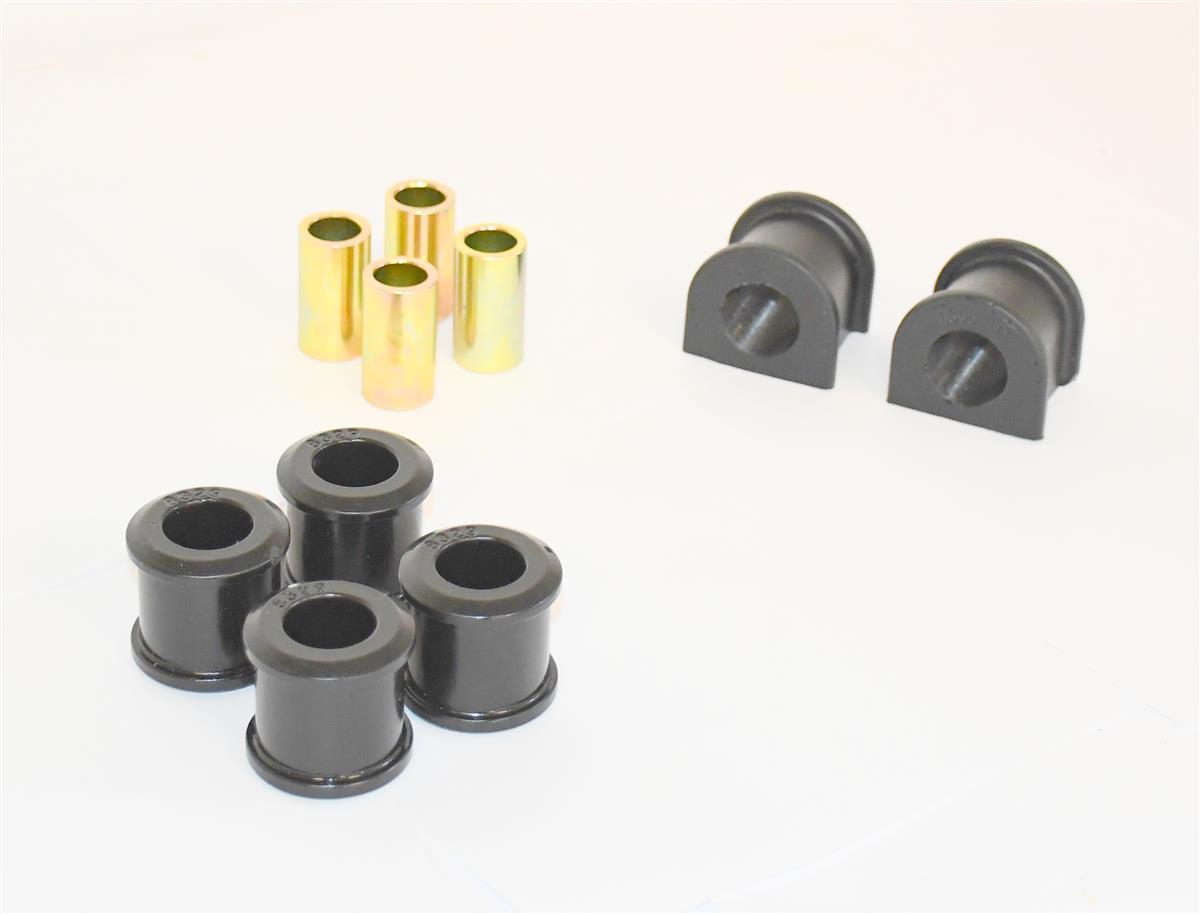

Front Sway Bar Bushing Replacement Kit HMMWV

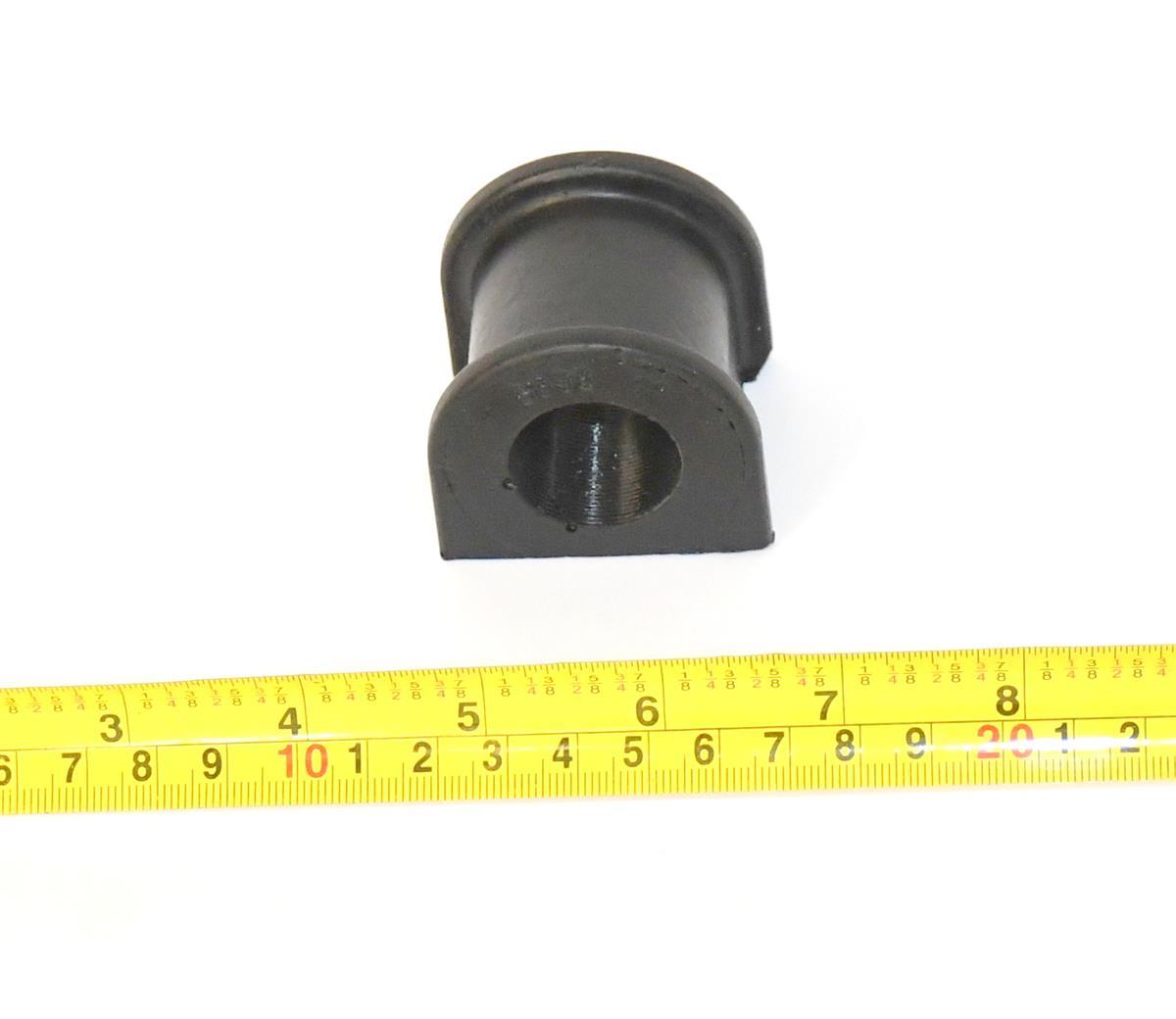

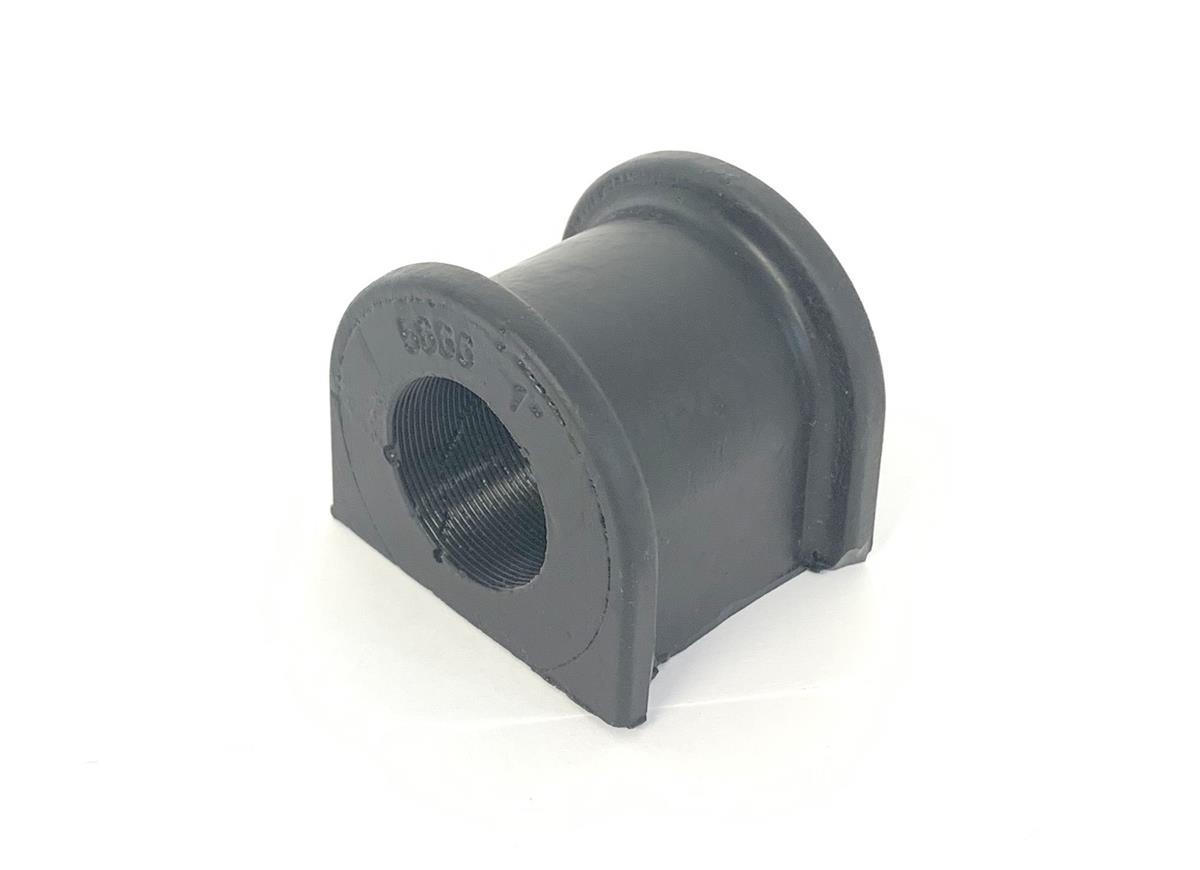

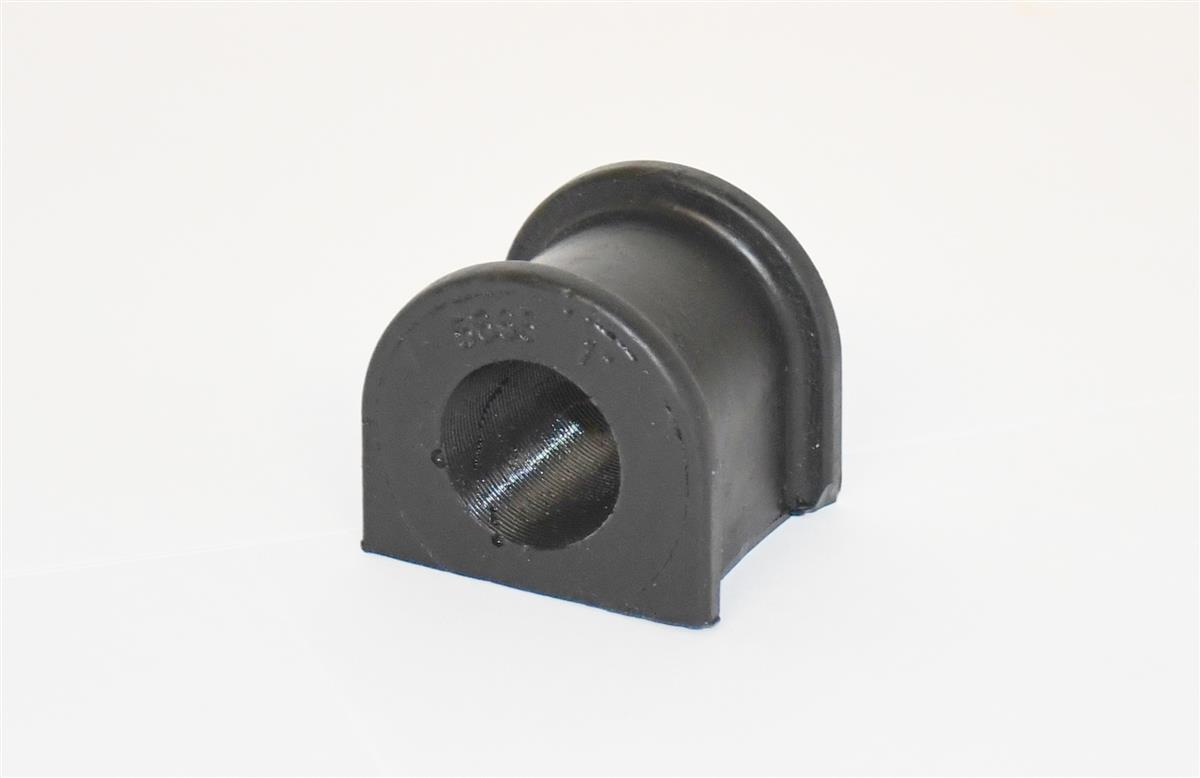

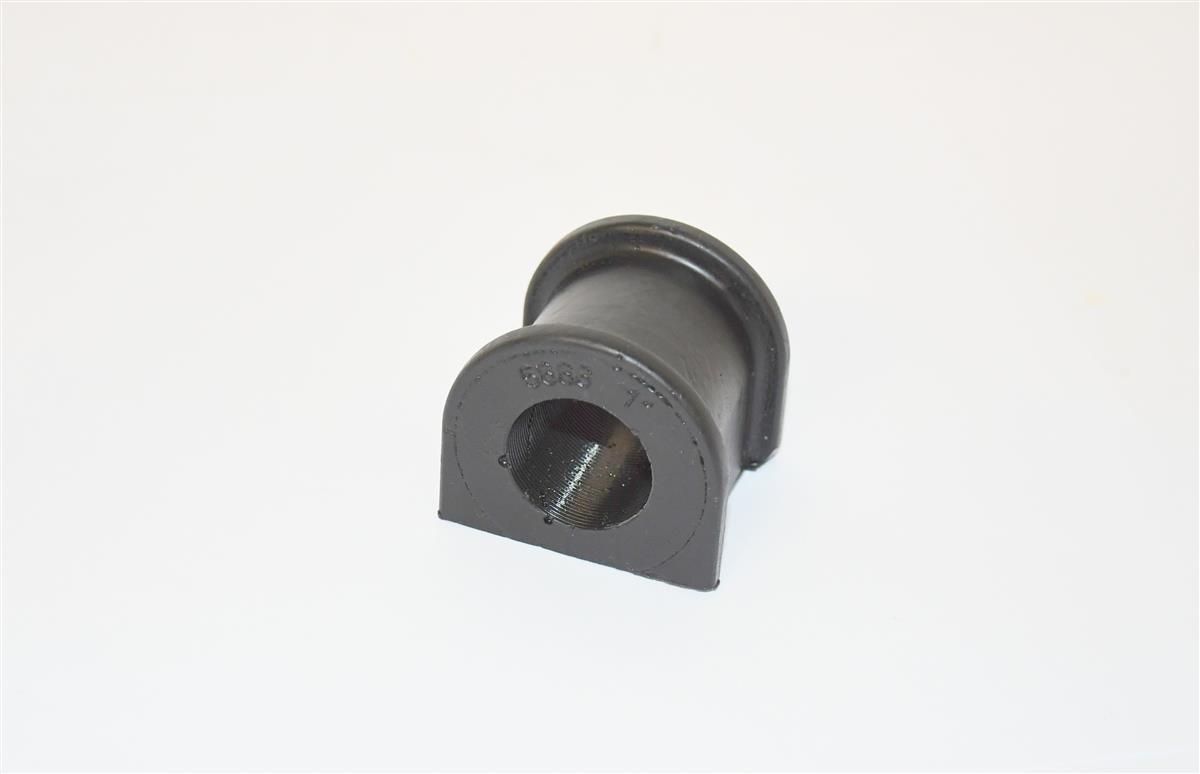

Stabilizer Bar Bushing Part Number - 12338317
- Hole Diameter is 0.97 inches Min and 1 inch Maximum
- Groove Depth is 1.150 inches Minimum and 0.210 inches Maximum
- Groove Width is 1.200 icnhes Min and 1.300 inches Maximum
- Flange Thickness is 0.170 inches Minimum and 0.200 Maximum
- Overall Height is 1.600 inches Minimum and 1.640 inches Maximum
- Large Flange Radius is 0.930 inches Min and 0.960 inches Maximum
- Hole Center to Flat End Length is 0.750 inches and 0.780 inches Maximum
- Rubber Material

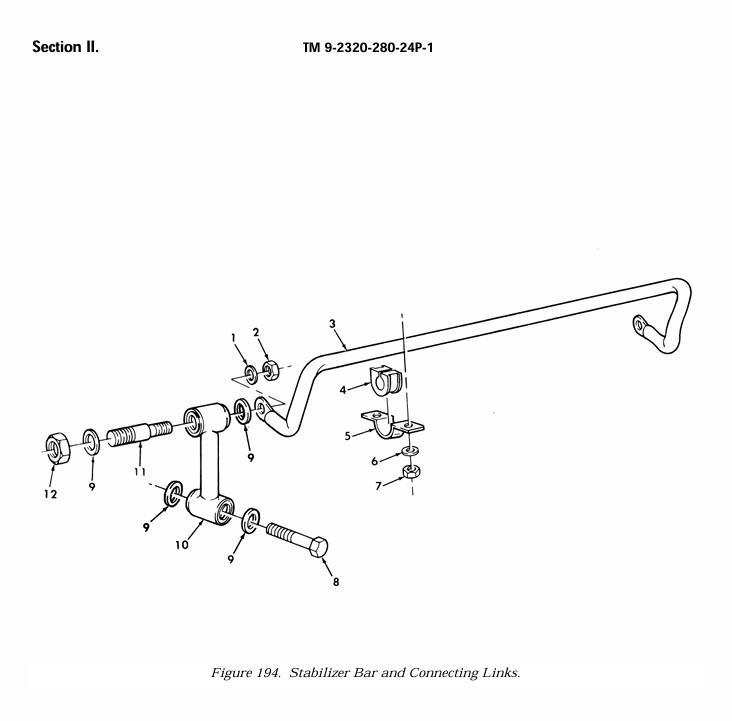

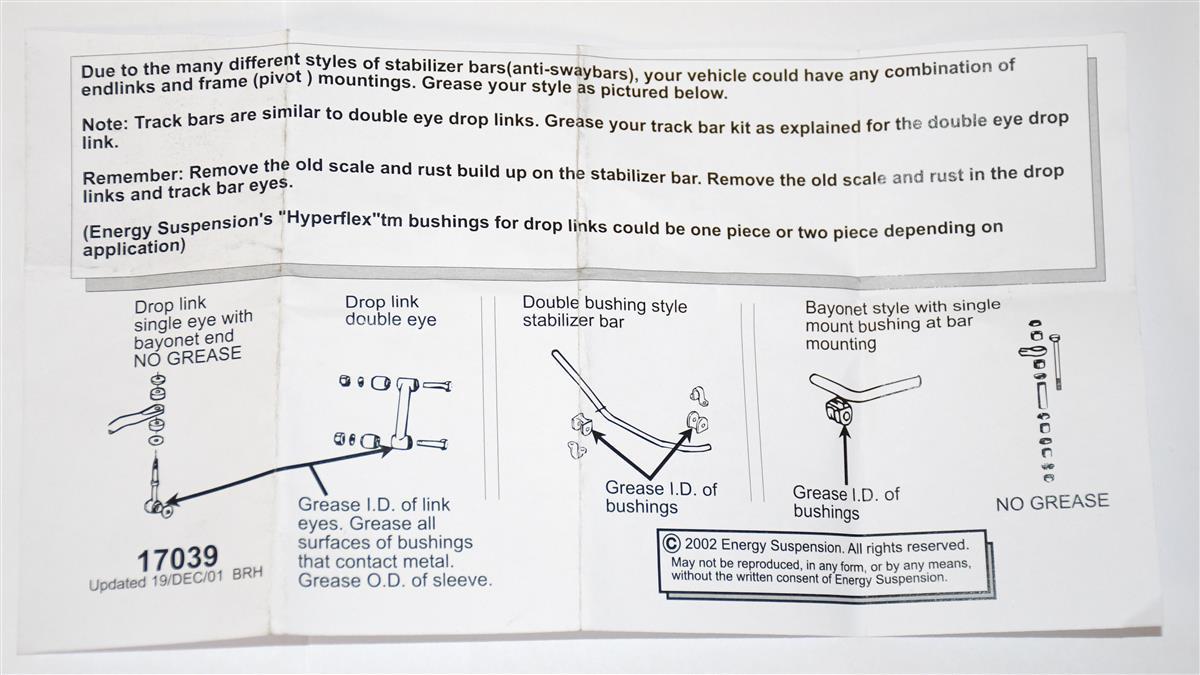

- Diagram Shown in Pictures

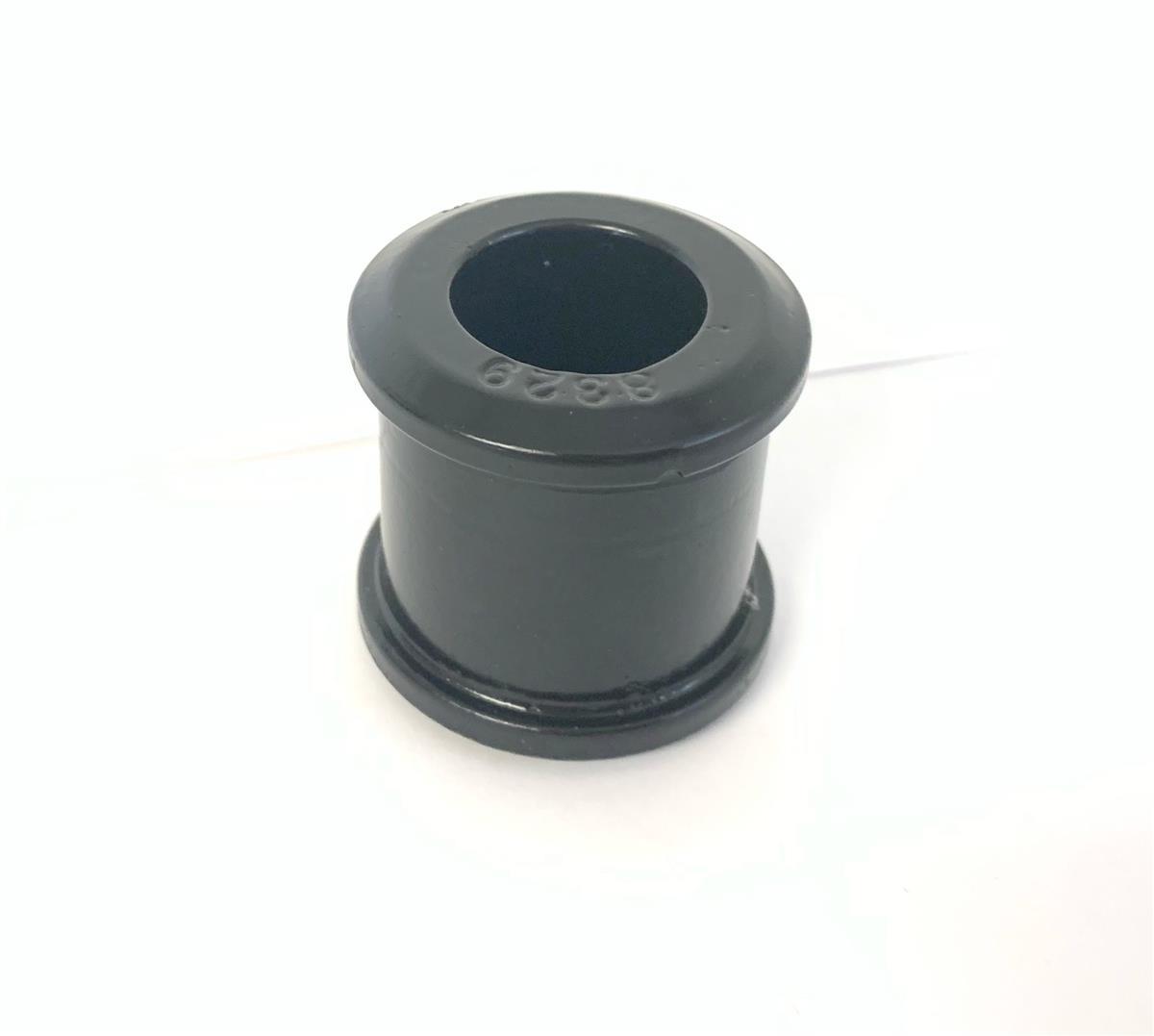

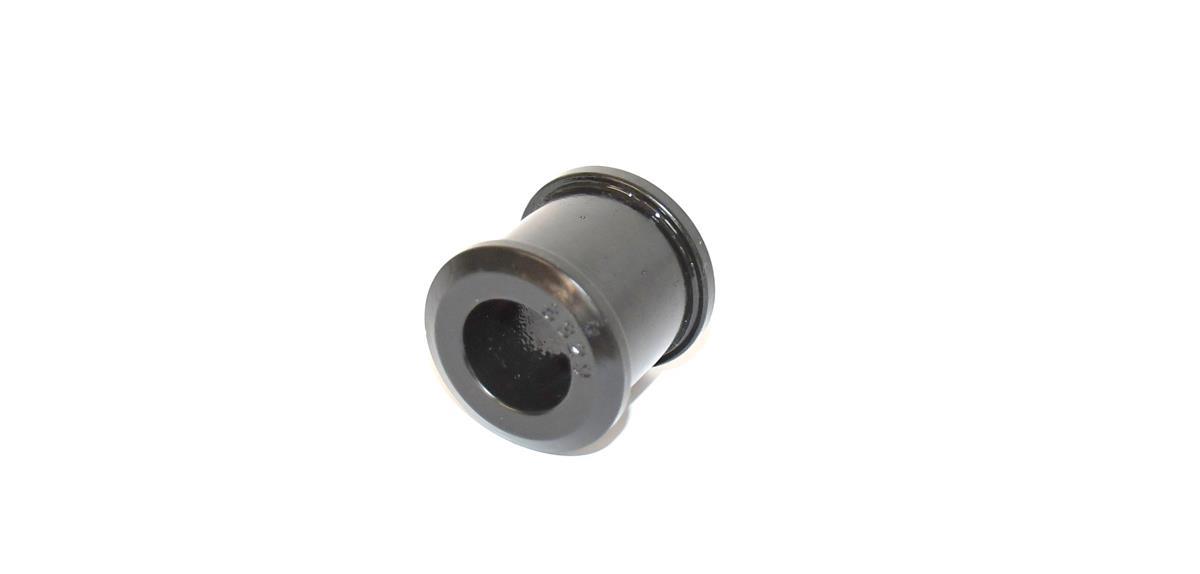

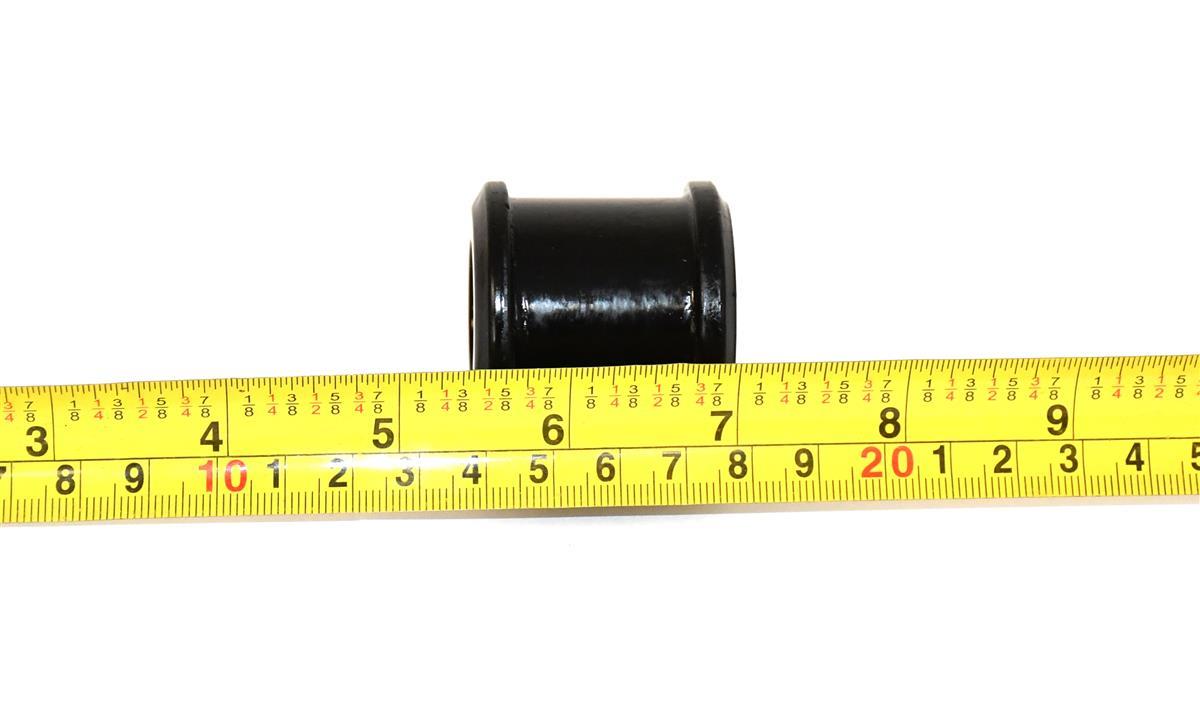

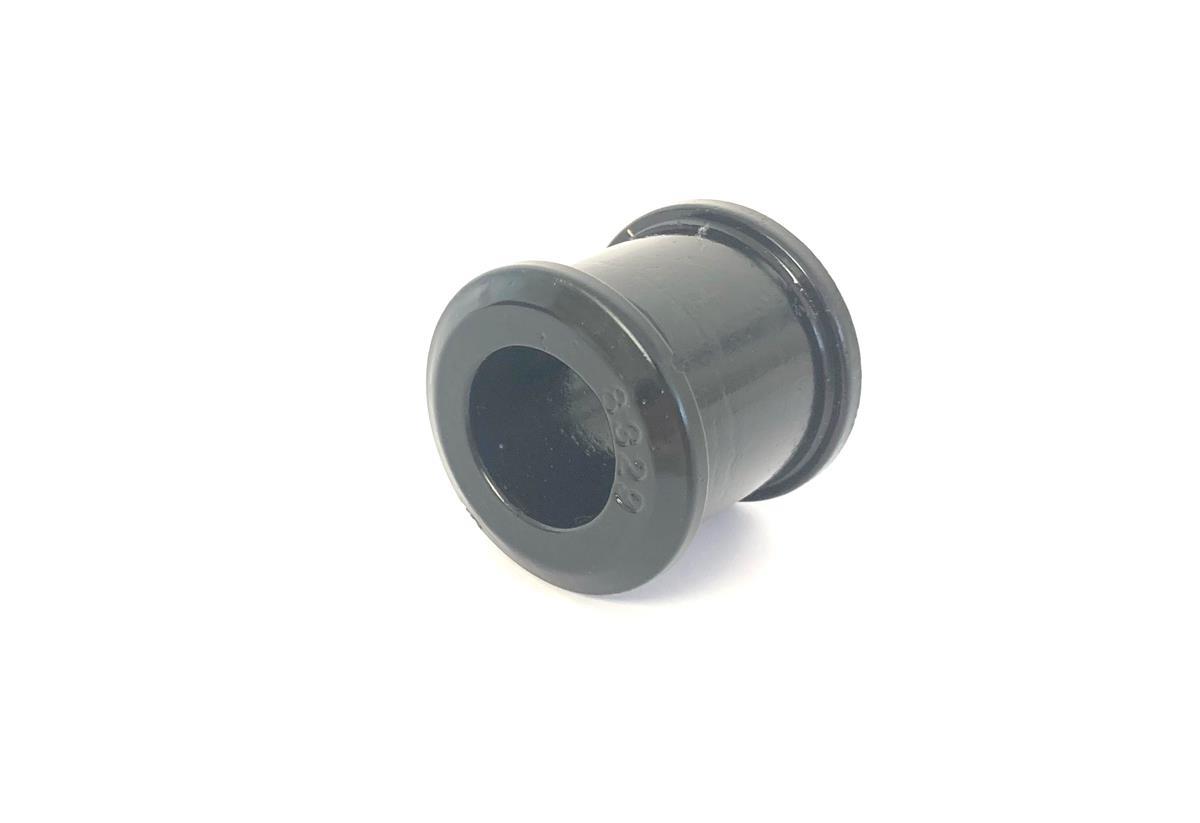

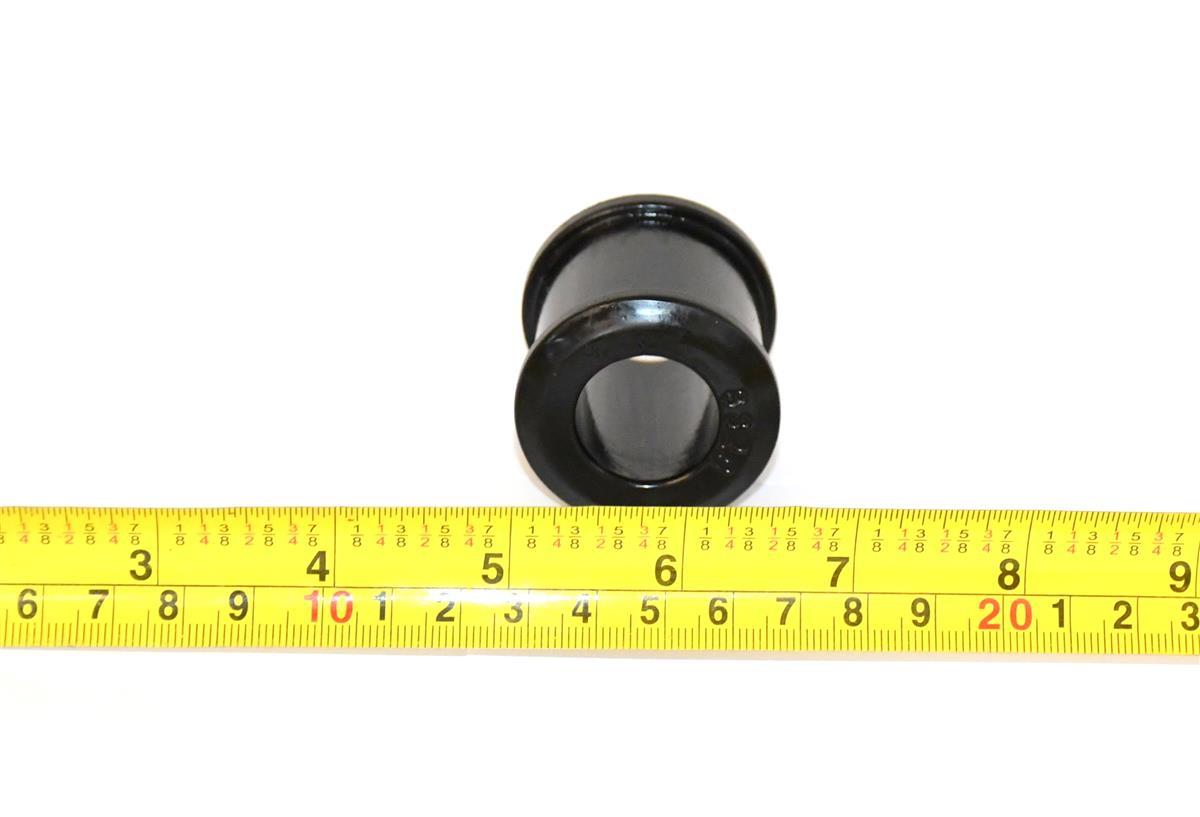

Body Mount Bushing Part Number - 12598952
- Rubber Material
- Diagram Shown in Pictures
Click Here For Stabilizer Bar Lower Front HMMWV
Click Here For Connecting Rod Linkage Rigid HMMWV
FITS: HMMWV Models
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
