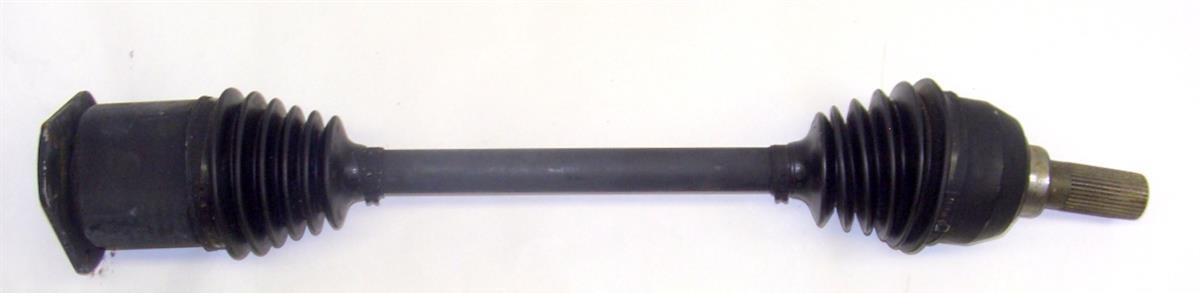

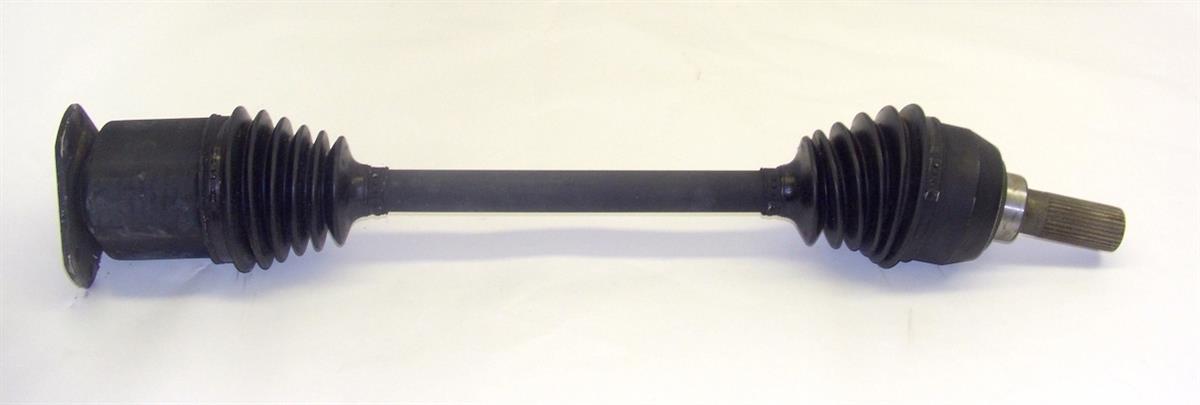

Left Front Position Halfshaft Axle Assembly HMMWV
- Hole Diameter 0.430 IN MIN 0.450 IN MAX
- Overall Length 25.000 IN MIN 25.470 IN MAX
- Flange Outside Diameter 2.948 IN MIN 2.952 IN MAX
- First and Second End Spline Length 3.210 IN MIN 3.250 IN MAX
- Second End Spline Minor Diameter 1.282 IN
- Second End Spline Major Diameter 1.375 IN
- Second End Pitch Diameter 0.071 IN MIN 0.073 IN MAX
- Second End Gear Outside Diameter 1.375 IN

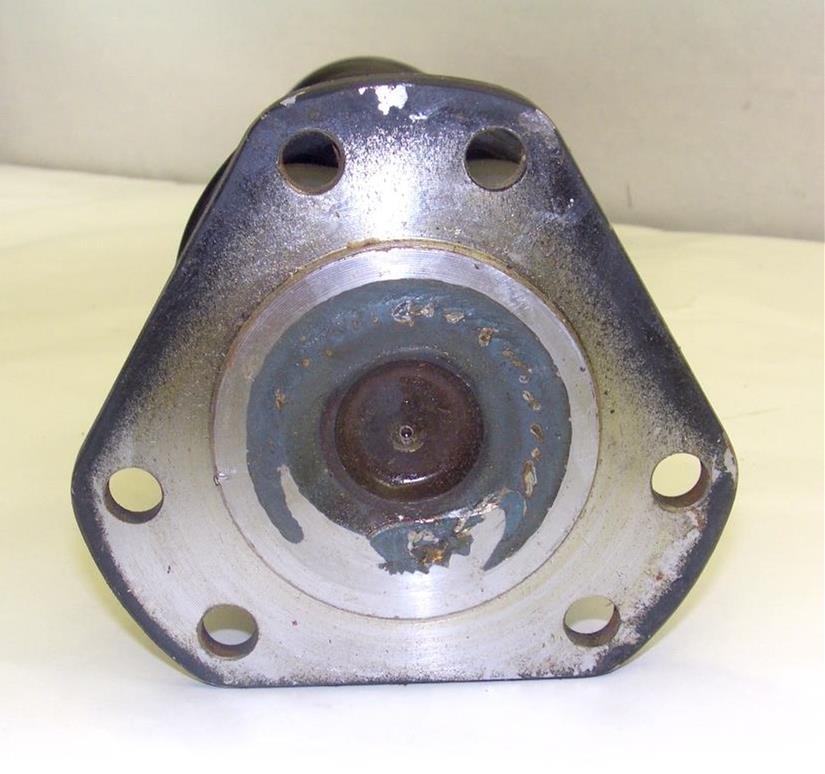

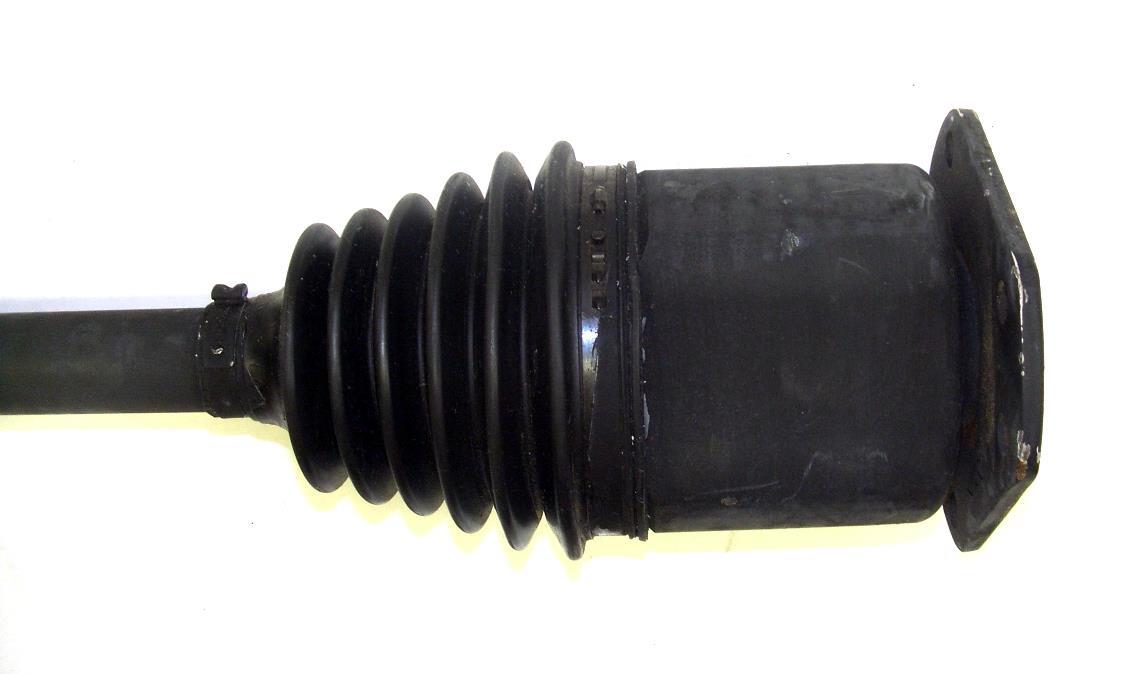

- First End Flanged

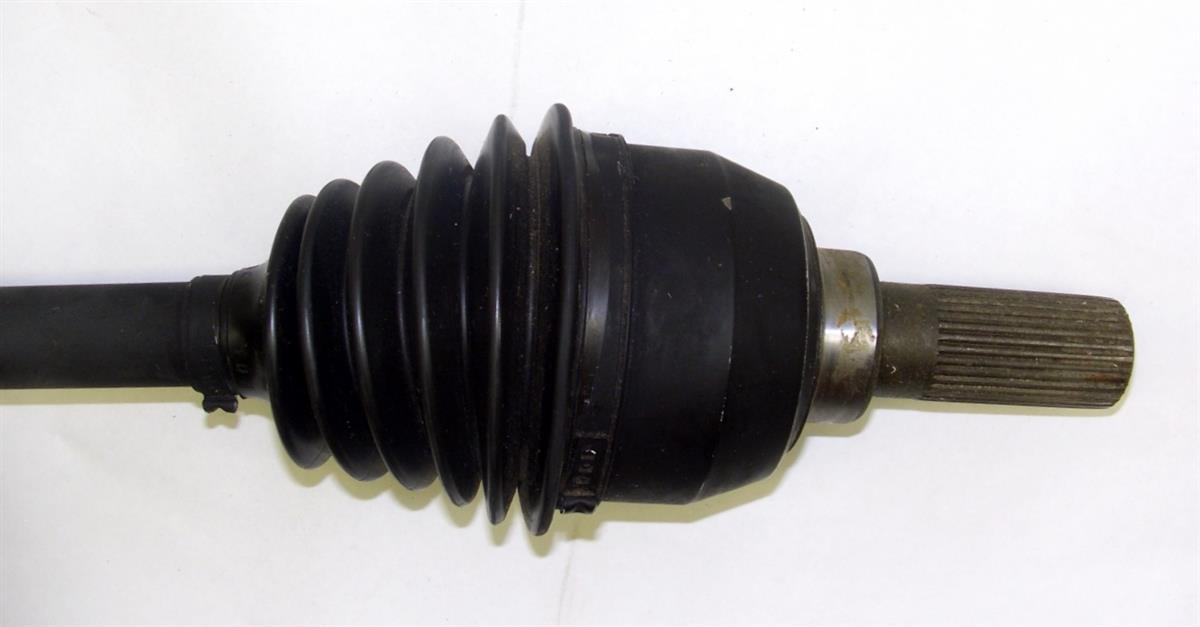

- Second End Splined
- 6 QTY Unthreaded Mounting Hole
- Second End Gear Teeth QTY 32
- Second End Gear Teeth Pressure Angle 45.0 Degrees
- Flange Overall Thickness 0.303 IN MIN 0.355 IN MAX
- Flange Thickness at Mounting Hole 0.180 IN MIN 0.200 IN MAX
- 32 Spline Count
Click Here for Front RH Half Shaft Assembly HMMWV
Click Here for Rear Axle Half Shaft 12,000 lb. OEM HMMWV
Fits: HMMWV Models
M1025 M1025A1 M1025A2 M1026 M1026A1 M1035 M1035A1 M1035A2 M1037 M1038 M1038A1 M1042 M1043 M1043A1 M1043A2 M1044 M1044A1 M1045 M1045A1 M1045A2 M1046 M1046A1 M1097 M1097A1 M1097A2 M1121 M1123 M966 M966A1 M996 M996A1 M997 M997A1 M997A2 M998 M998A1 M1151 M1151A1 M1167
Hummer, Humvee hmmwv, hummer, hummvee, H1, AM General
