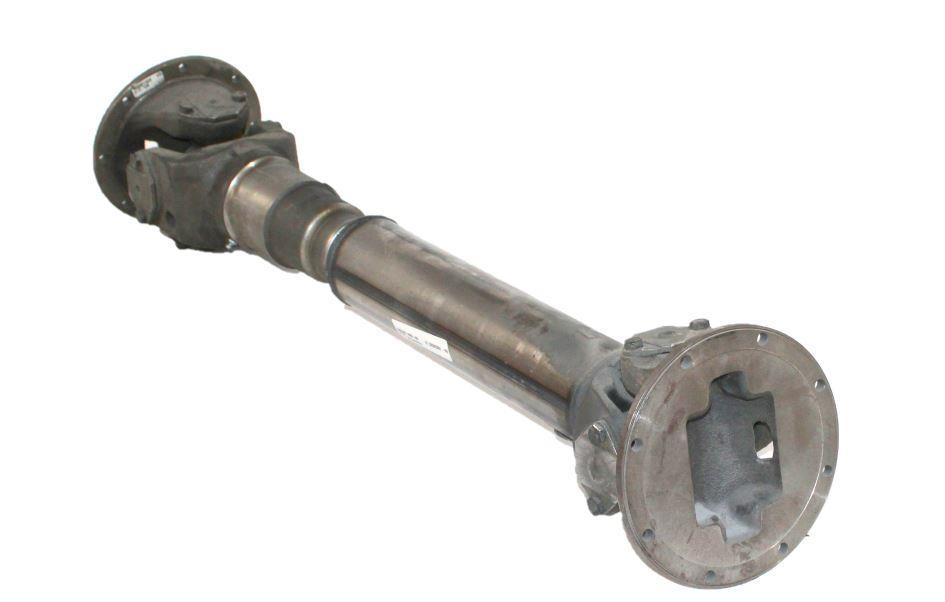

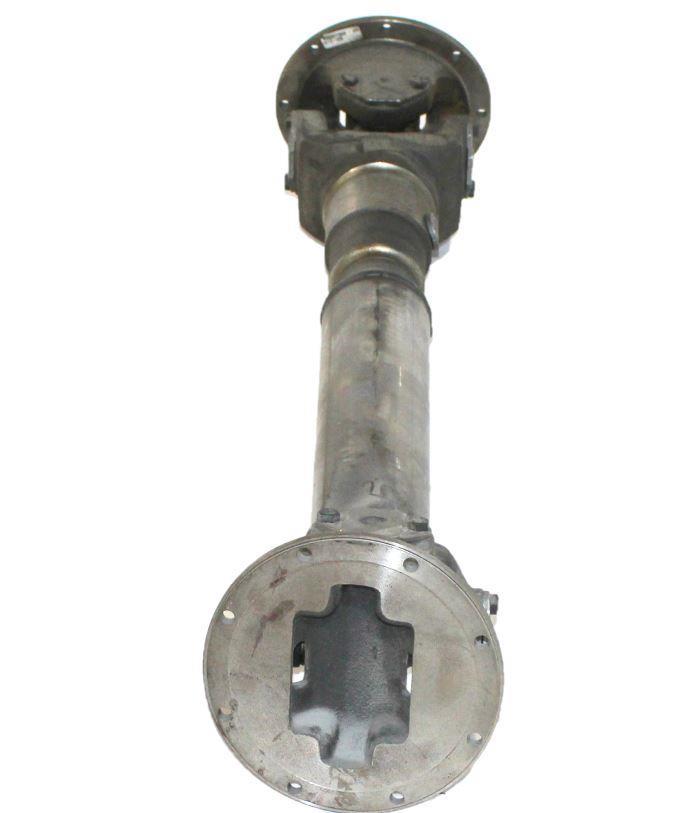

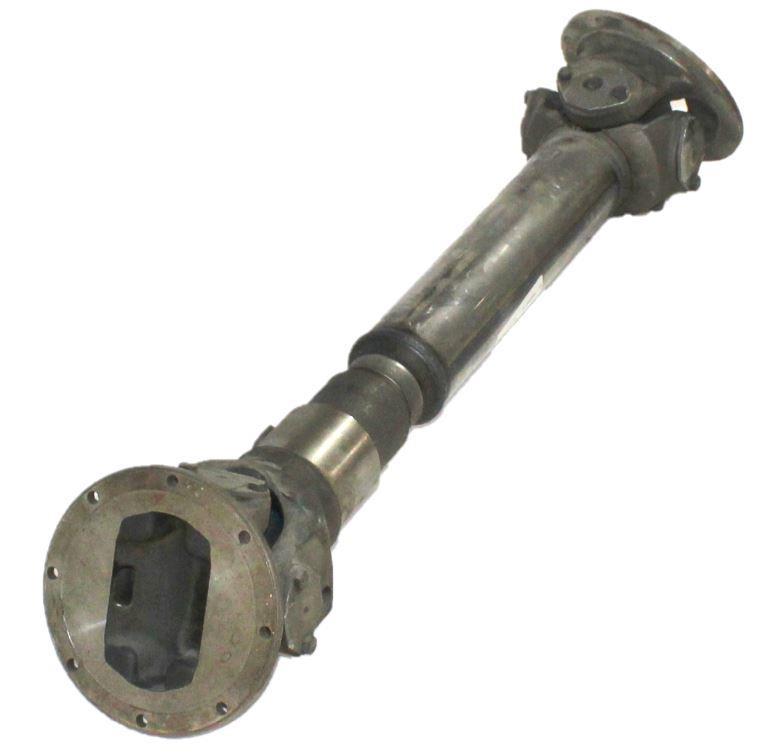

Driveshaft Transfer Case to Forward Rear Axle M54 M809 M939A2
- Collapsed Length: 43 Inches
- Shaft Length: 34 inches
- Shaft Height: 7 inches
- Shaft Diameter is 3 inches
- Overall Length is 45 inches
- Extended Length: 50 Inches

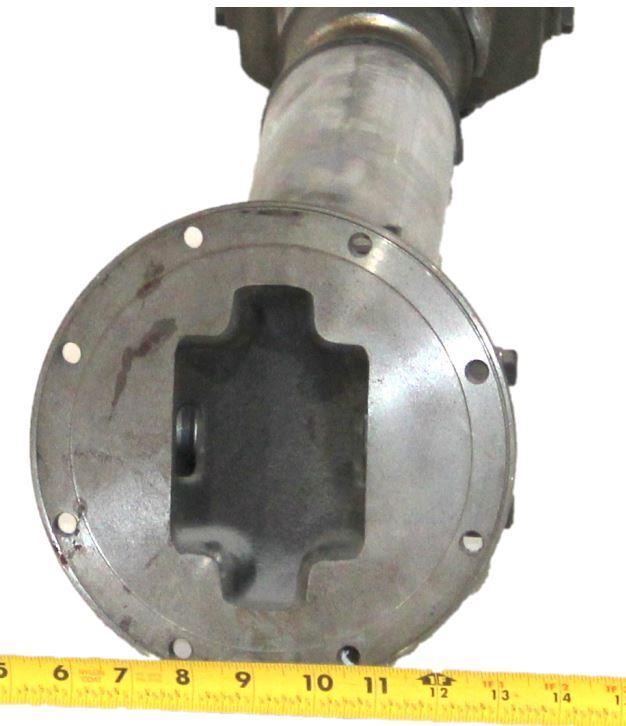

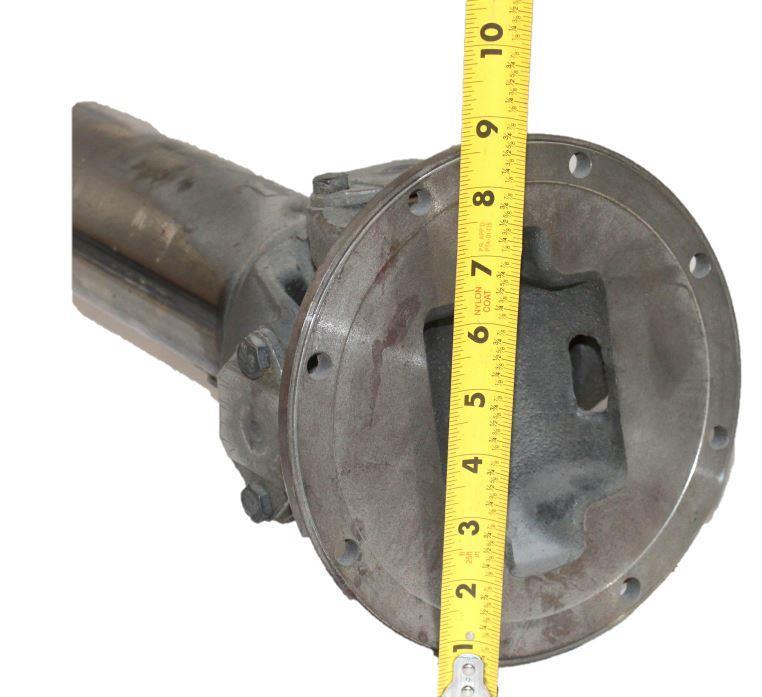

- Flange Height: 8 inches
- Flange Width: 8 inches
- Flange with 8 mounting holes

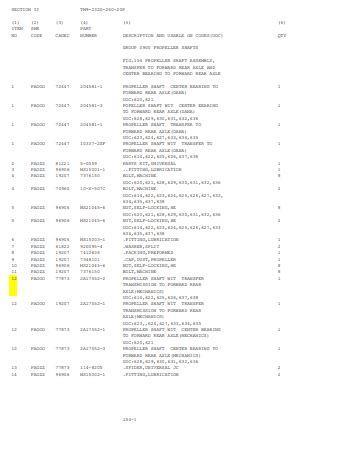

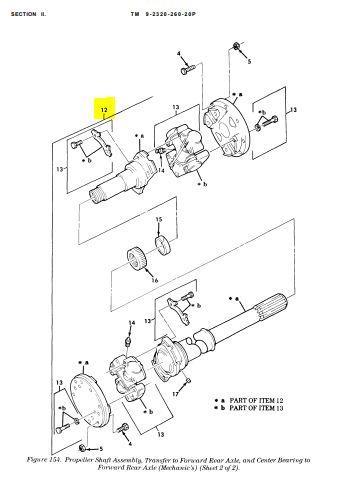

- Item Number 12 in Diagram
Click Here for Driveshaft Carrier Bearing for Extra-Long Wheel Base Transfer Case Forward Rear Axle M809 M939A2
Click Here For Intermediate Driveshaft Forward (Middle) Axle to Rearmost Axle
Click Here For Drive Shaft With Universal Joints for 5 Ton Truck M809 M939A1 M939A2
Click here for U Joint Parts Kit Drive Shaft Propeller Shaft Universal Joint M939 M809 M915
Fits: 5 Ton 6x6 Military Truck
M939 M939A1 M923 M923A1 M925 M925A1 M927 M927A1 M929 M929A1 M930 M930A1 M931 M931A1 M54 M809 M813 M814 M816 M817 M818 M820 5-Ton Trucks
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
