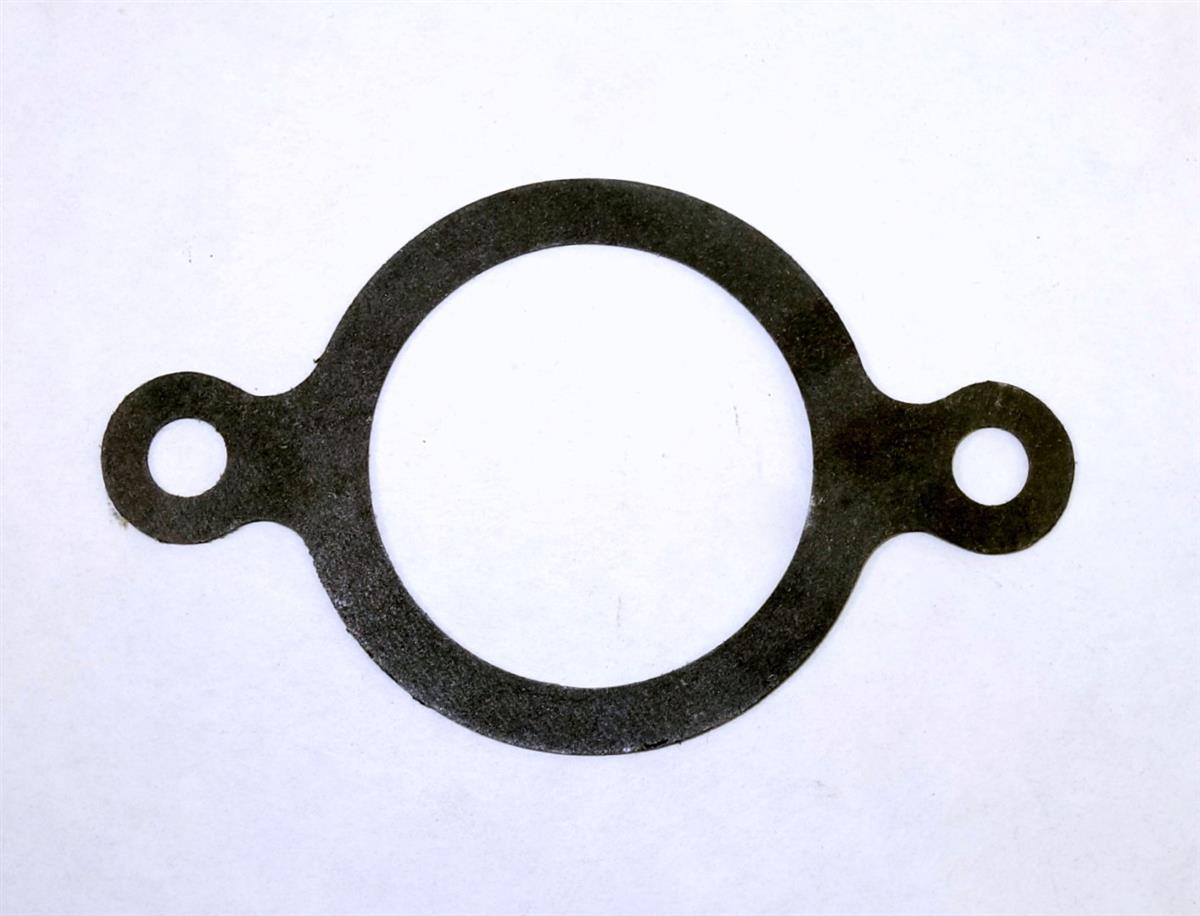

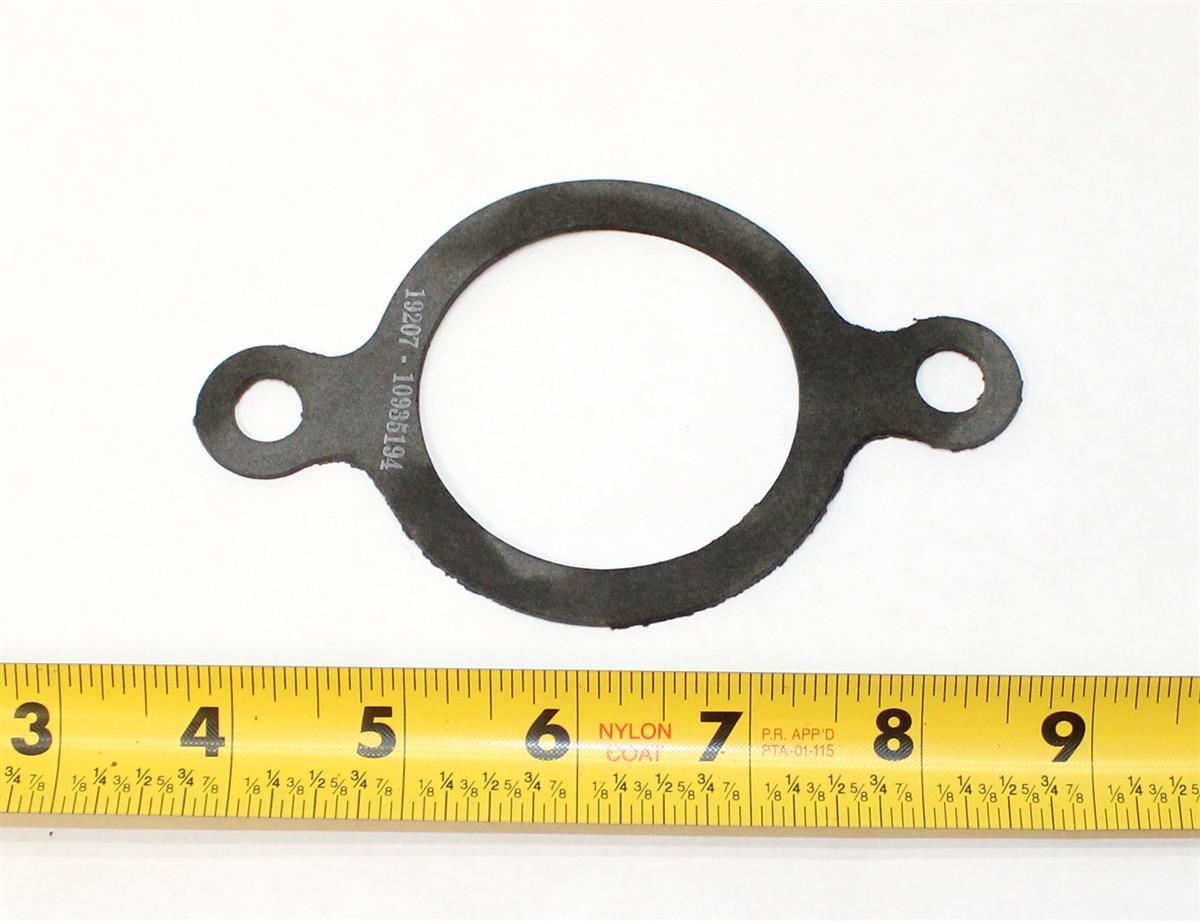

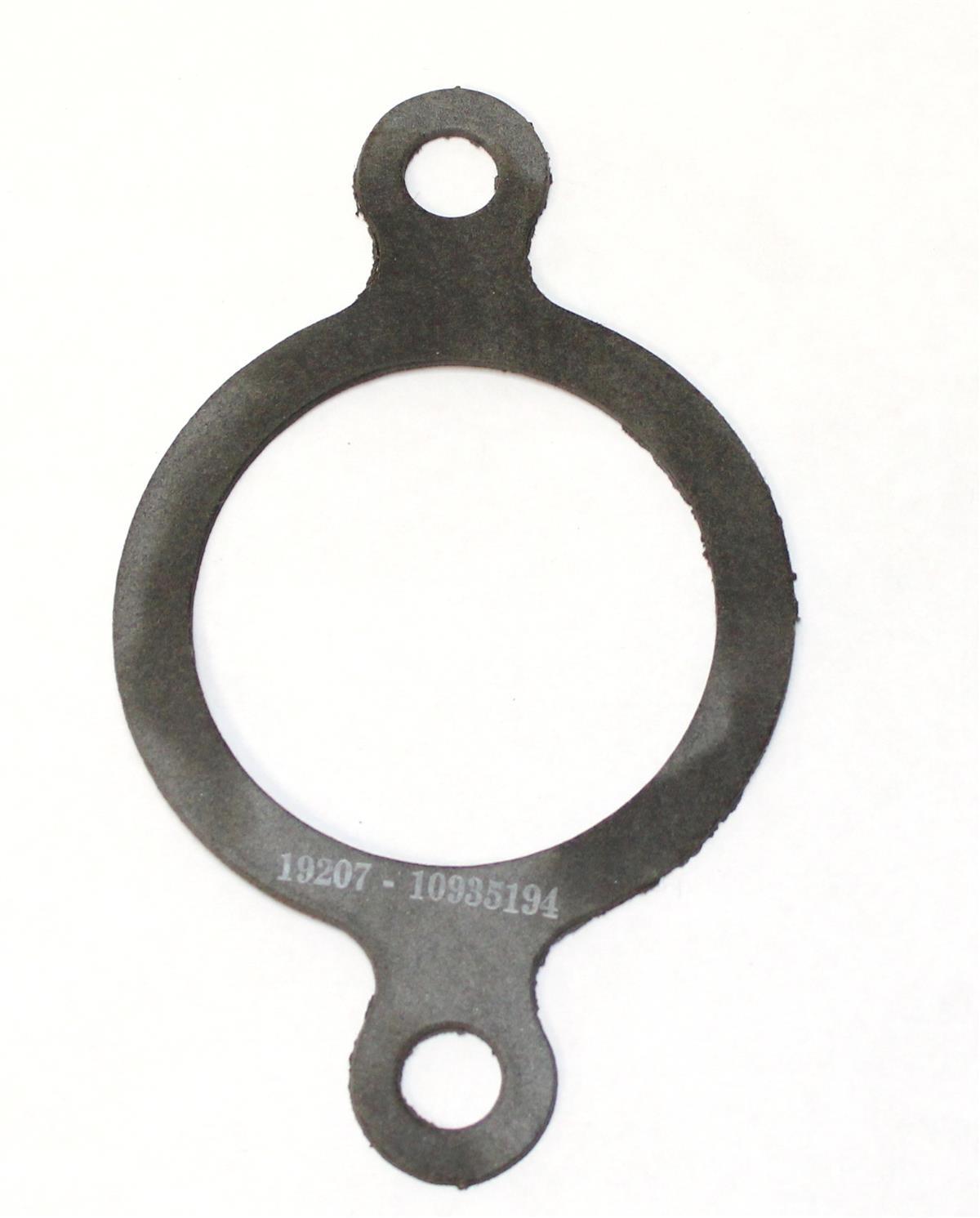

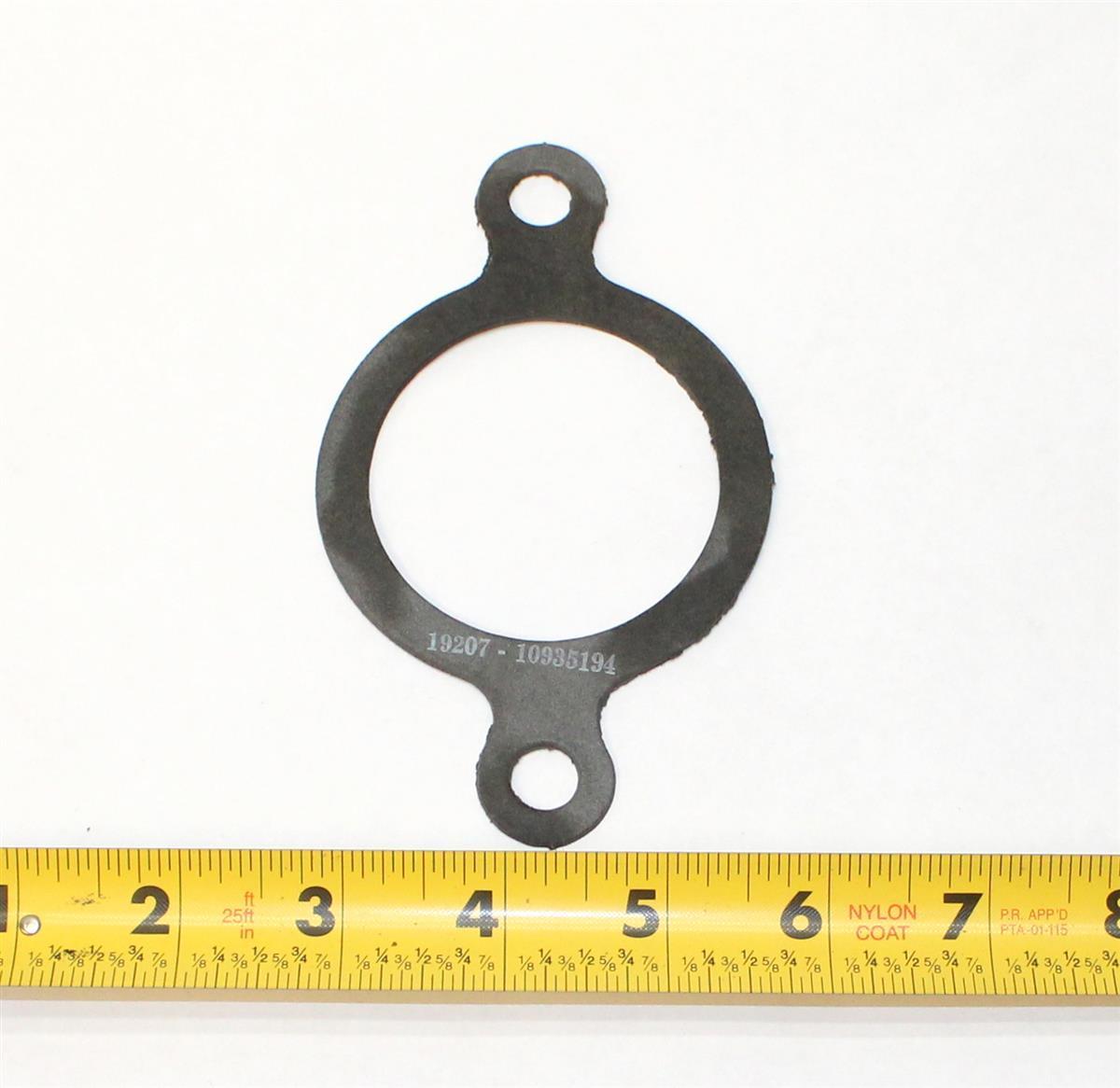

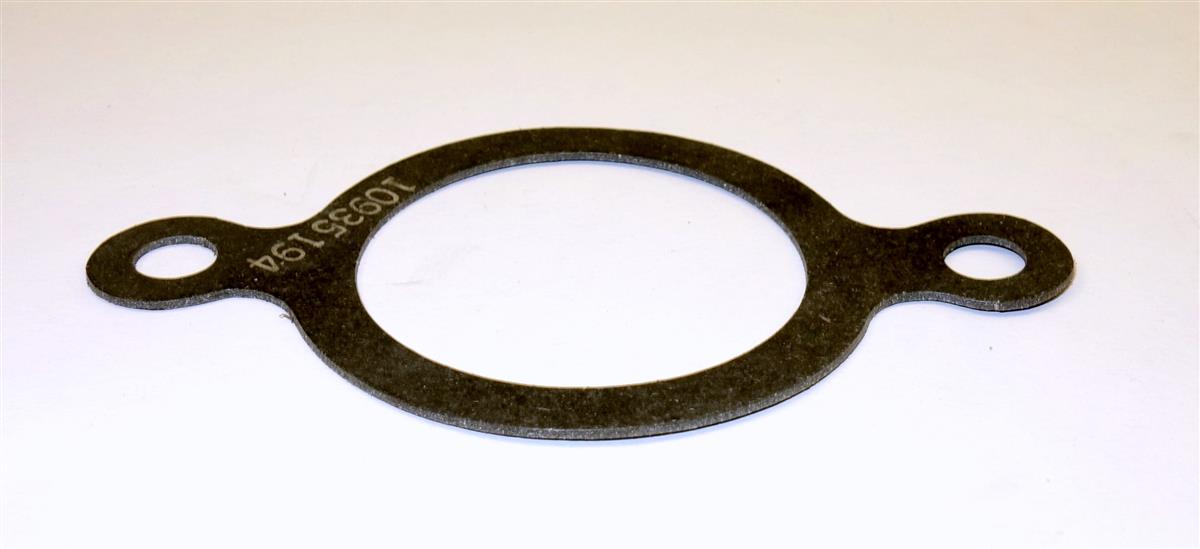

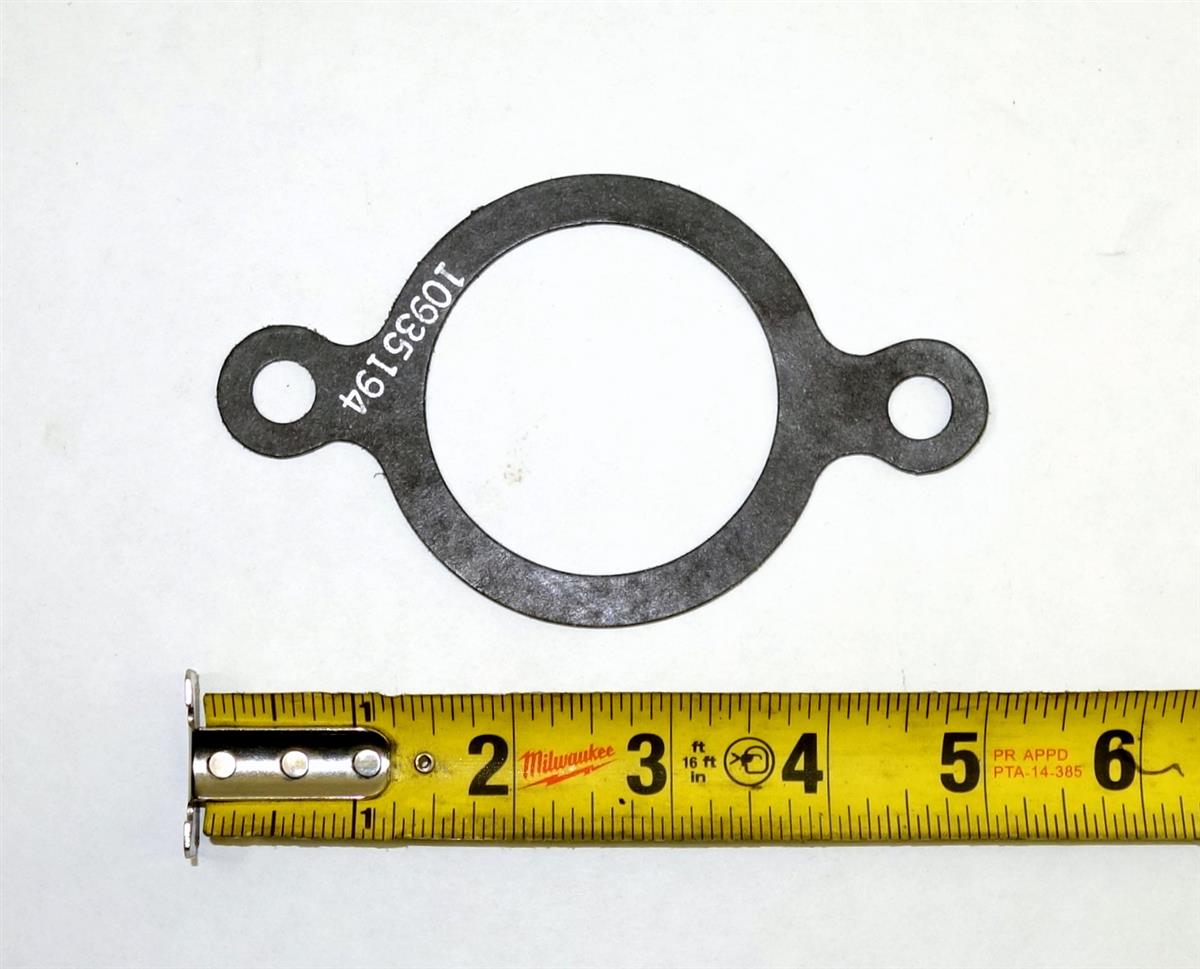

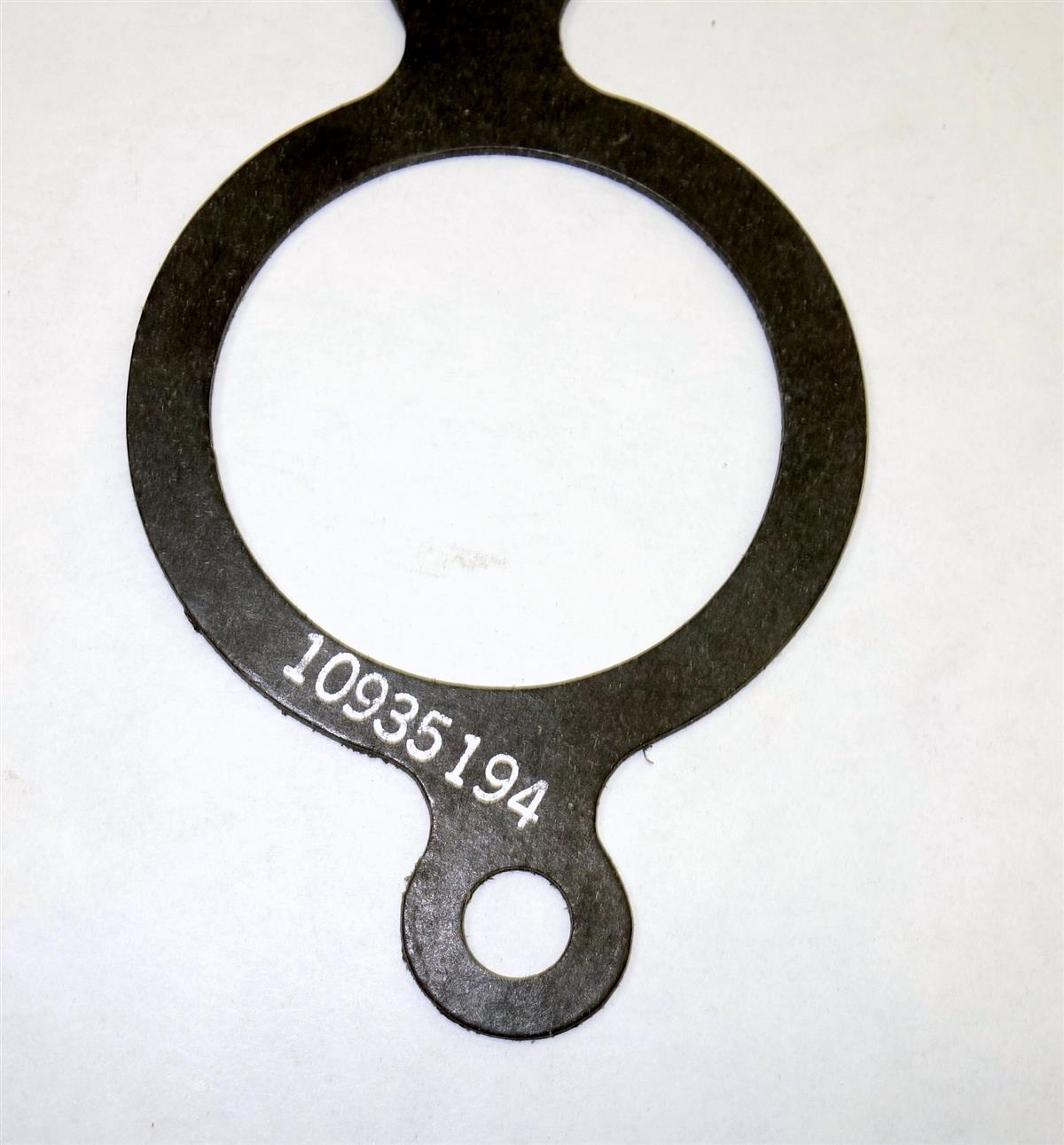

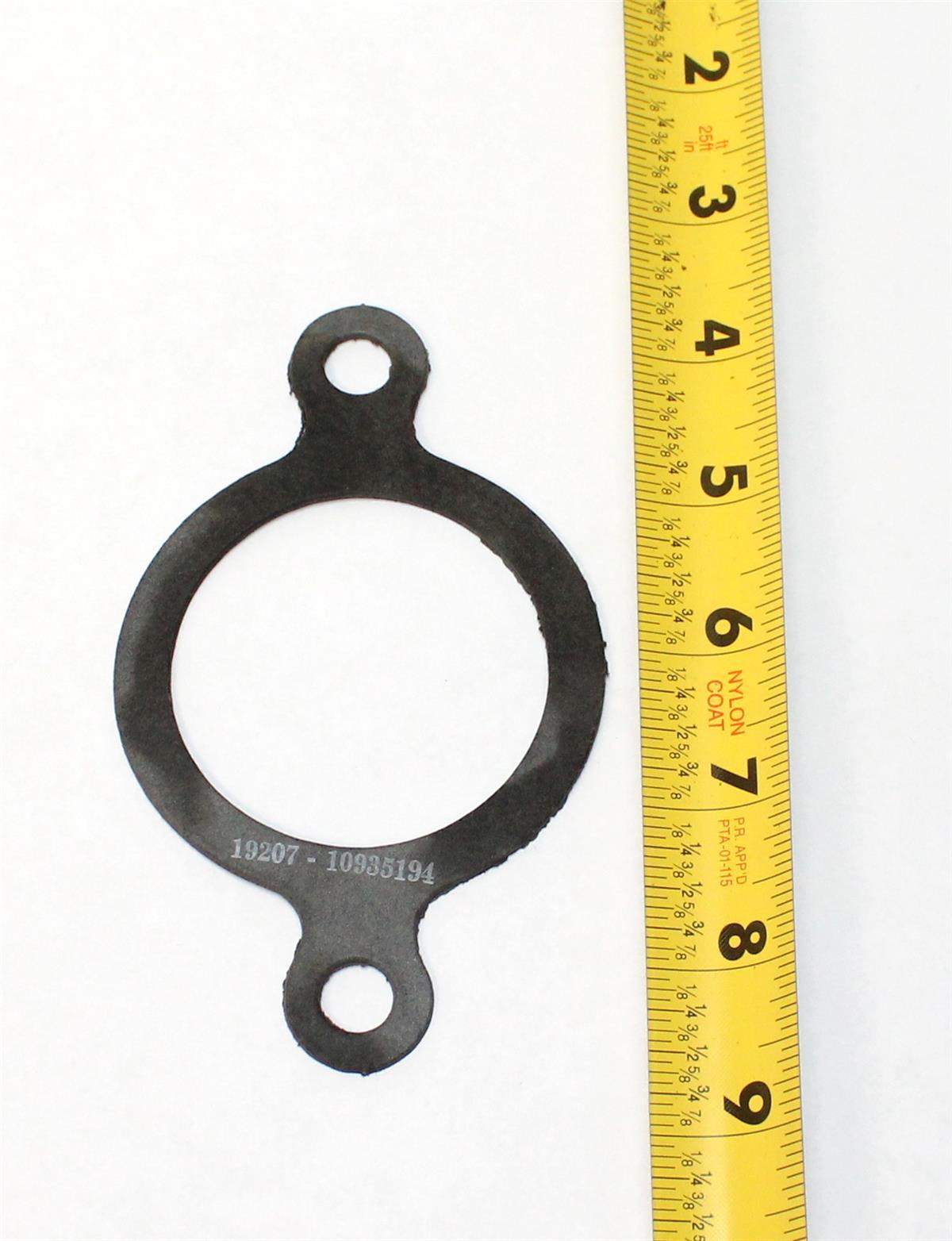

Hydraulic Power Steering Pump Gasket For Multifuel Engines LDT465-1A M54A2

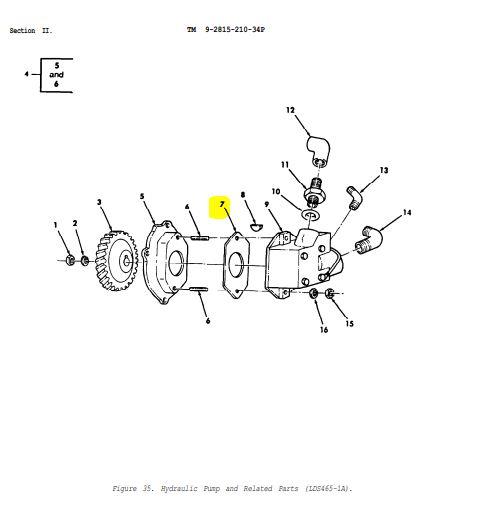

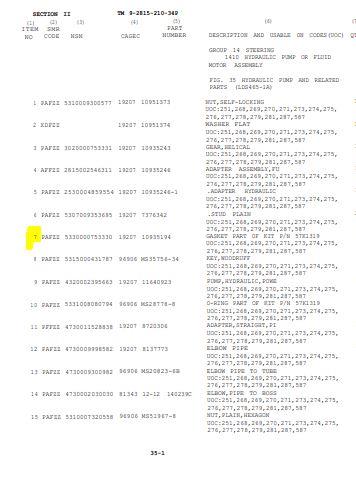

- Item Number 7 In Diagram
- Goes between Hydraulic Pump to Hydraulic Pump Adapter
- Cross Sectional Shape Style - Solid Or Single Composition
- Hole Diameter - 0.420 Inches Nominal
- Bolt Circle Diameter - 4.180 Inches Nominal
- Overall Width - 5.060 Inches Nominal
- Aperture Diameter - 2.310 Inches Nominal
- Outside Corner Radius - 0.440 Inches Nominal
- Side Radius From Gasket Center - 1.500 Inches Nominal
- Cross-Sectional Thickness - 0.047 Inches Nominal
- Bolt Hole Quantity - 2
- Special Features - Release Valve Setting At 1000 PSI
Click Here for Power Steering Hydraulic Pump Multifuel Diesel Engine M35A2 M54A2
Click Here for Hydraulic Power Steering Pump and Reservoir
Click Here for Power Steering Hydraulic Pump Housing Assembly Multifuel Diesel Engine M35A2 M54A2
Click Here for Power Steering Pump Helical Gear Multifuel Diesel Engine M35A2 M54A2
Fits 5 Ton 6x6 Military Truck
M54 and variants 5-Ton Trucks equipped with Multi-Fuel Engine LDS-465-1A
