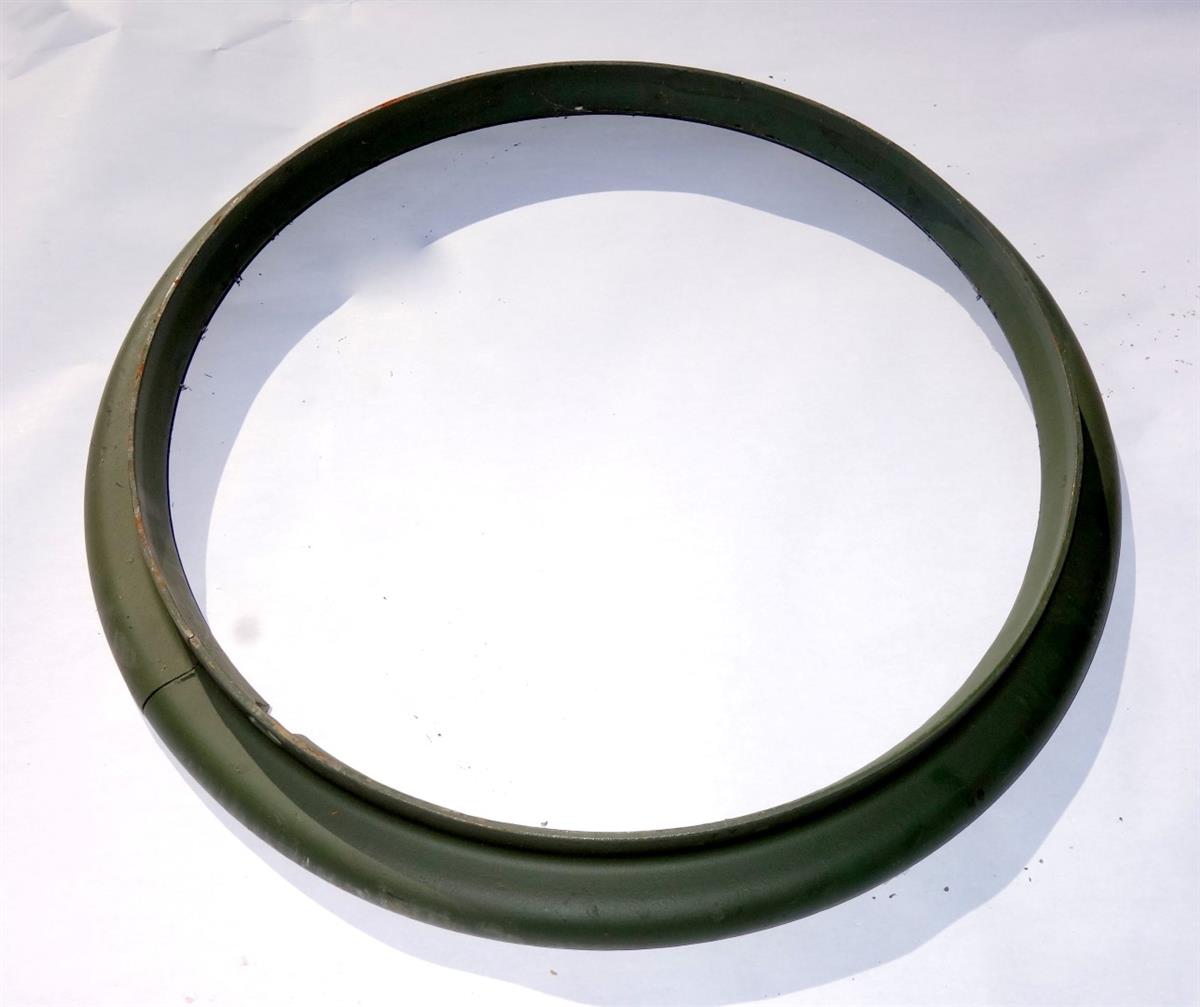

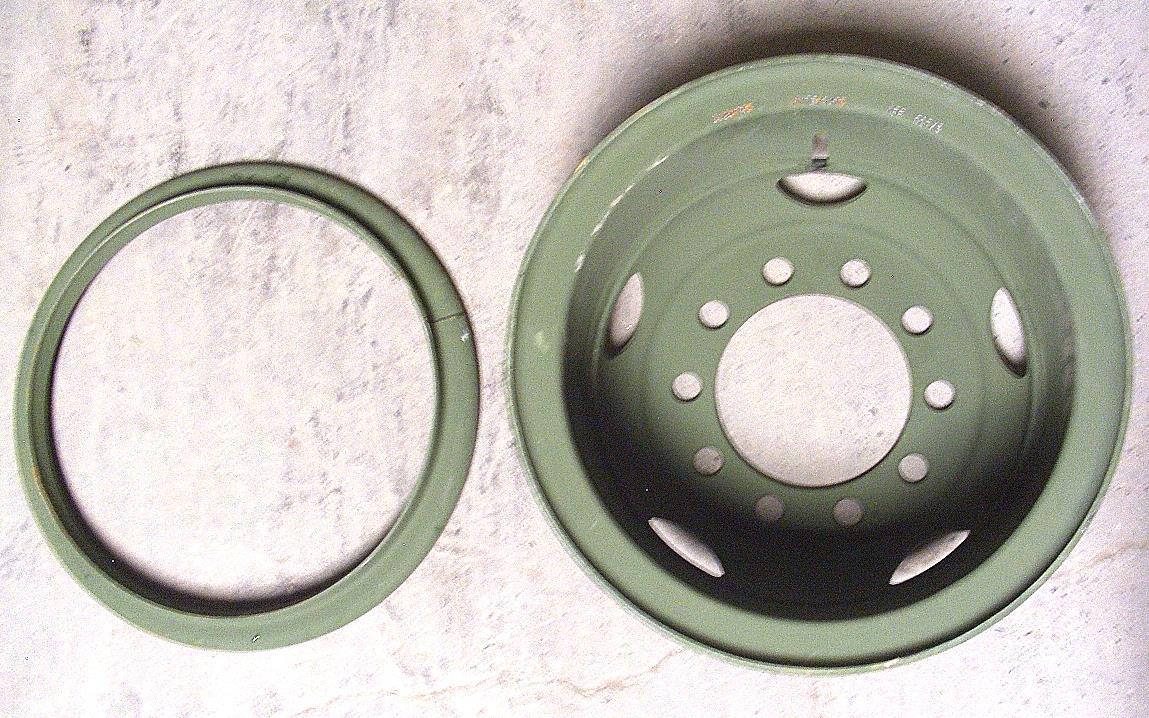

10 Hole Budd Style Wheel / Split Rim with Lock Ring
- Lug Pattern: 10 x 11.25" Inches
- Lug Hole Diameter: 1.21" Inches Minimum and 1.22" Inches Maximum
- Pilot Hole Diameter: 8.725" Inches
- Offset: 6.813" Inches
- Overall Width: 8.926" Inches
- Effective Width: 7.562" Inches
- 5 ton Trucks
- Commercial 10 Hole Budd Wheel application
- Tube Type Tires
- Steel Construction
Click Here For 11.00 x 20 Non Directional Titan T-Hawk 373 43.5" 11.00 x 20 Tire 100% Tread
Click Here For Non Directional Military Tread Tire 43.5" 11.00 x 20 Tire 75%
Click Here For Inner Tube 11.00-20, 11.00 X 20 Heavy Duty Truck Tire Inner Tube
11.00 x 20 Tire Non Directional Bias Mounted on 10 Hole Budd Style Rim 100% Tread
Click Here For Goodyear G177 11 x 20 Radial Tire on 10 Hole Rim 95% Tread
Fits:
M54 Multifuel Powered 5 ton trucks
M809, M813, M814, M816, M817, M818, M820 5-Ton Trucks
M939, M923, M924, M925, M926, M927, M928, M929, M930, M931, M932, M934, M935, M936 5-Ton Trucks
Commercial
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
