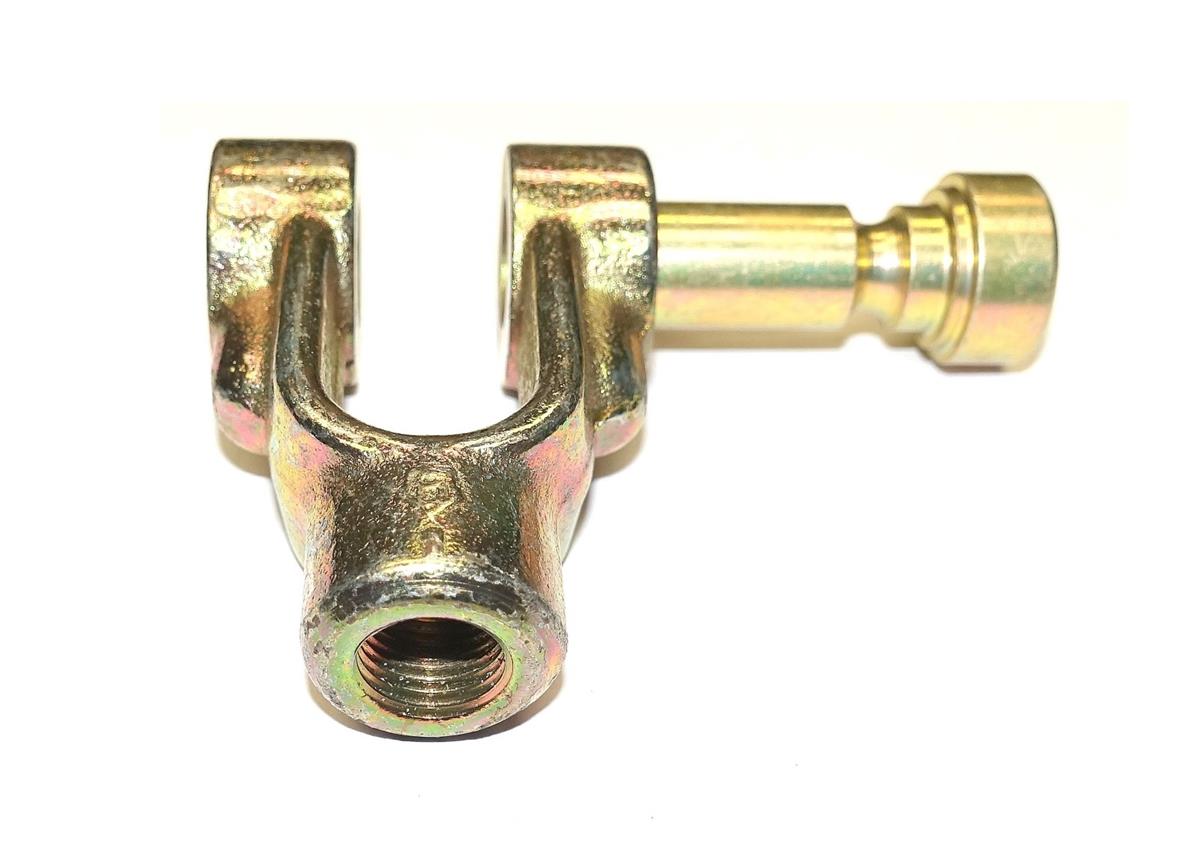

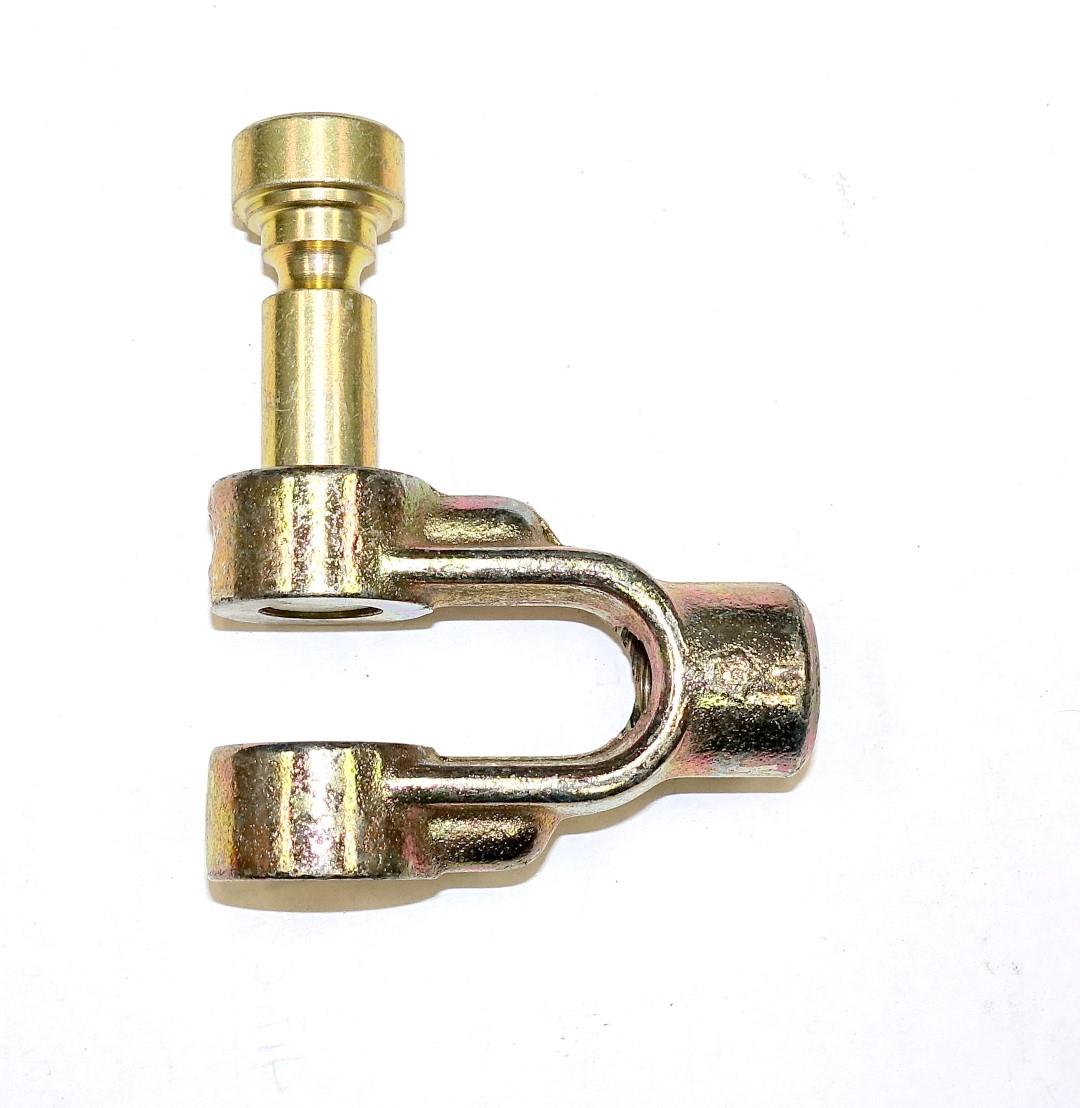

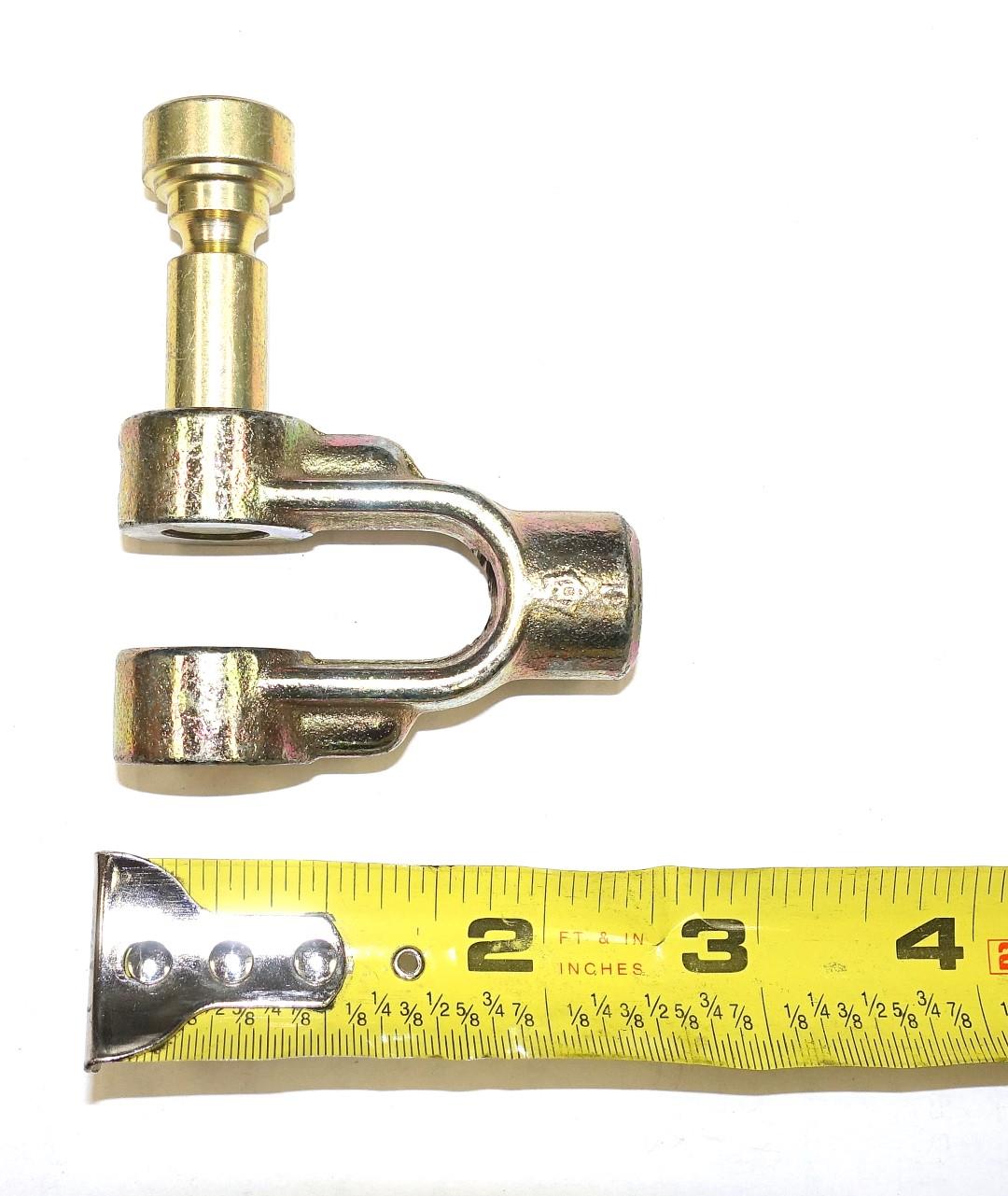

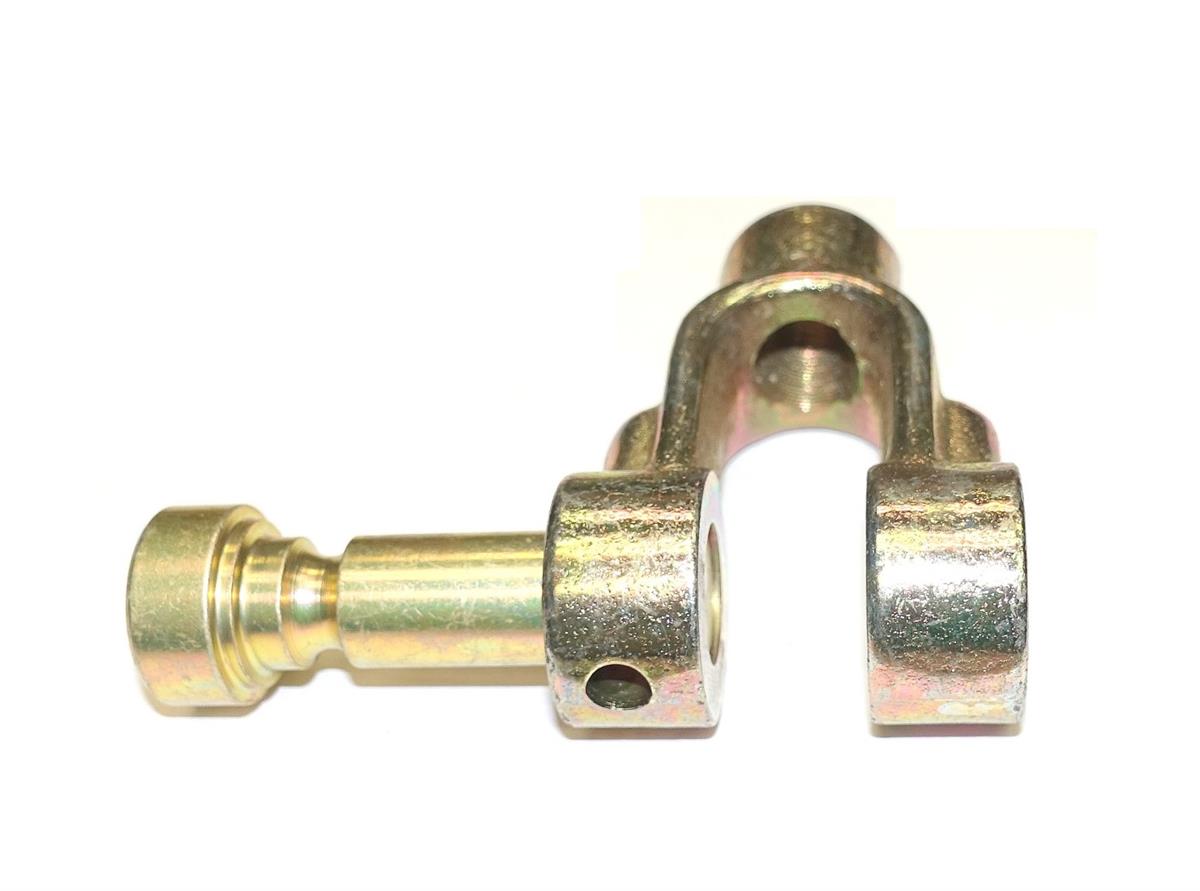

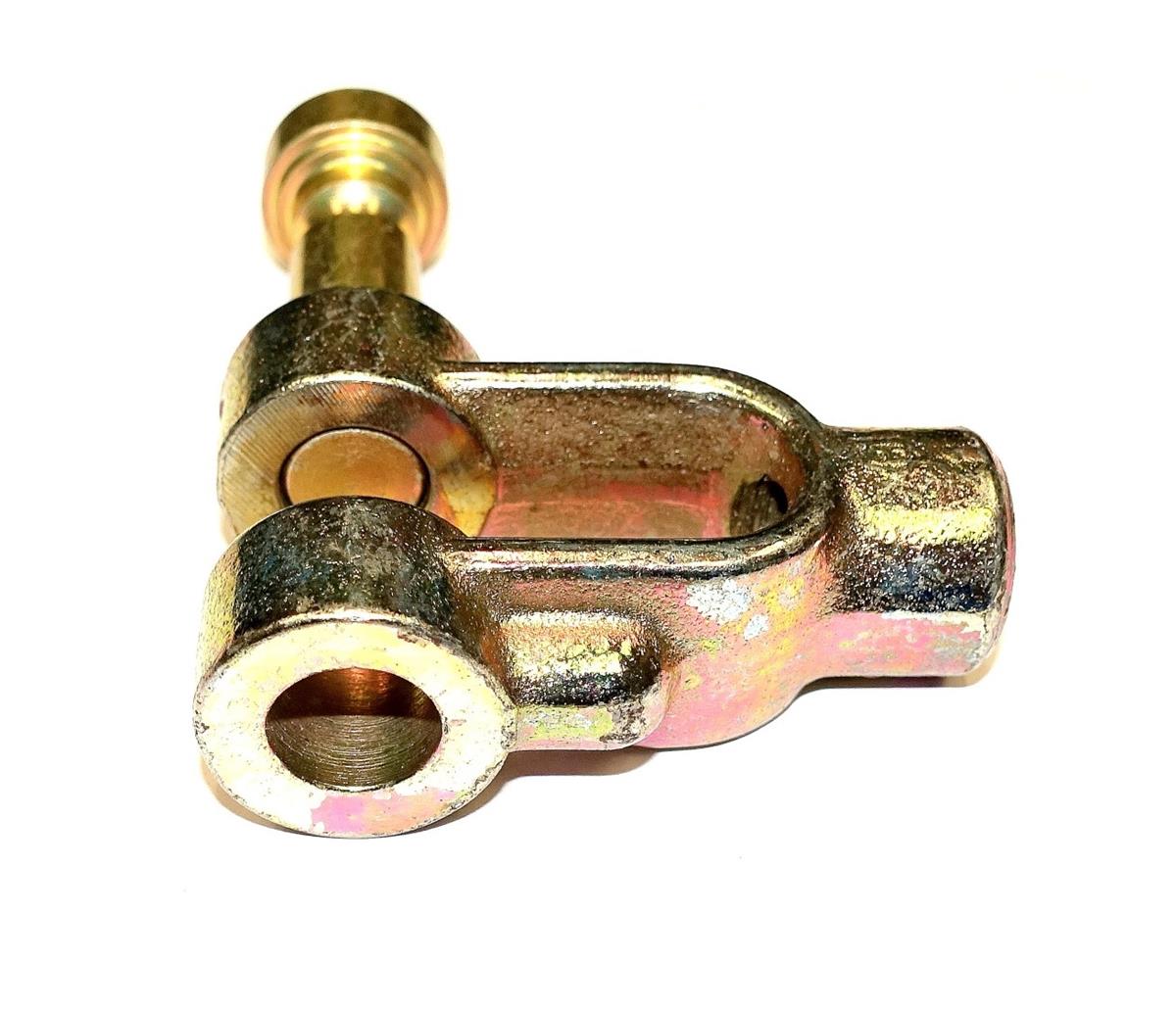

Transfer Case Linkage Clevis End / Yoke
- Thread Class: 2B Rod Connection
- Thread Direction: Right-Hand Rod Connection
- Thread Length: 1.125” Inches
- Hole Diameter: 0.498” Inches minimum and 0.2500” Inches maximum
- Shank Diameter: 0.812” Inches
- Overall Width: 1.625” Inches
- End Radius: 0.496” Inches
- Fork Span Width: 0.5525” Inches minimum and 0.575” Inches maximum
- Distance from Pivot Pinhole Center to ROD Connection End: 2.438” Inches
- Fork Arm Thickness: 0.562” Inches
- Fork Depth: 1.312” Inches
- Nominal Thread Size: 0.500” Inches Rod Connection
Fits:
M35 M35A1 M35A2 M35A3 M36 M36A1 M36A2 M36A3 M275 M109 M109A1 M109A3 M109A4 2 ½ Ton Trucks
Can also be used for other applications
Item 4 on parts diagram
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
