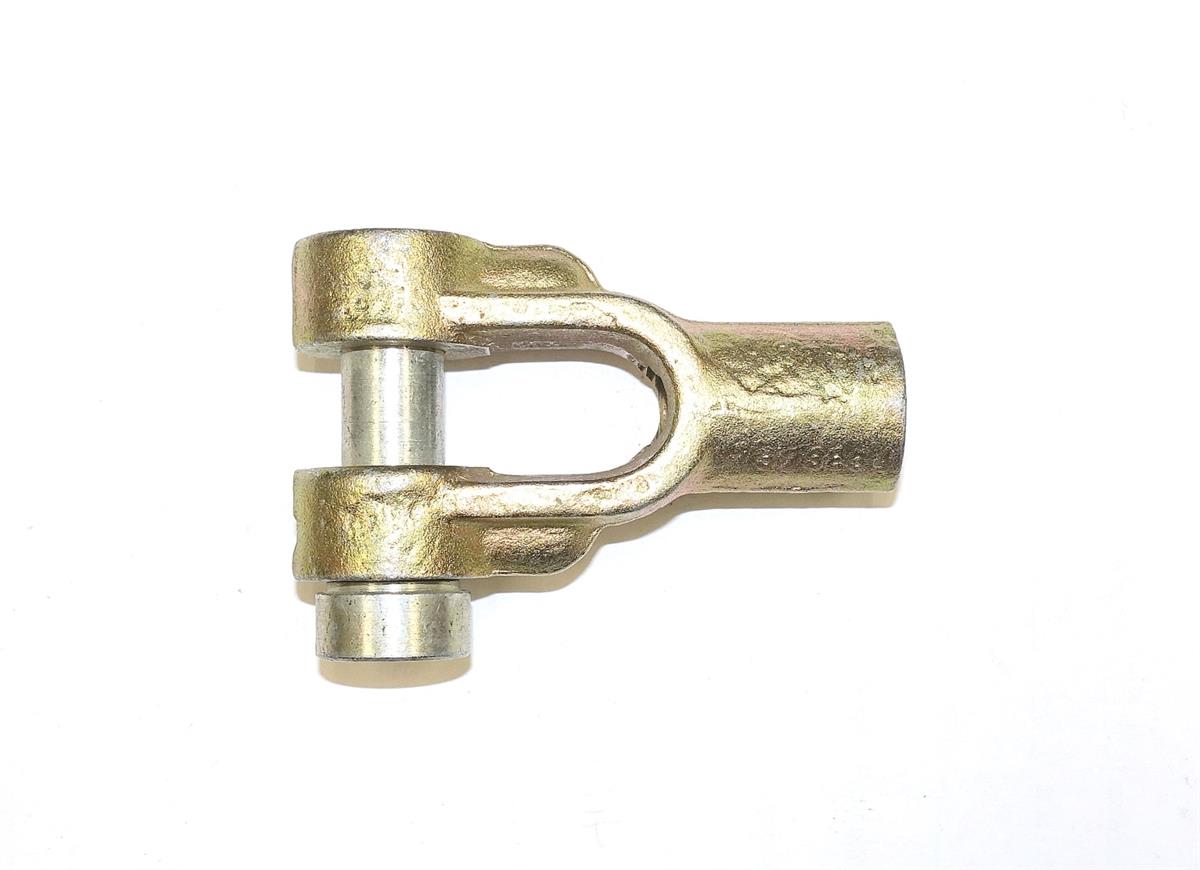

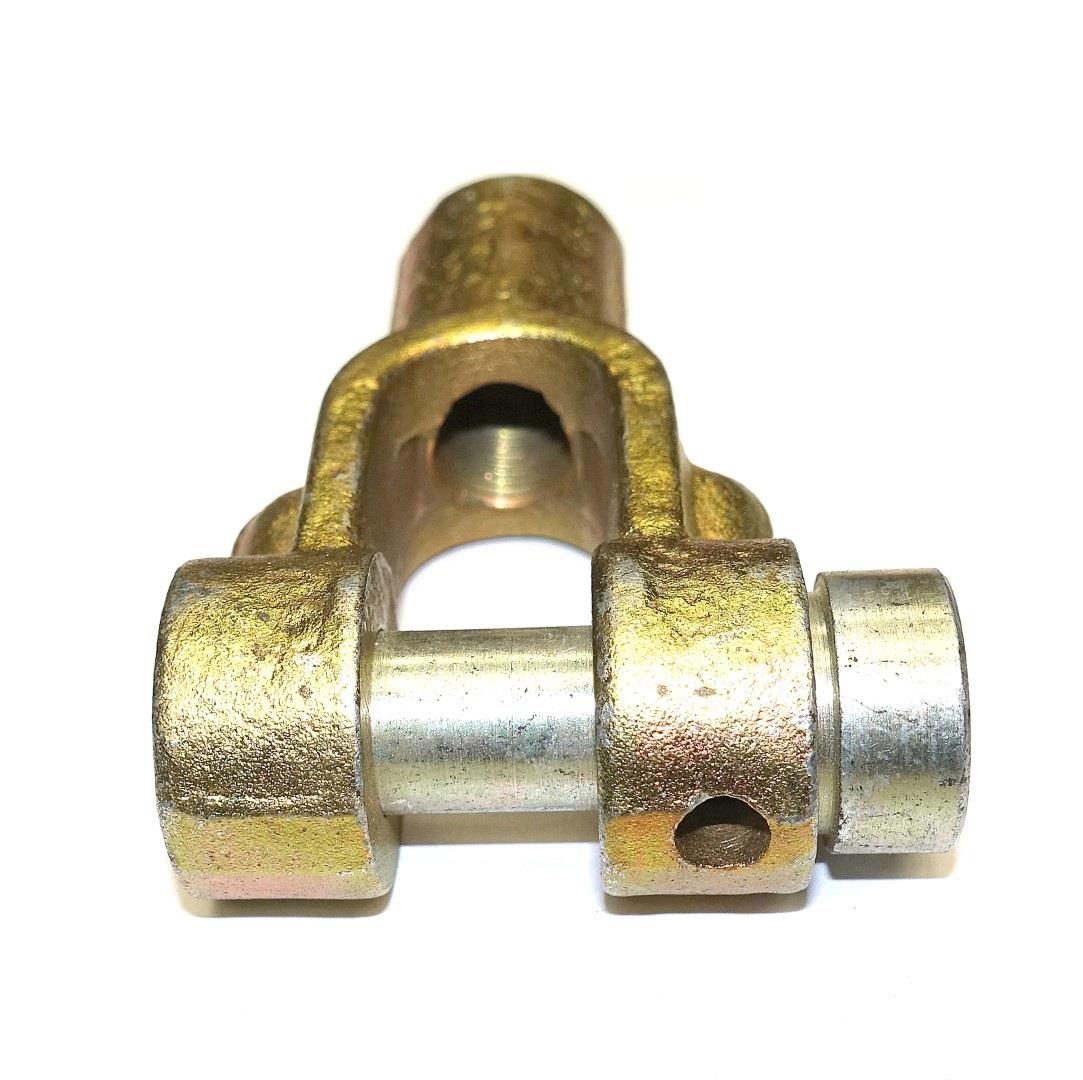

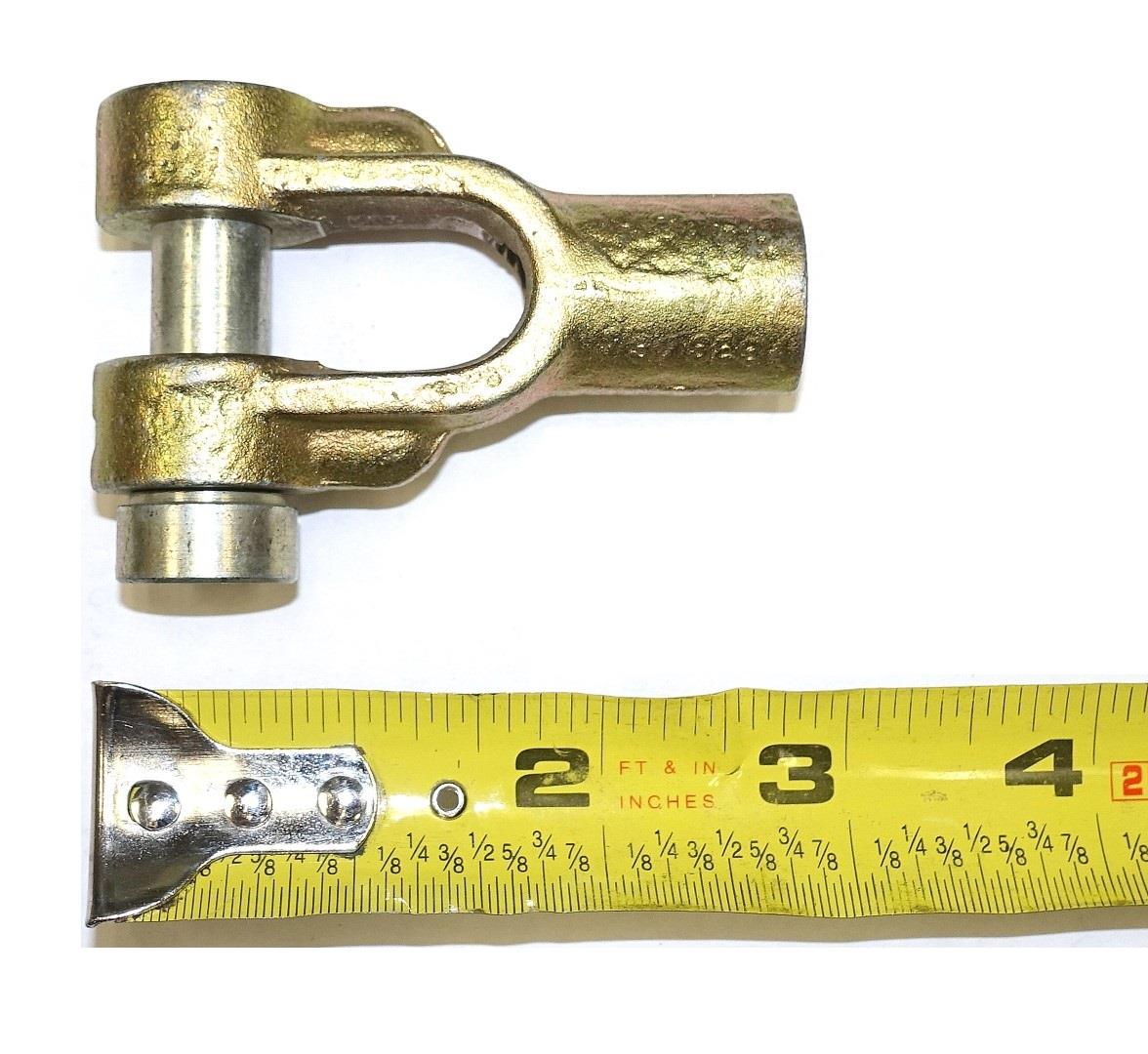

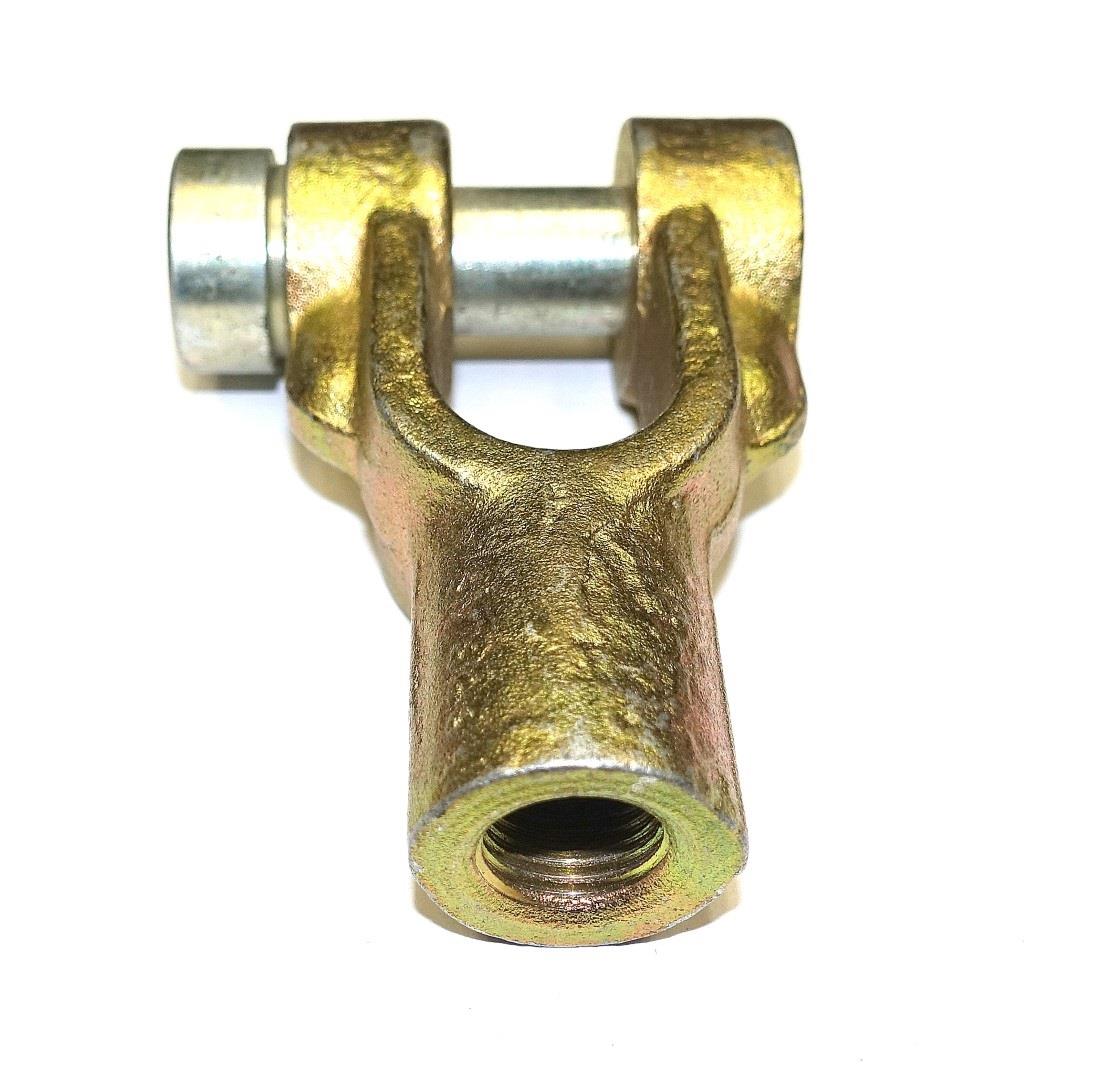

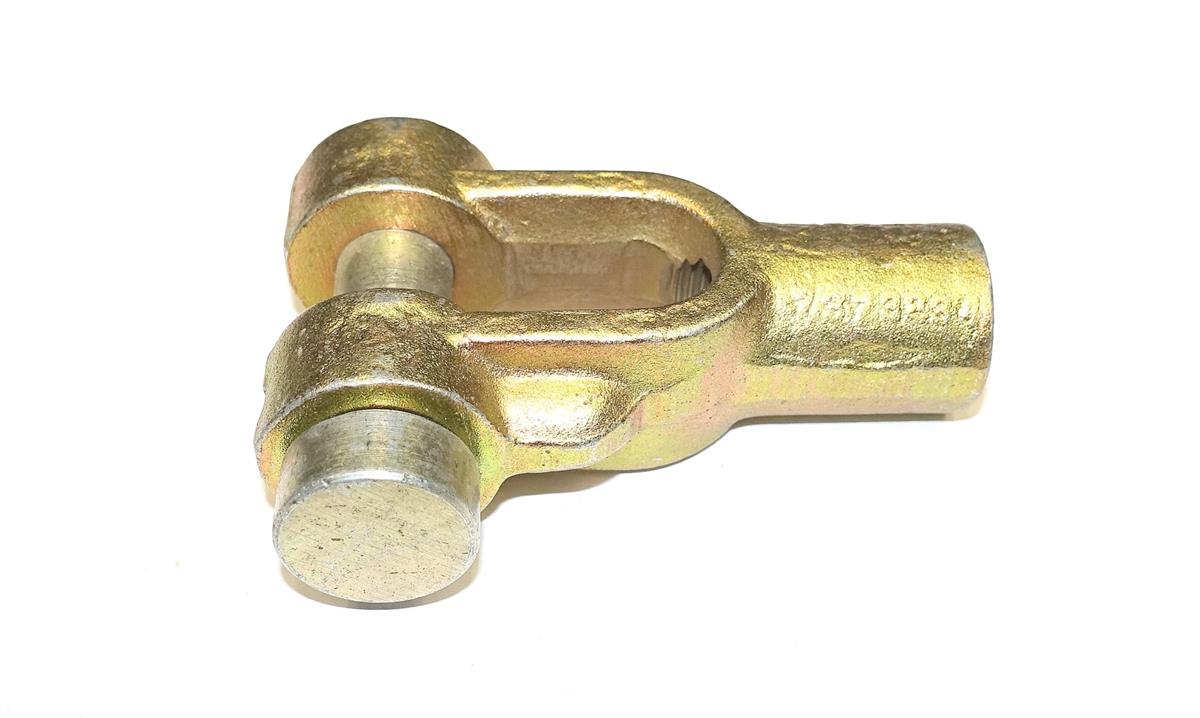

Clutch Linkage Clevis End / Yoke
- Thread Length: 1 1/8" Inches
- Hole Diameter: .498" Inches minimum and .5" Inches maximum
- Shank Diameter: .812" Inches
- Overall width: 1 5/8" Inches
- Fork Spa Width: .552" Inches minimum and .0572" Inches maximum
- Distance from pivot pinhole center to rod connection end: 2.438" Inches
- Fork arm thickness: .562" Inches
- Fork depth: 1.312" Inches
Fits
M35 M35A1 M35A2 M36 M36A1 M36A2 M275 M109 M109A1 M109A3 2 ½ Ton Trucks
Can also be used for other applications

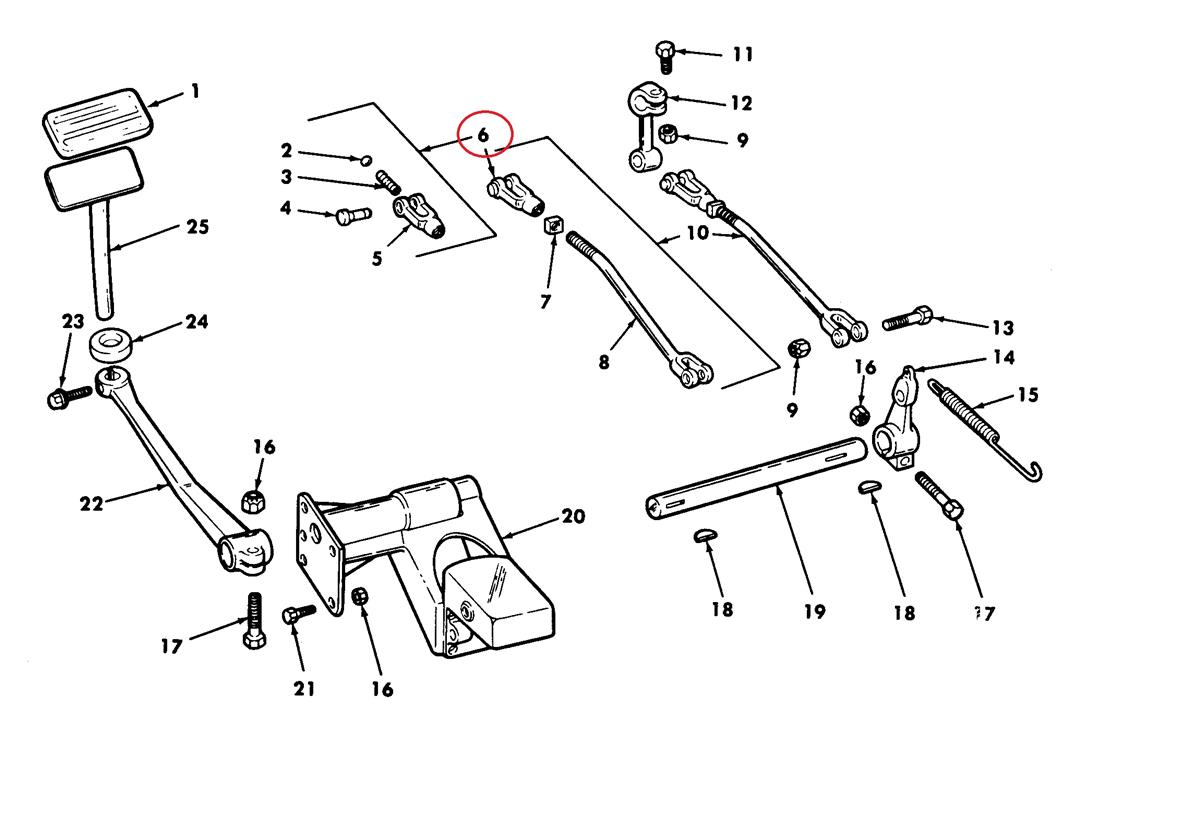

Item#6 on parts diagram
