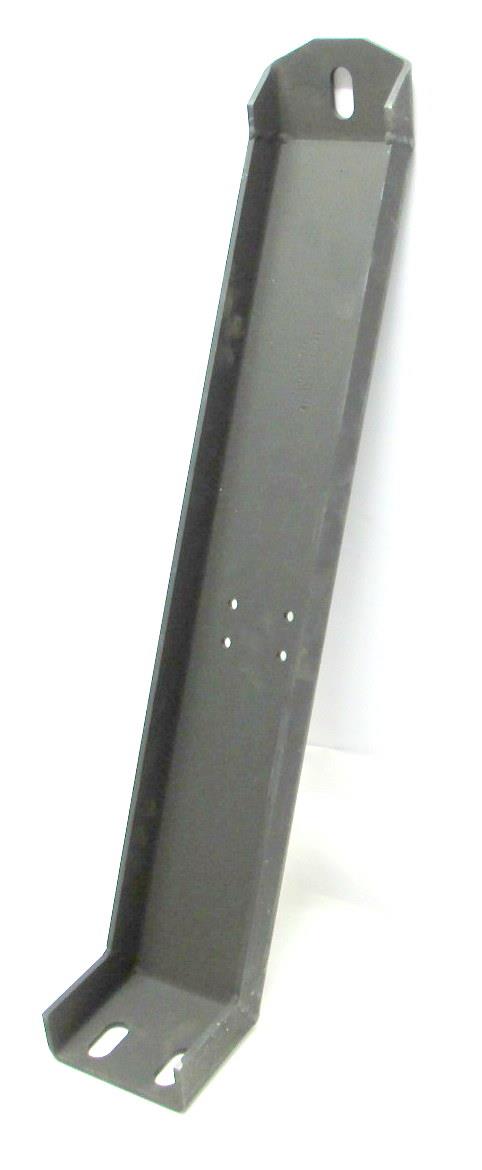

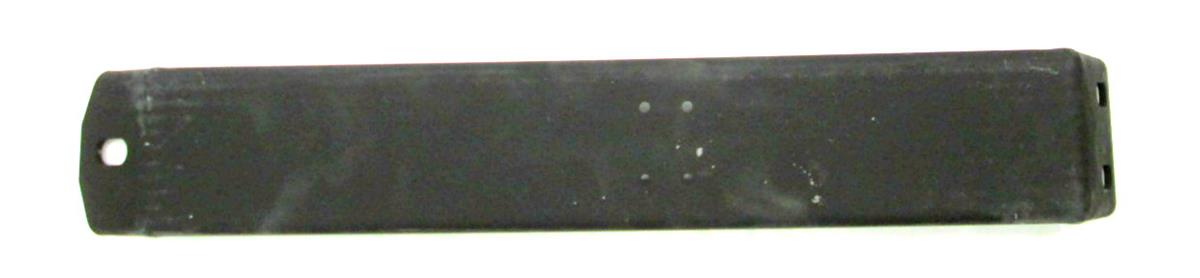

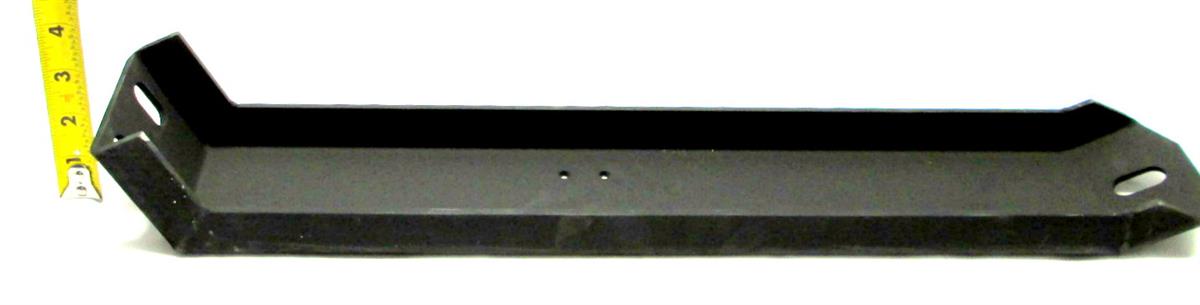

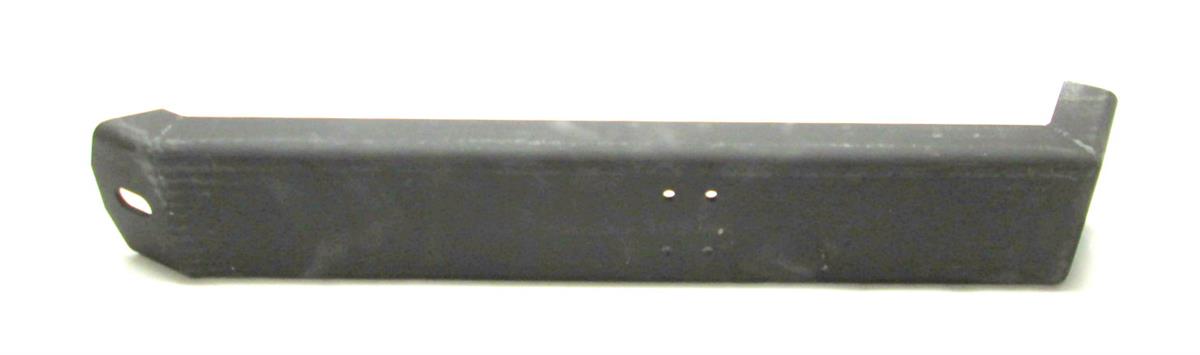

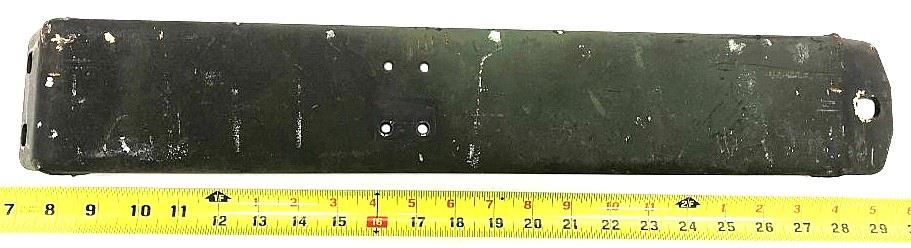

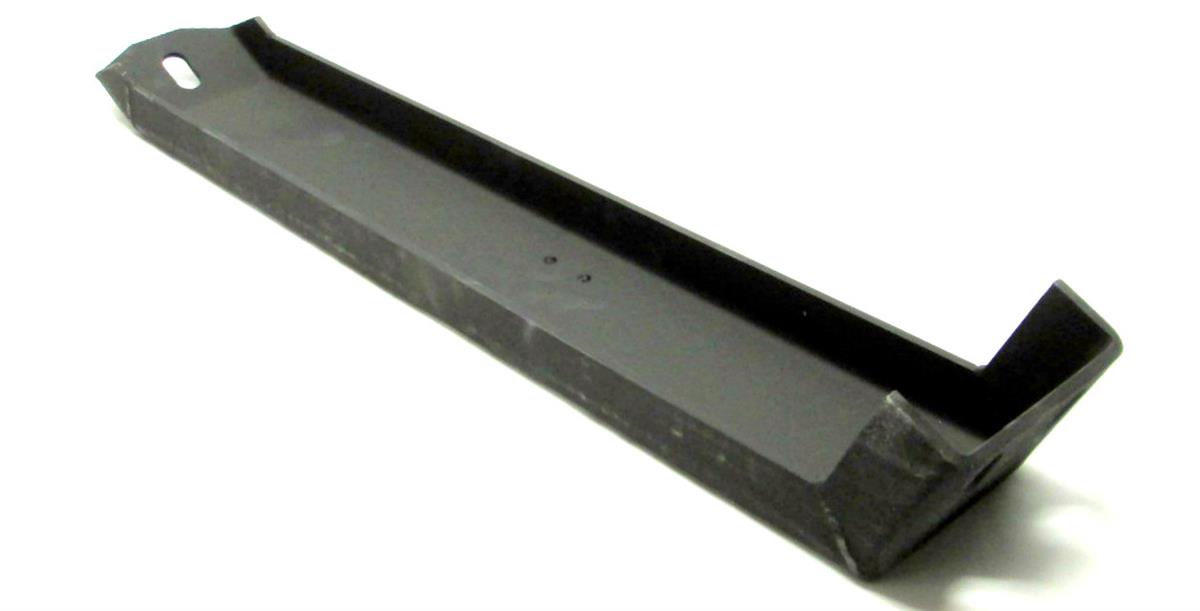

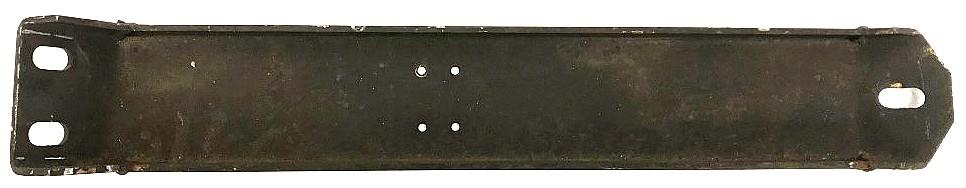

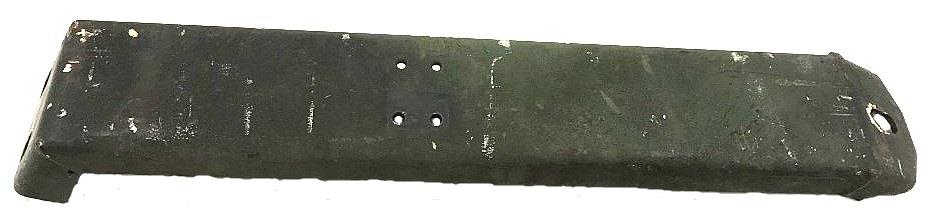

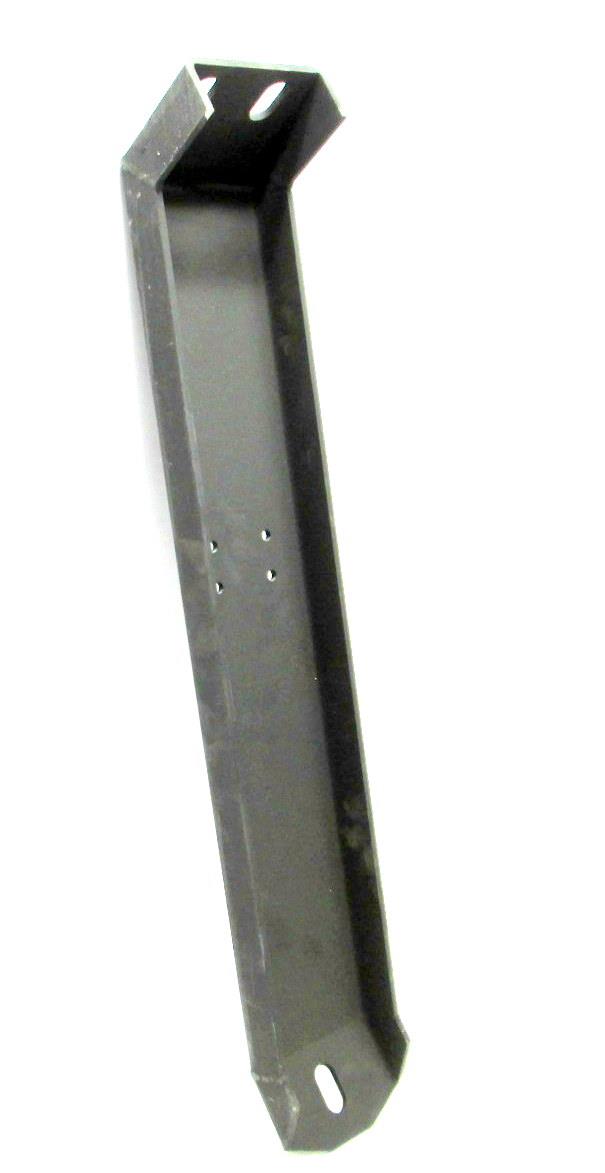

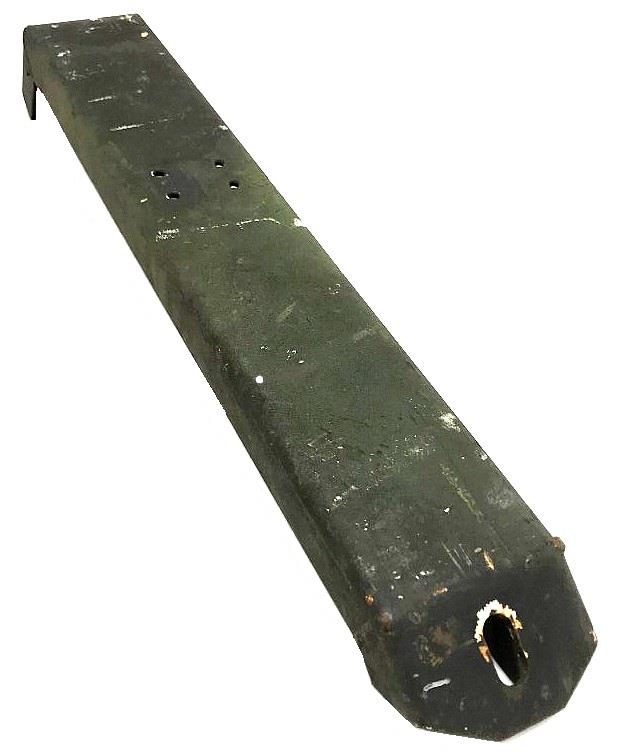

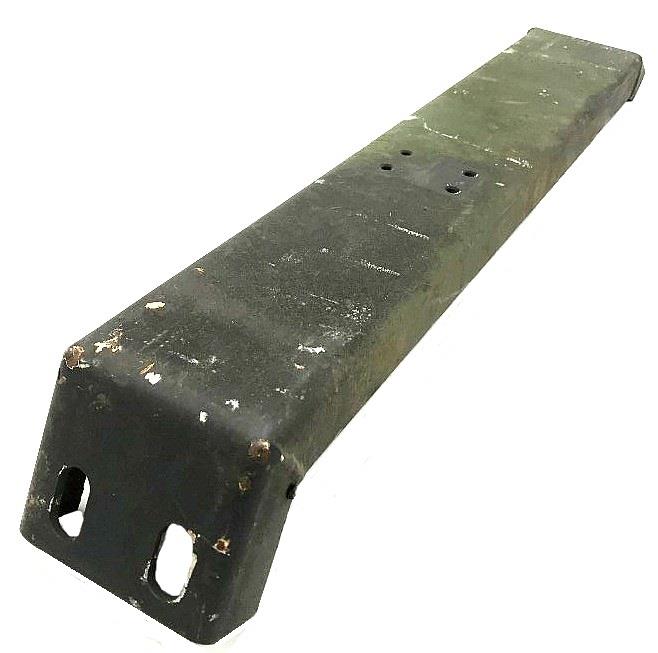

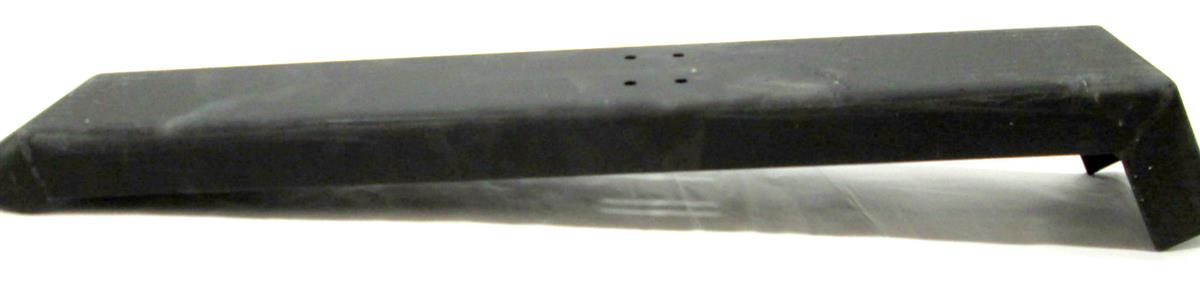

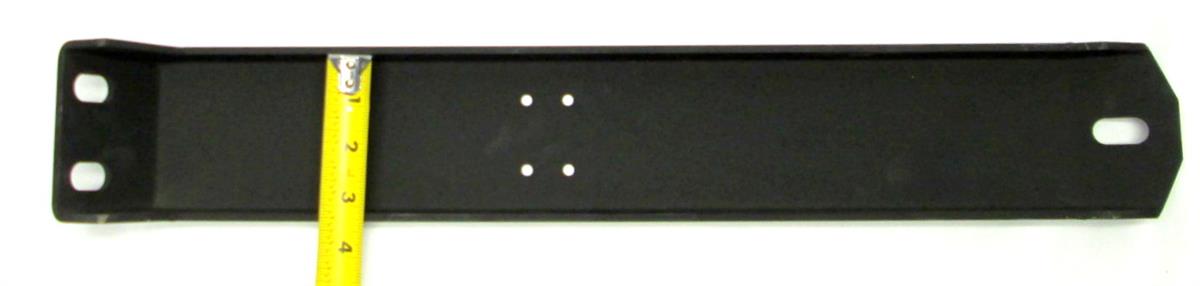

Left Rear Bumper Inner Mounting Bracket HMMWV
Steel High Strength Low Alloy
Four Bolt Holes Centrally Located along LENGTH 0.218 INS DIA

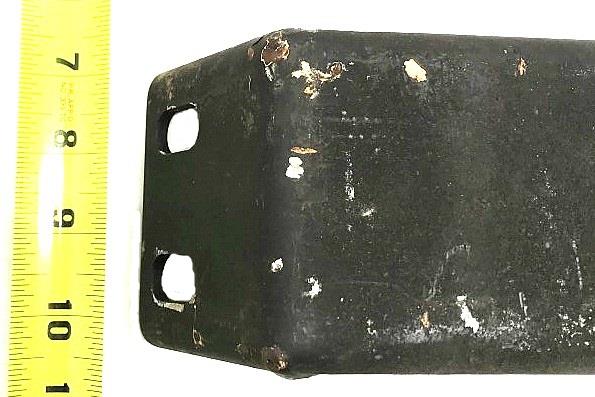

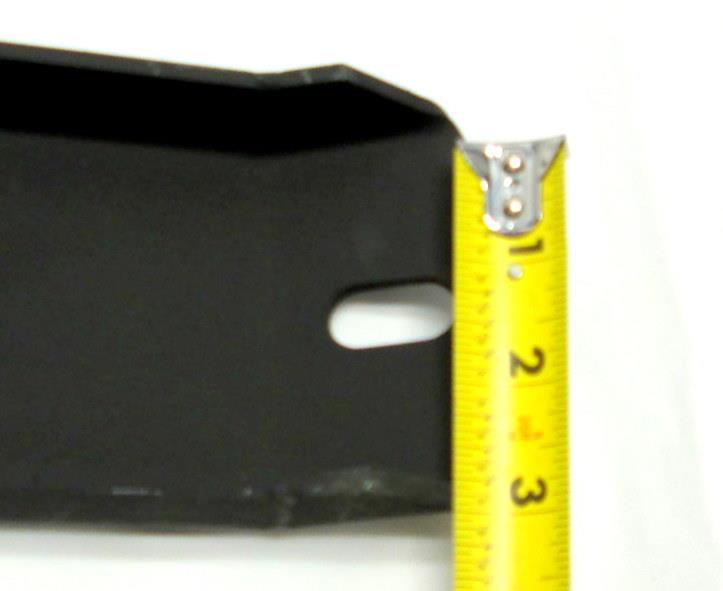

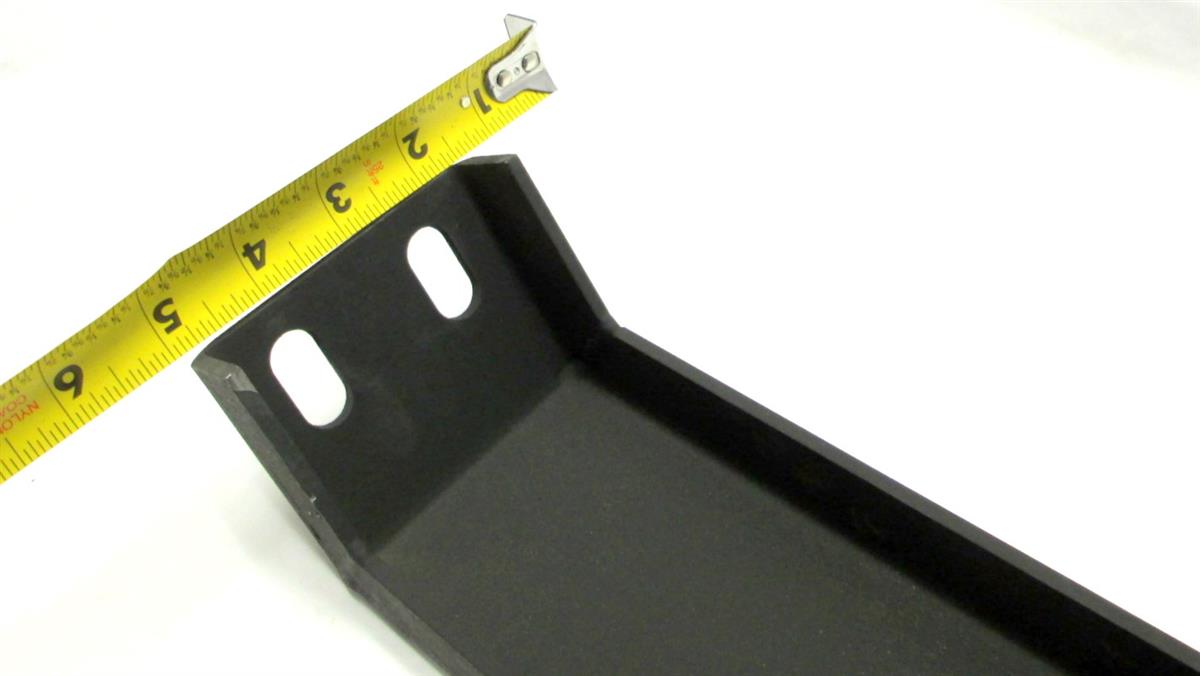

Three Slots One Located On Long Leg and Two located on Short Leg, 0.531 INS WIDE, 1.060 INS LG

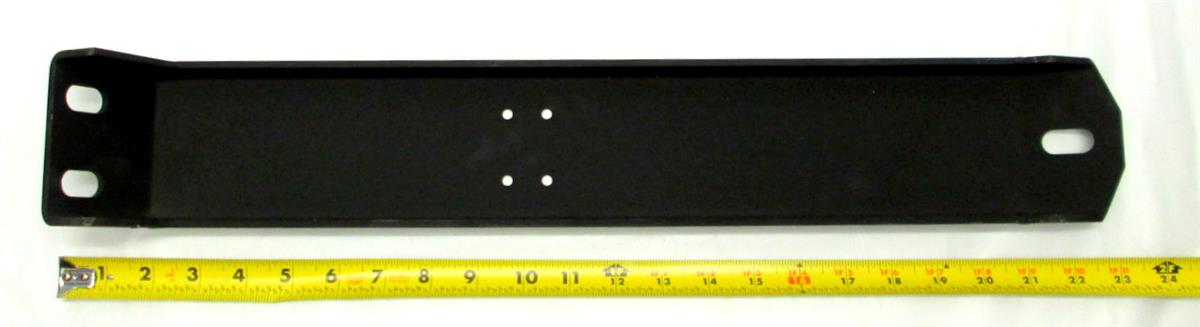

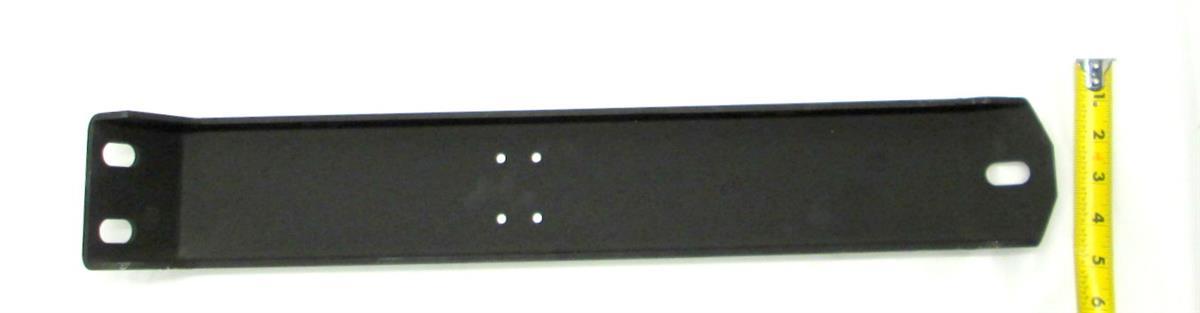

O/A LG 22.300 INS
3.500 INS Wide
Depth Inside Channel 1.100 INS
O/A 1.250 INS
Steel is 0.150 IN THICK

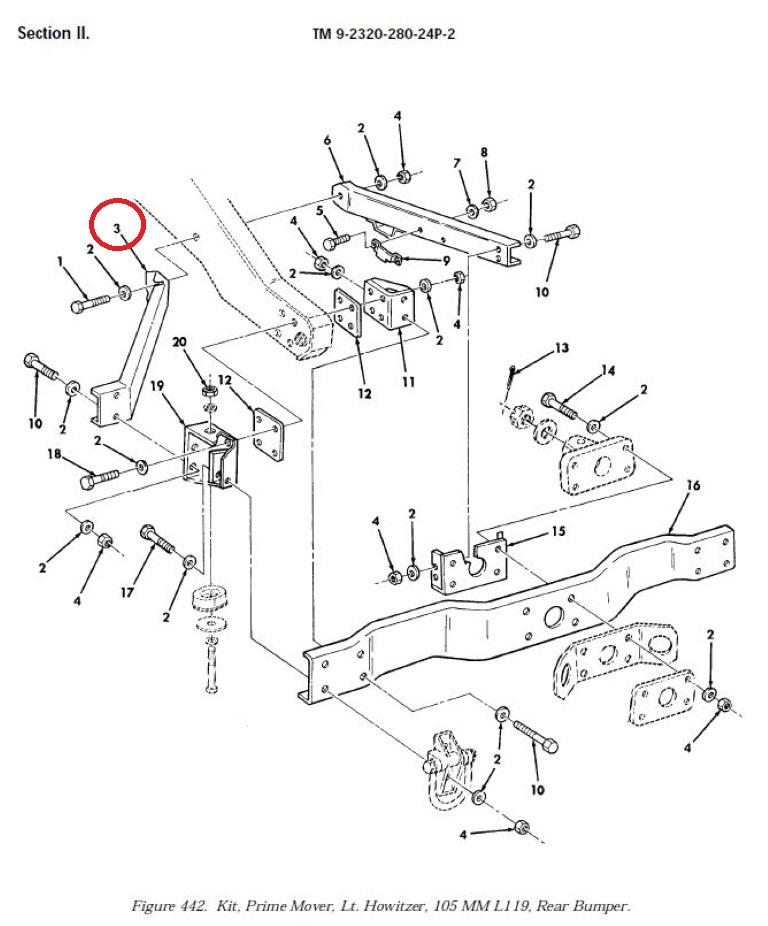

Item NO 3 in Diagram
Fits:
M1025 M1025A1 M1025A2 M1026 M1026A1 M1035 M1035A1 M1035A2 M1037 M1038 M1038A1 M1042 M1043 M1043A1 M1043A2 M1044 M1044A1 M1045 M1045A1 M1045A2 M1046 M1046A1 M1097 M1097A1 M1097A2 M1121 M1123 M966 M966A1 M996 M996A1 M997 M997A1 M997A2 M998 M998A1 M1151 M1151A1 M1167
Item 3 In Diagram
Hummer, Humvee hmmwv, hummer, hummvee, H1, AM General
