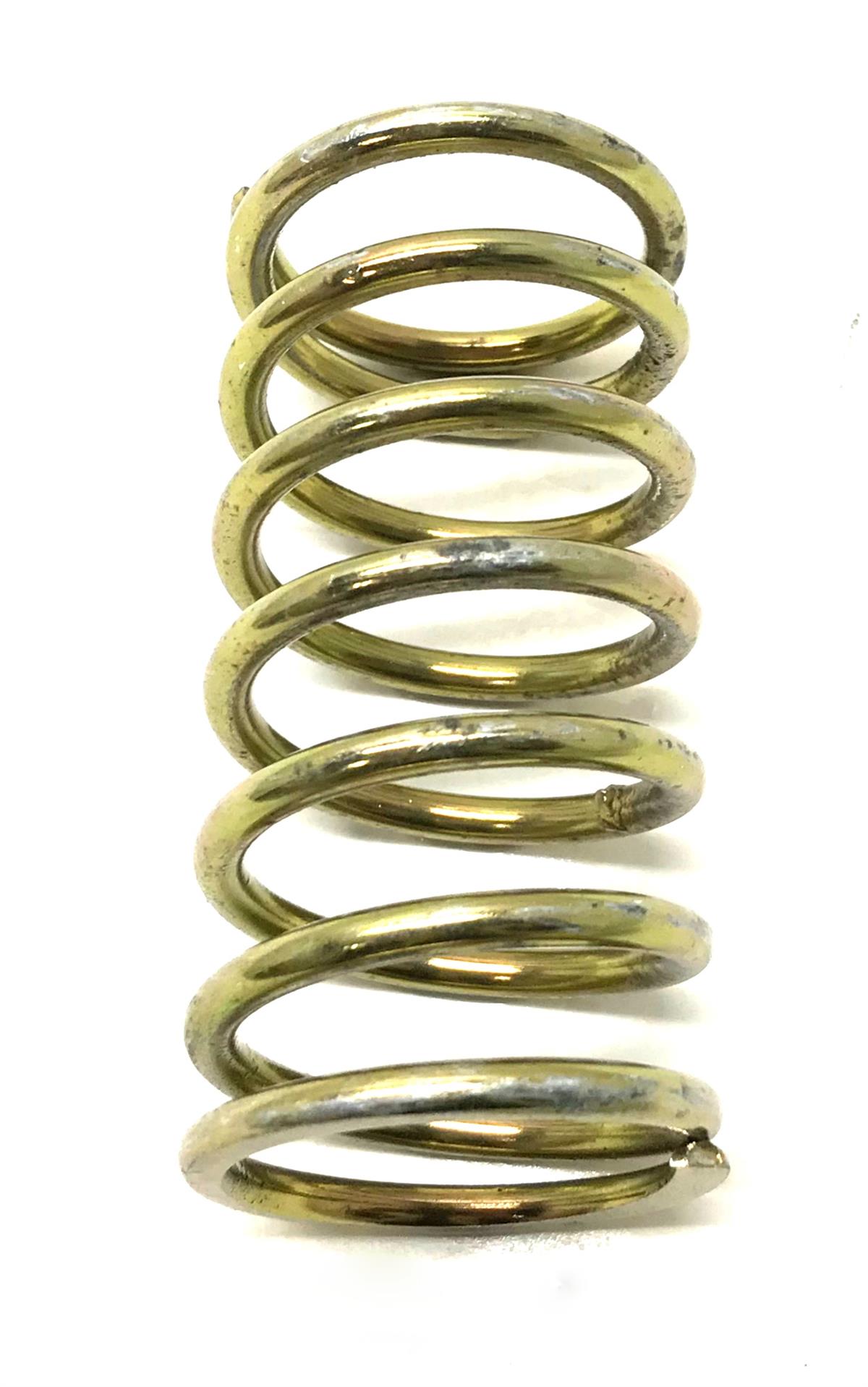

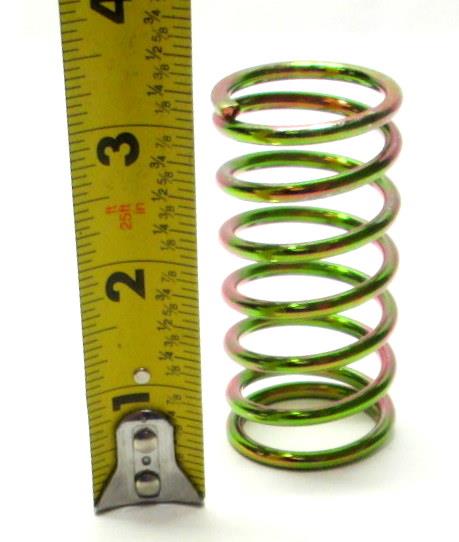

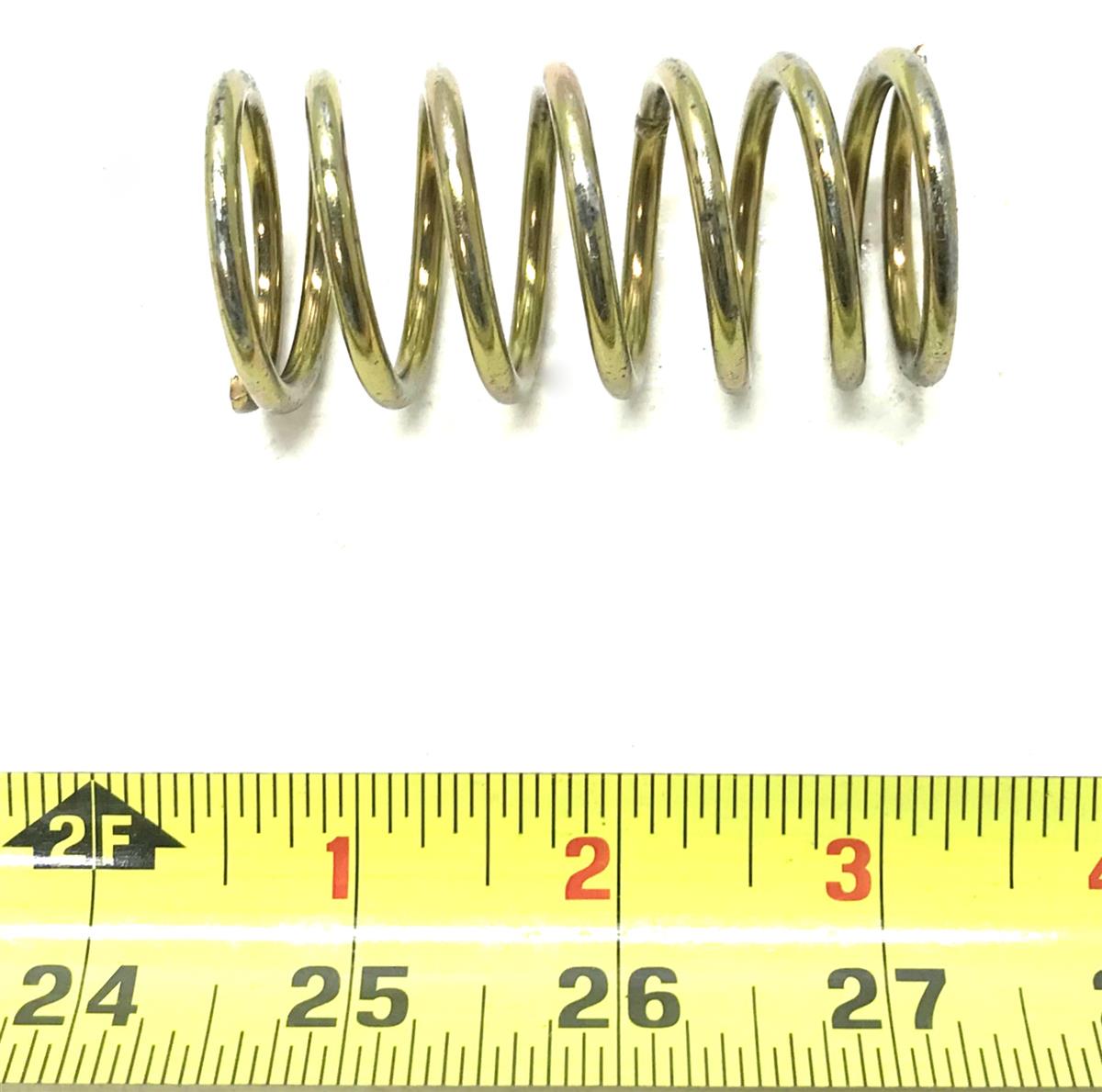

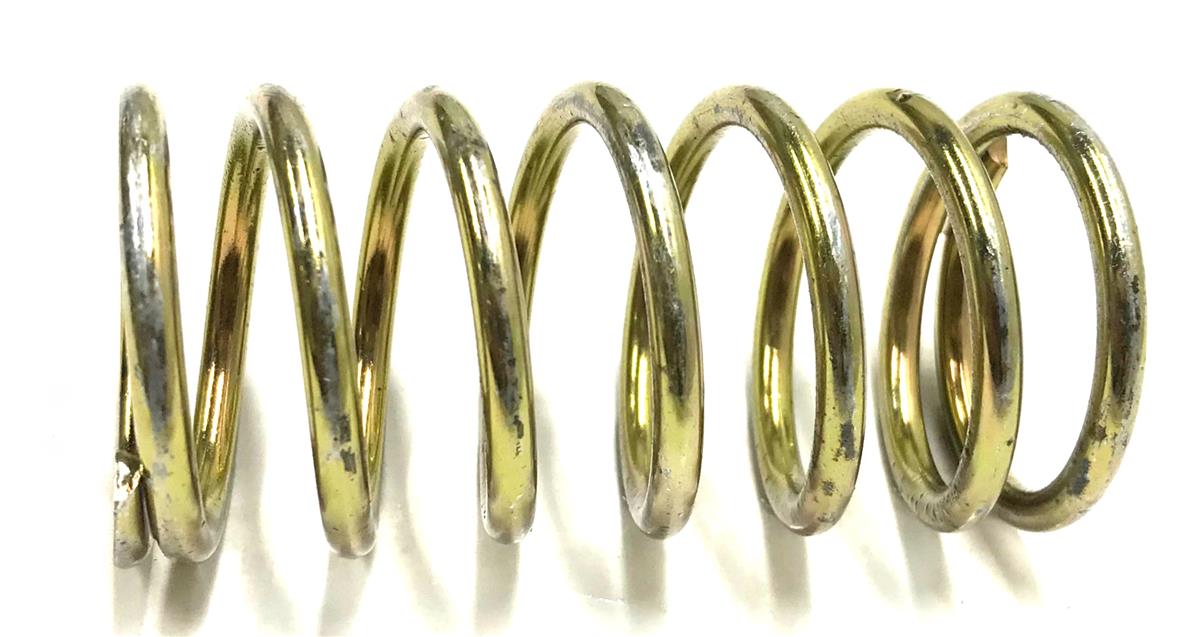

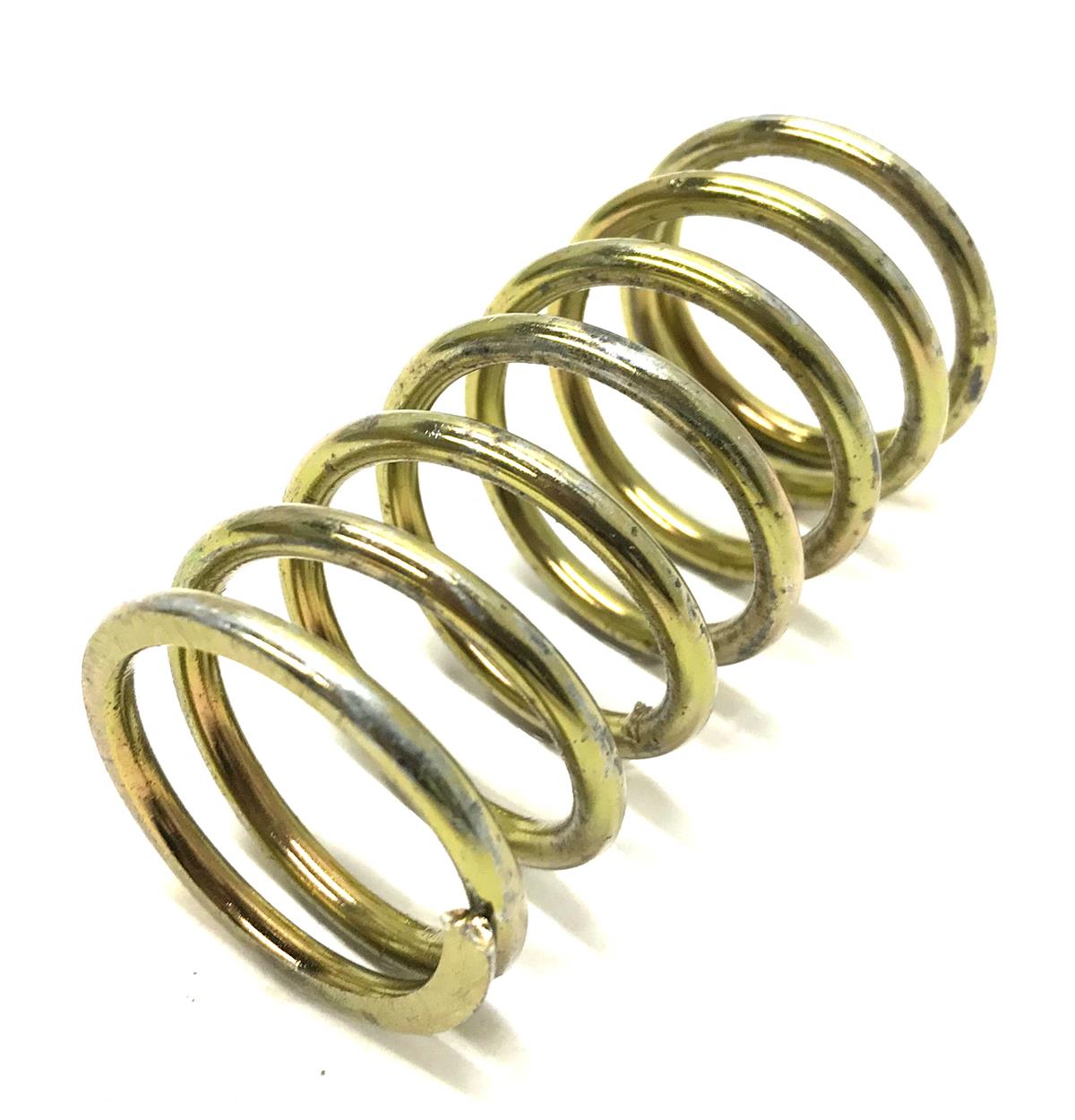

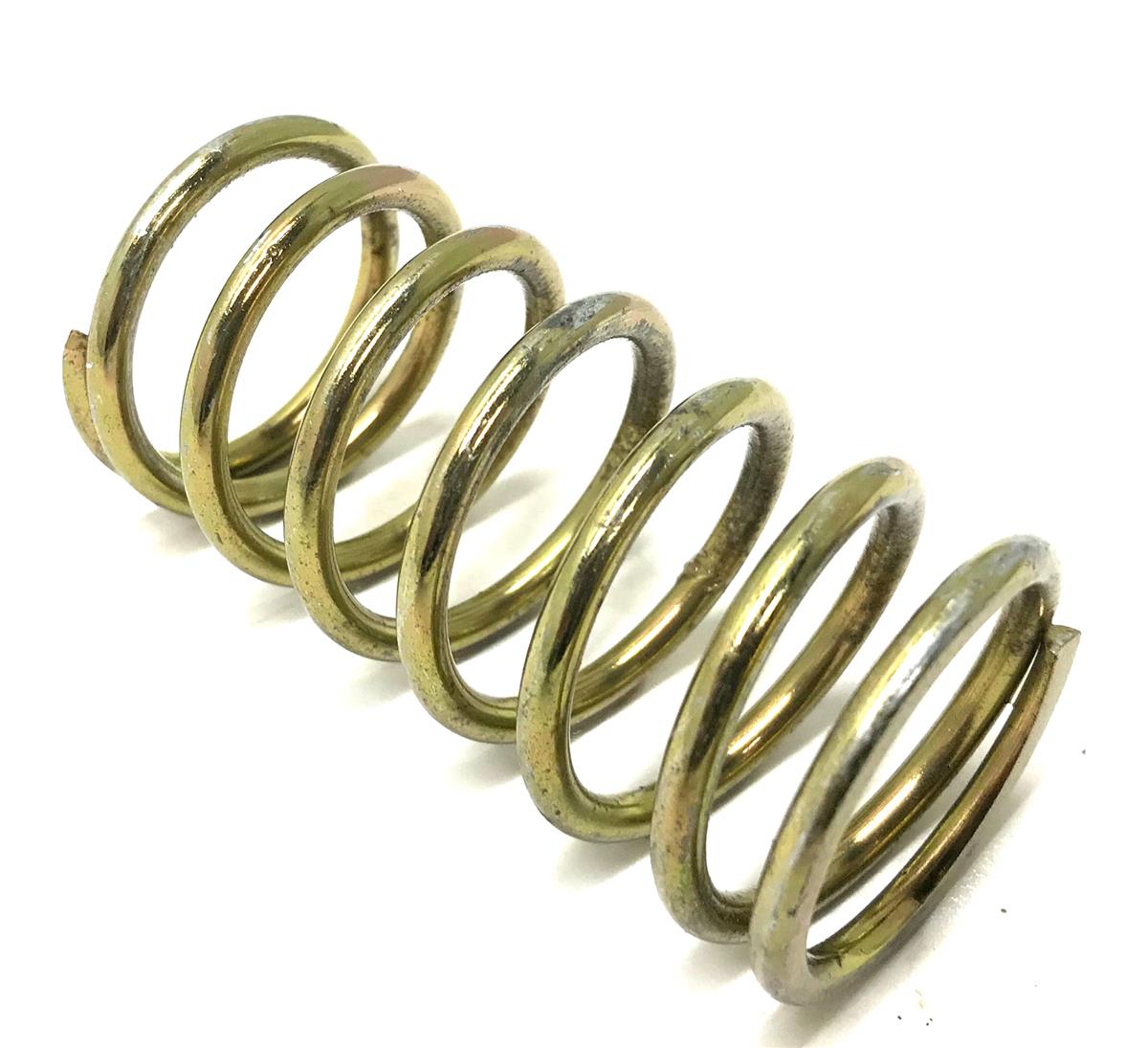

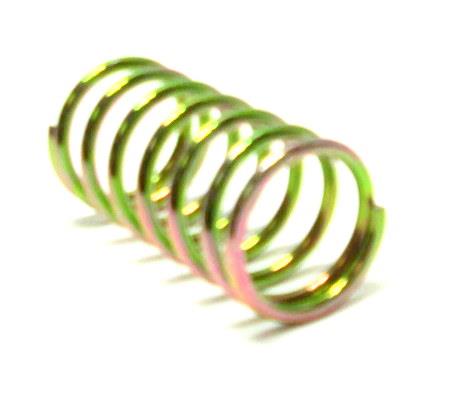

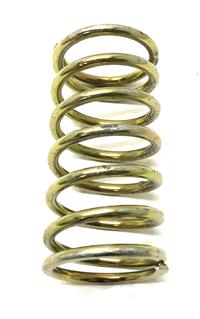

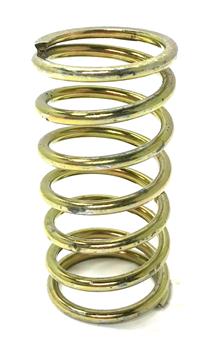

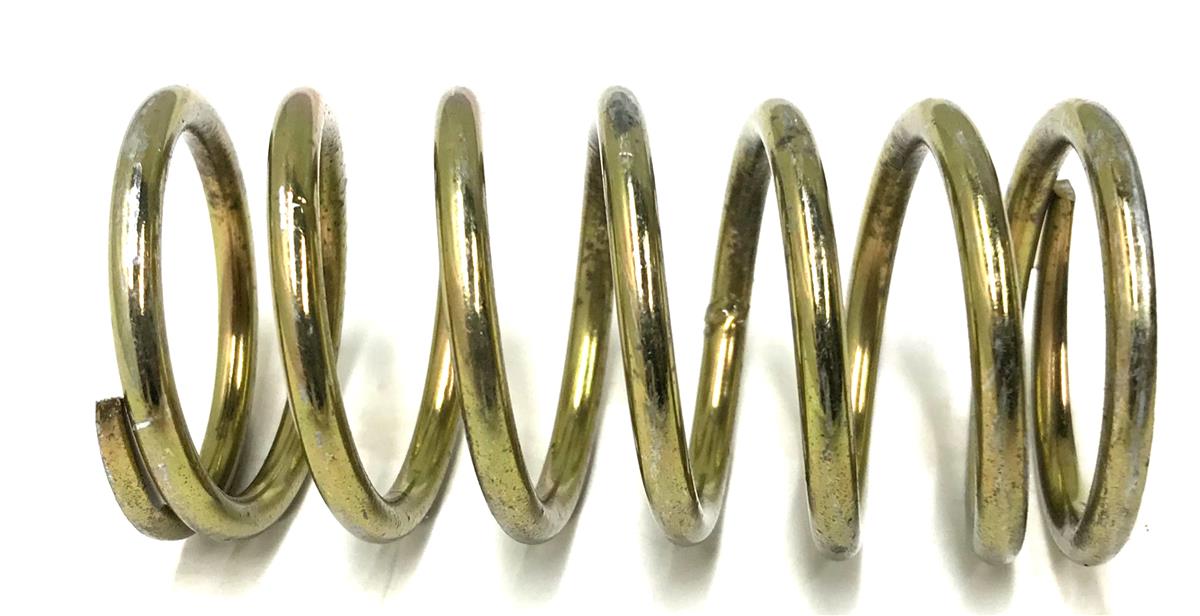

Hood Rod Helical Compression Spring HMMWV
Can Also be Used in Cargo Shell Assemblies

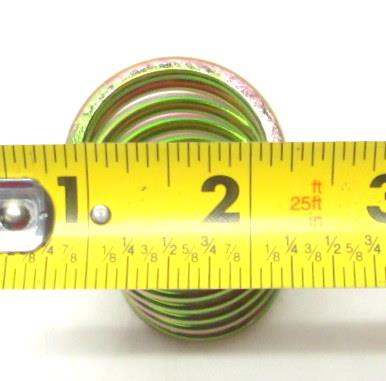

Inside Diameter 1.146 IN MIN 1.182 IN MAX

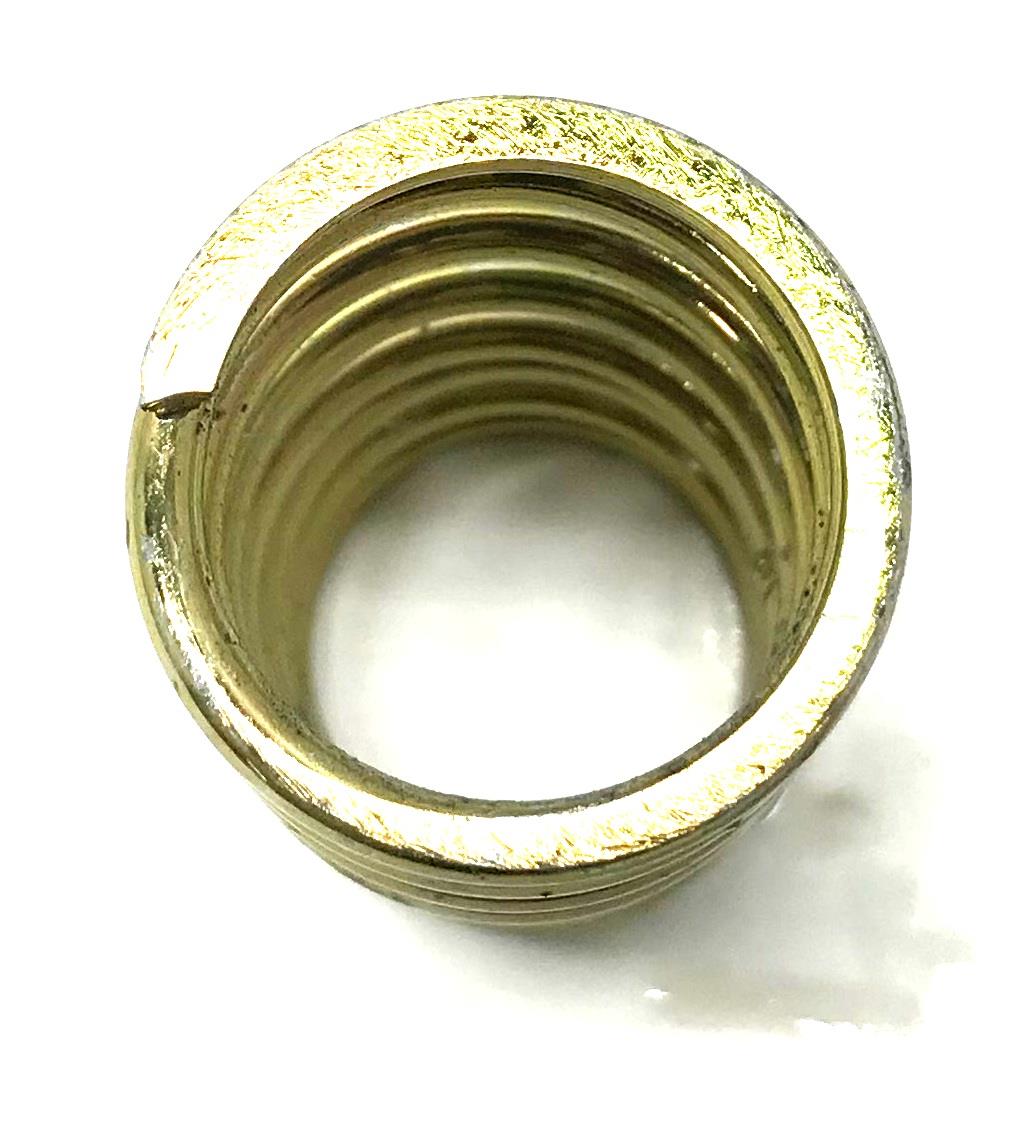

End Style Spring End, Squared and Ground Both Ends

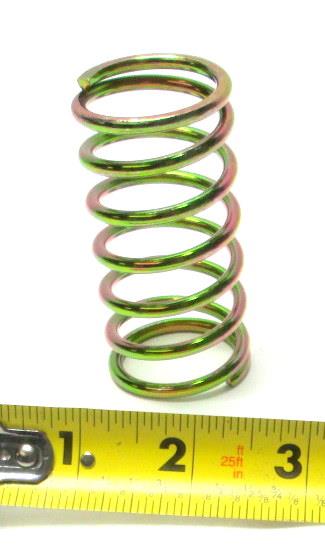

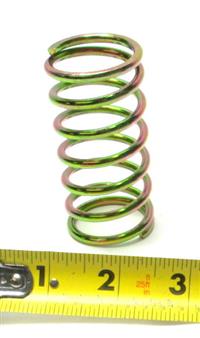

Spring Free Length 2.970 IN MIN 3.030 IN MAX
Coil QTY 7 3/4
Load Rating 60 Pounds
Spring Solid Length 1.117 IN MIN 1.177 IN MAX
Spring Solid Outside Diameter 1.440 IN MIN 1.480 IN MAX
Coil Helix Direction RH or LH
Spring Deflection Rate 54.000 Pounds per IN
Spring Free Outside Diameter 1.440 IN MIN 1.480 IN MAX
Spring Length Under Load 1.877 IN
Steel
Surface Treatment Zinc or Cadmium and Chromate

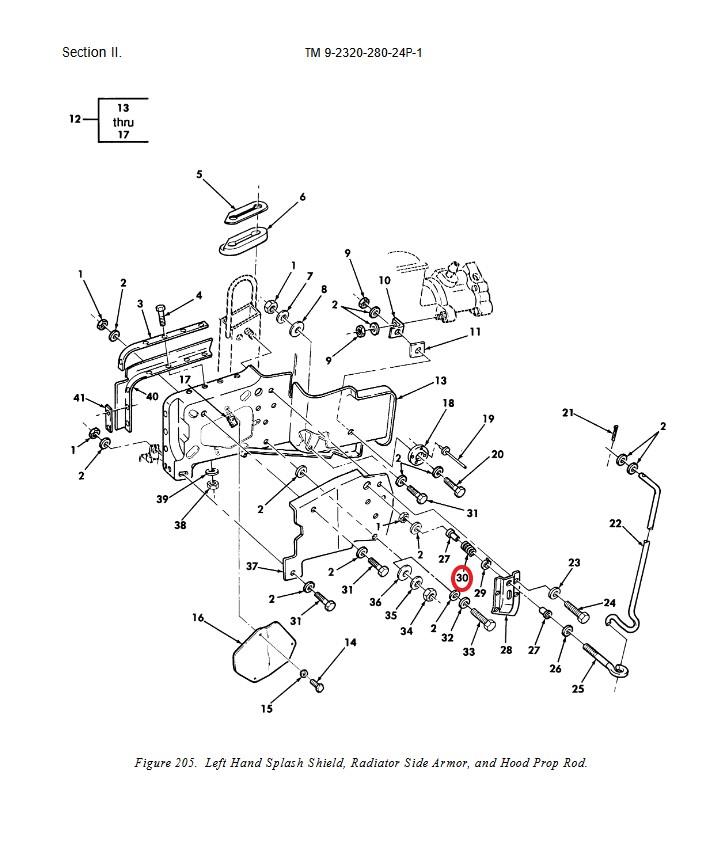

Item 30 in Diagram TM 9-2320-280-24P
Can Also be Used in Cargo Shell Assemblies

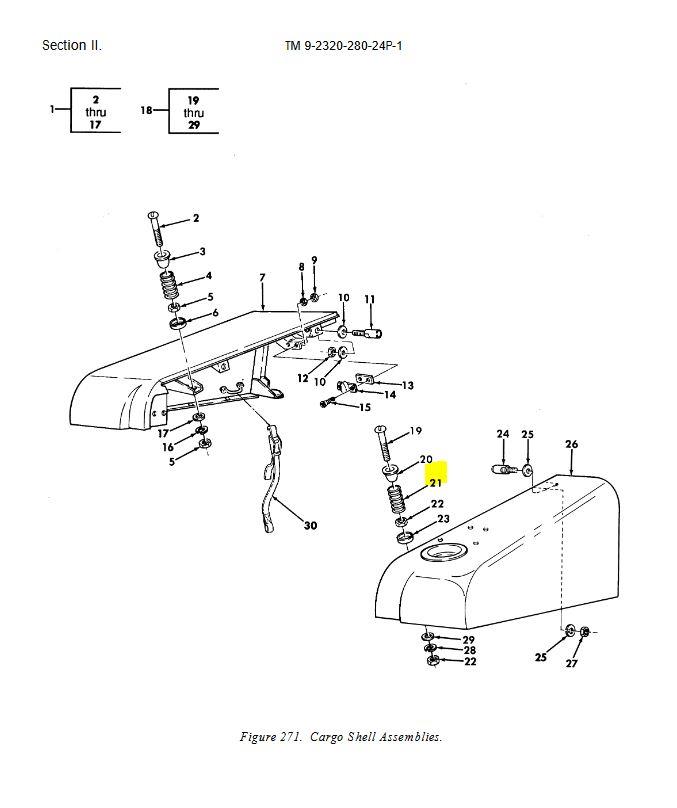

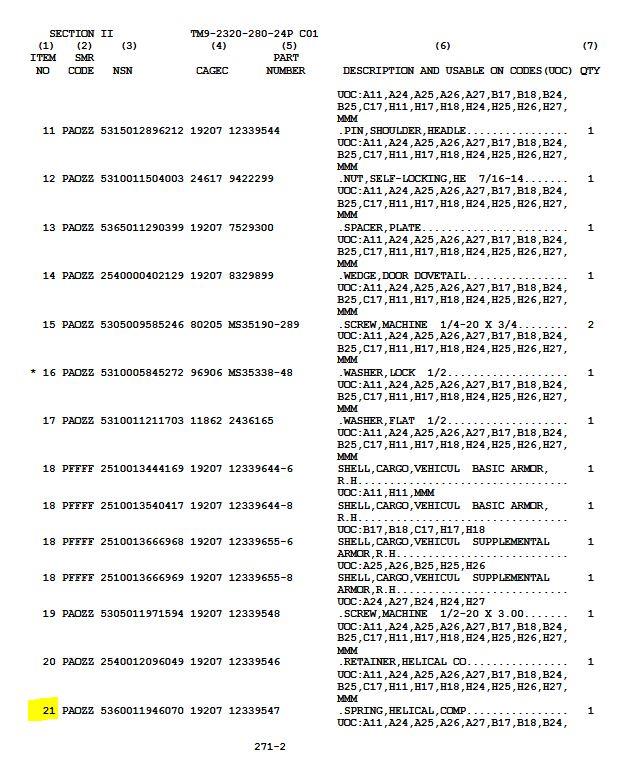

Item 21 in Diagram TM 9-2320-280-24P-1
Fits: HMMWV Models
M1025 M1025A1 M1025A2 M1026 M1026A1 M1035 M1035A1 M1035A2 M1037 M1038 M1038A1 M1042 M1043 M1043A1 M1043A2 M1044 M1044A1 M1045 M1045A1 M1045A2 M1046 M1046A1 M1097 M1097A1 M1097A2 M1121 M1123 M966 M966A1 M996 M996A1 M997 M997A1 M997A2 M998 M998A1 M1151 M1151A1 M1167
Hummer, Humvee hmmwv, hummer, hummvee, H1, AM General
Parts we offer for sale can be exported. Where necessary, required export approvals and licenses, U.S. Customs clearances and international / overseas shipping services are available.
We can provide container loads of parts, loaded and shipped from our facility.
